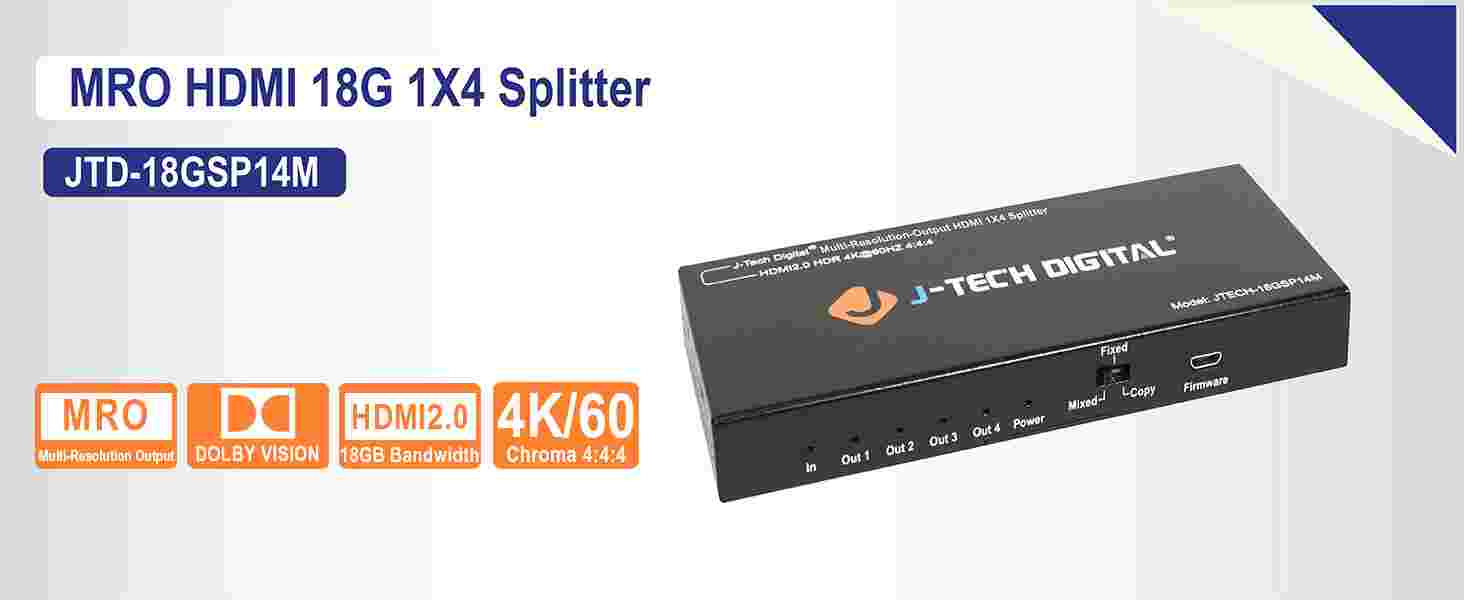

4K 60Hz 1x4 HDMI Splitter w/ Multi-Resolution Output (MRO) Function
-

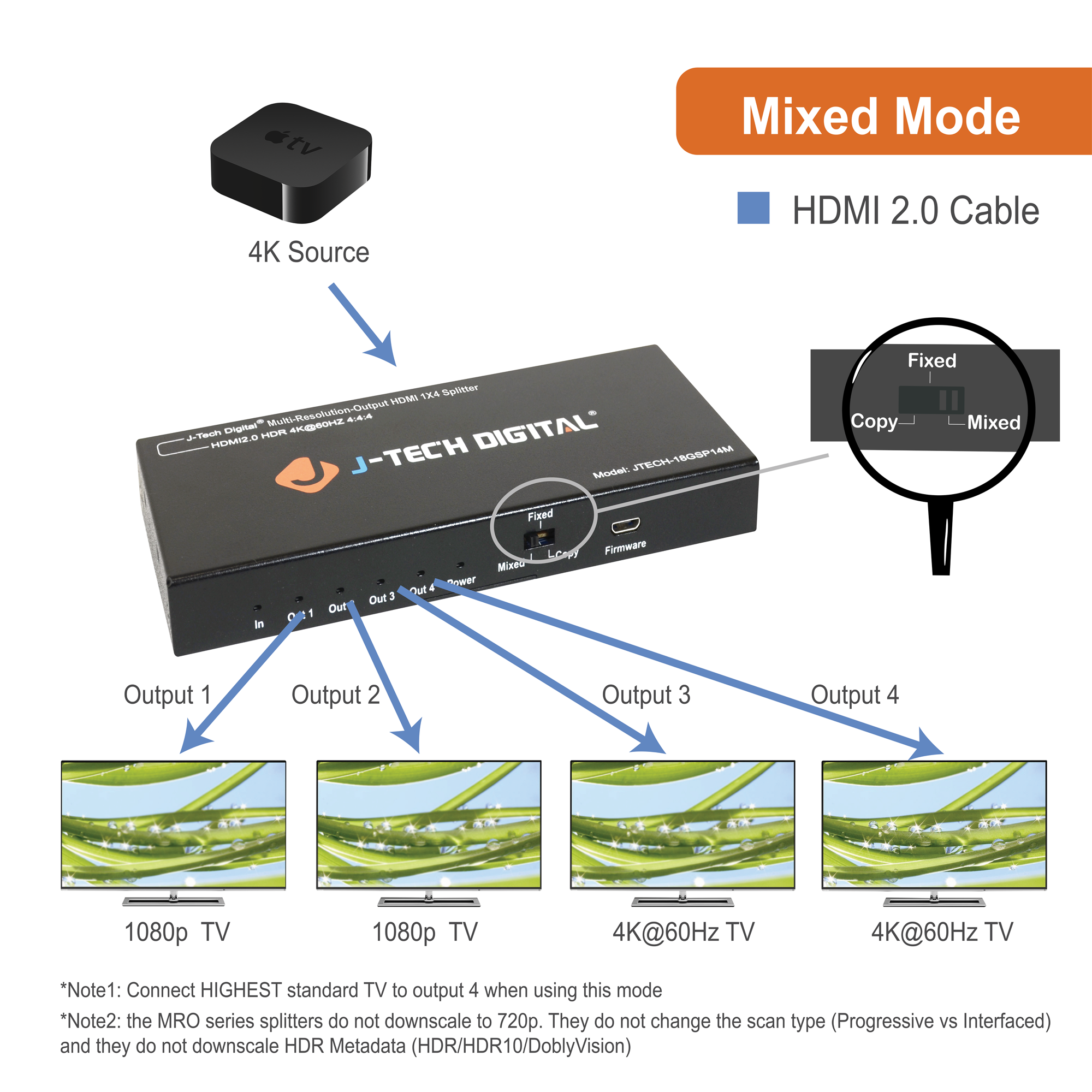

Mix Different Display Standards: This device is an MRO (Multi-Resolution Output) Splitter, and works as a scaler, supporting multiple or mixed resolutions, allowing for the combination of 1080P TVs with 4K@60Hz TVs
*Note: Connect HIGHEST Standard TV to Output 4 and set EDID to “Mixed” mode to use the MRO/Scaler function -

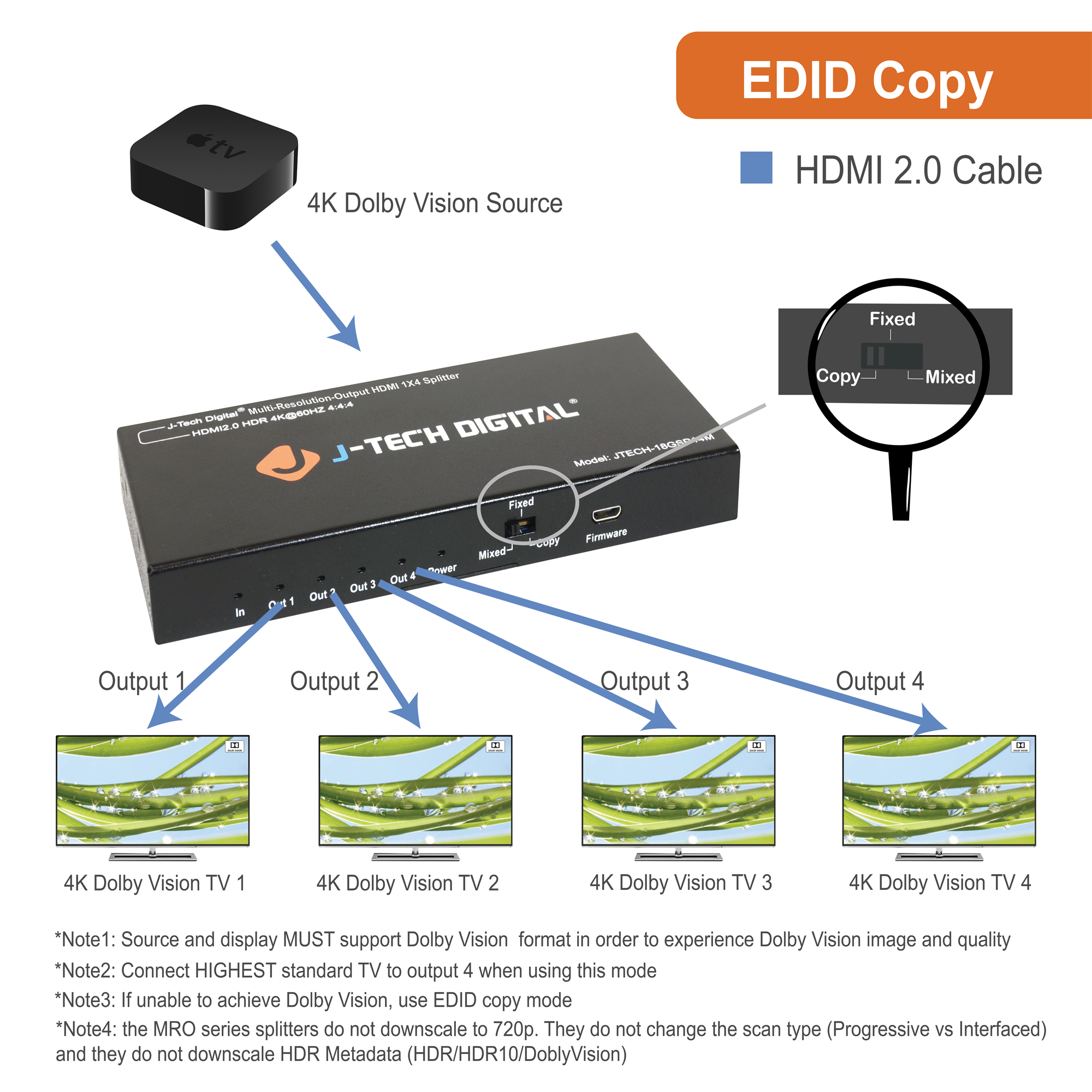

HDMI 2.0 & EDID Copy Abilities: This MRO splitter supports 18Gbps bandwidth, HDR10 and Dolby Vision. It is compatible with 4K@60Hz 4:4:4 as well as 1080p. NOTE: Source Devices and all connected TVs MUST support Dolby Vision/HDR10 in order to experience the quality and image that Dolby Vision/HDR10 offer
-
1 Input to 4 Displays: This device distributes 1 HDMI signal to 2 HD displays simultaneously and is compatible with devices such as a PS4 Pro, Xbox One S, Roku 4, 4K Apple TV, Set-Top-Box, Blu-ray player and more
-
High Definition Audio Support: This splitter will pass HD audio formats from your source, such as: PCM, LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
Information
- Brand
- J-Tech Digital
- MPN
- JTD-365
- Model
- JTECH-18GSP14M
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support

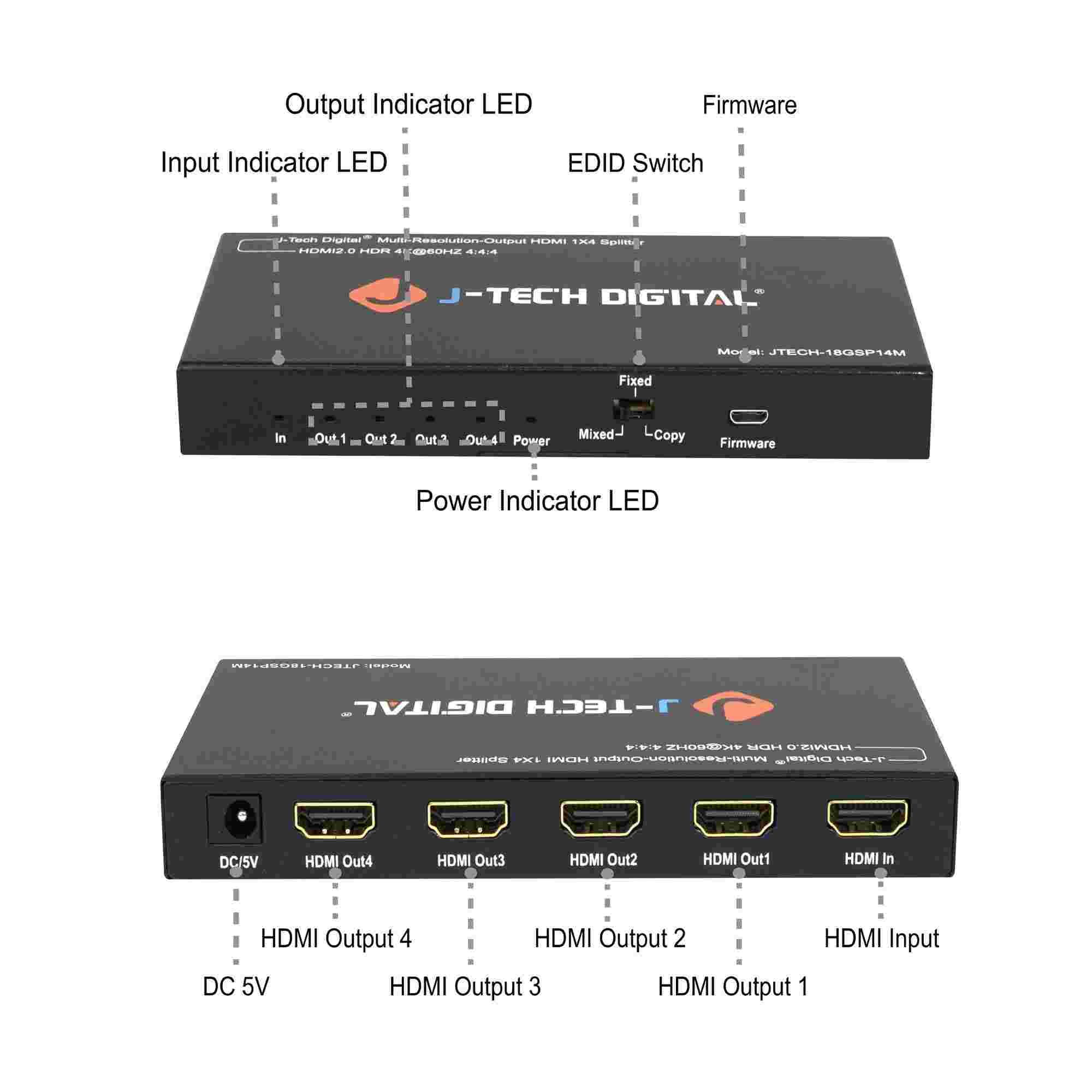

Specifications
- HDMI Input
- 1
- HDMI Output
- 4
- Resolution
- 4K@60Hz 4:4:4 1080i/1080p 720i/720p 576i/576p
- Video Standard
- HDMI 2.0 HDMI 1.4; HDCP 2.2 HDCP 1.4
- HDR
- HDR10 and Dolby Vision
- Color space
- 36-bit Deep Color
- Audio Formats
- PCM, LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
- Upgrade
- Can support firmware upgrades via Micro USB Port
- Note
- Connect the HIGHEST Standard TV to Output 4 and set EDID to “Mixed” mode to use the MRO/Scaler function.
- Power Supply
- 5V/1A DC
- Connector Gender
- Male-to-Male
- Connector Type
- HDMI
- Net Weight
- 1.15 pounds

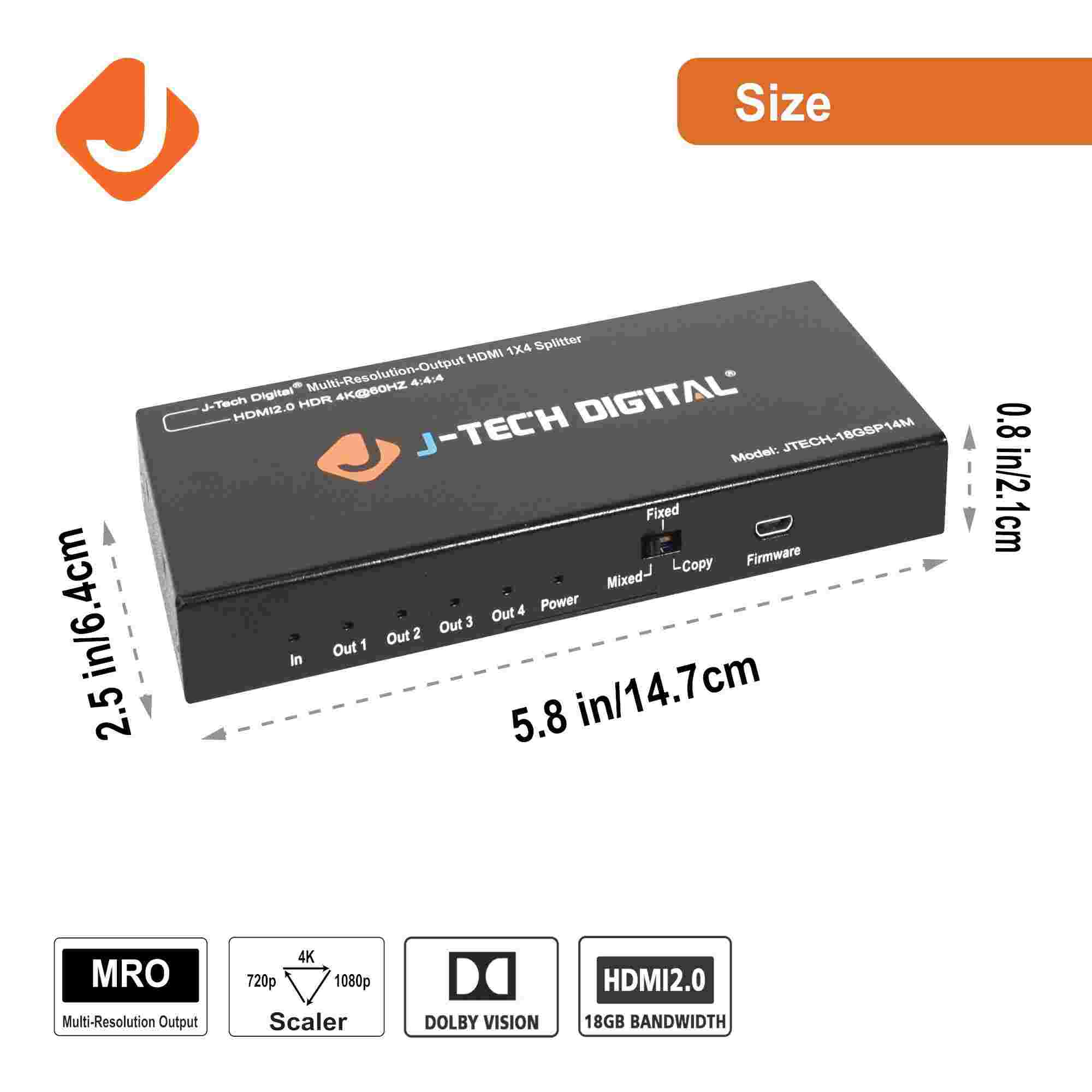

- Dimensions(W x H x D)
- 8.82 x 7.52 x 2.4 inches

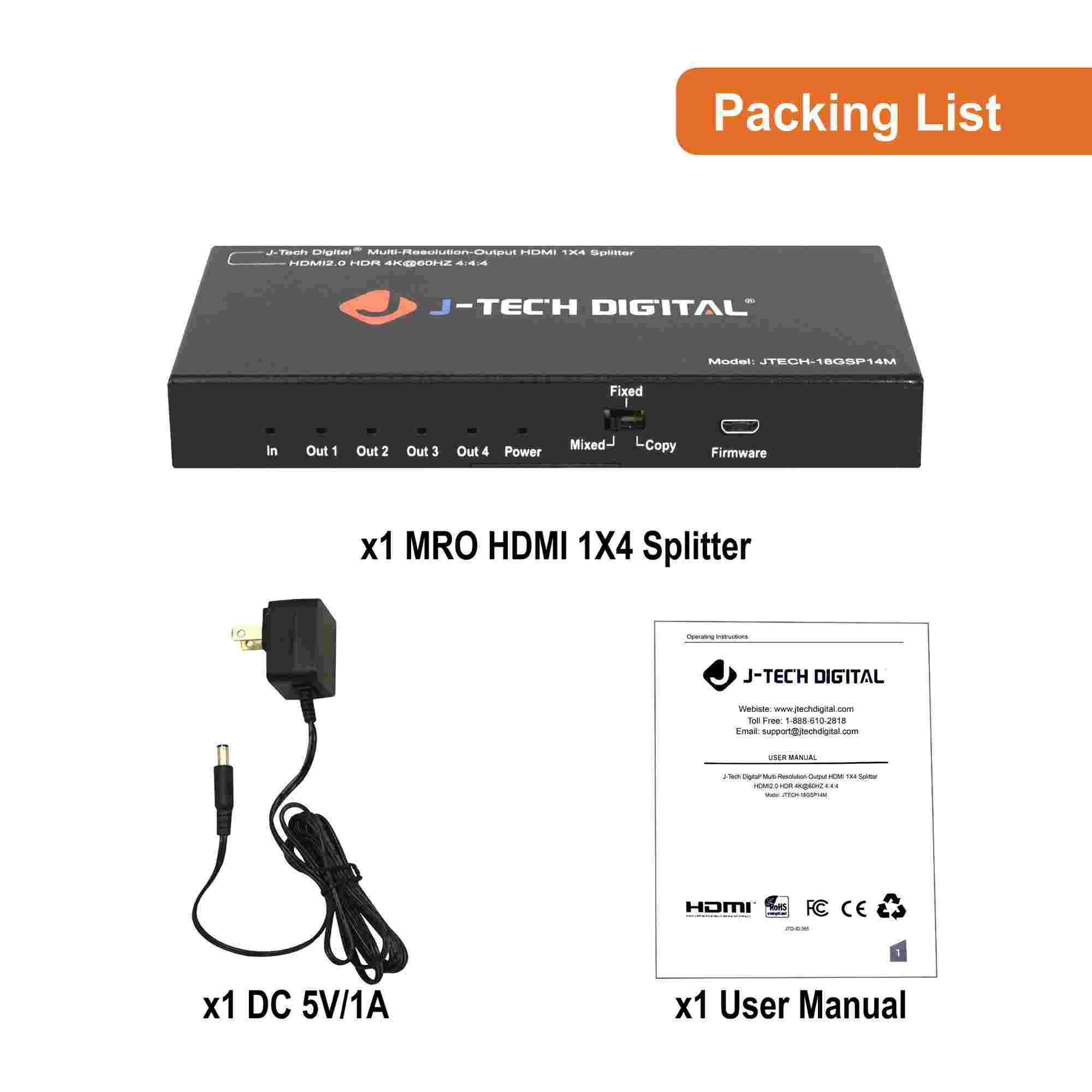

What's in the box
- 1 x JTECH-18GSP14M 1×4 HDMI 2.0 Splitter
- 1 x 5V/1A DC Adapter
- 1 x User Manual
Frequently asked questions
Resources
File | Version |
---|---|
User Manual | 1.0 |
