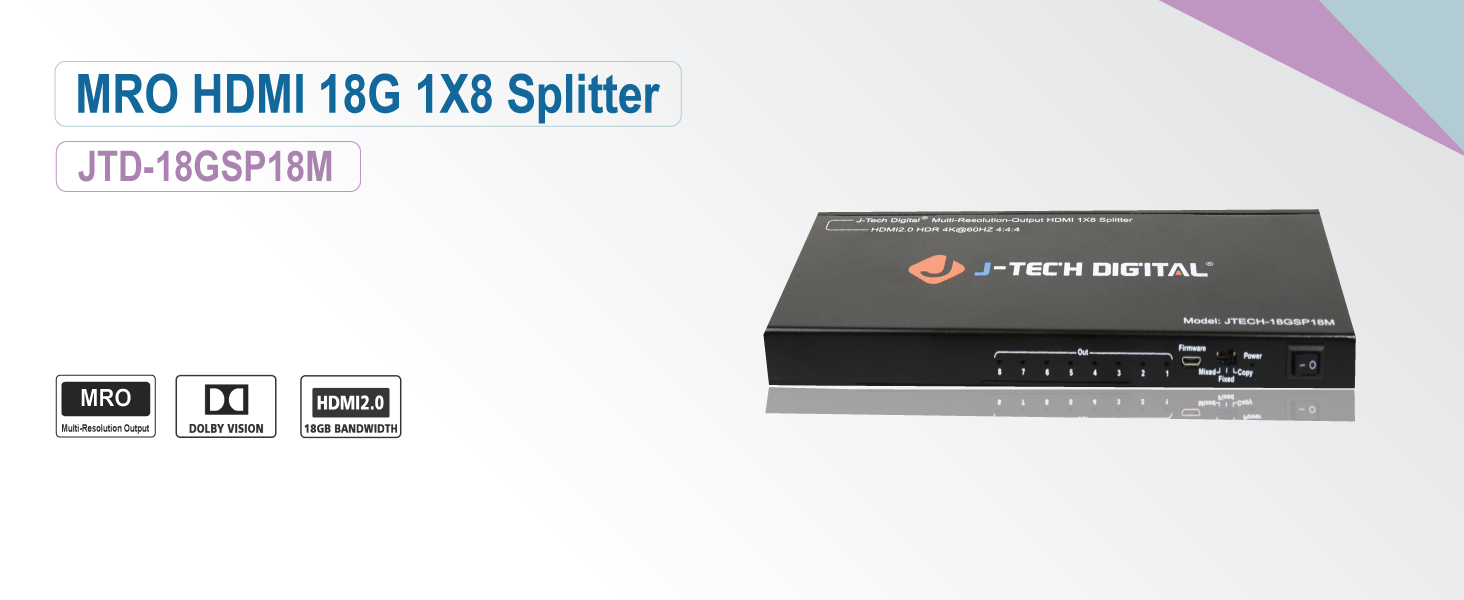

4K 60Hz 1x8 HDMI Splitter w/ Multi-Resolution Output (MRO) Function
-

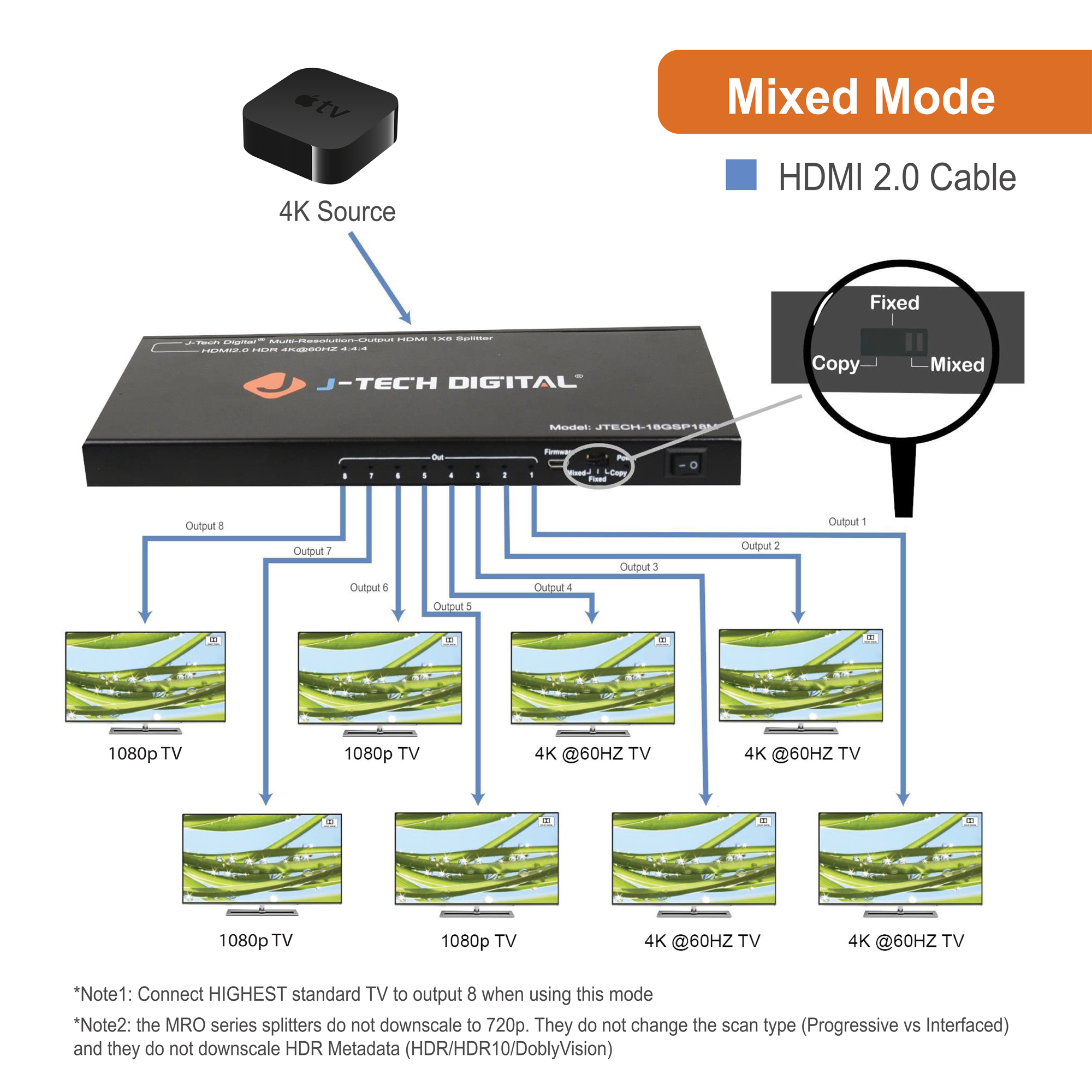

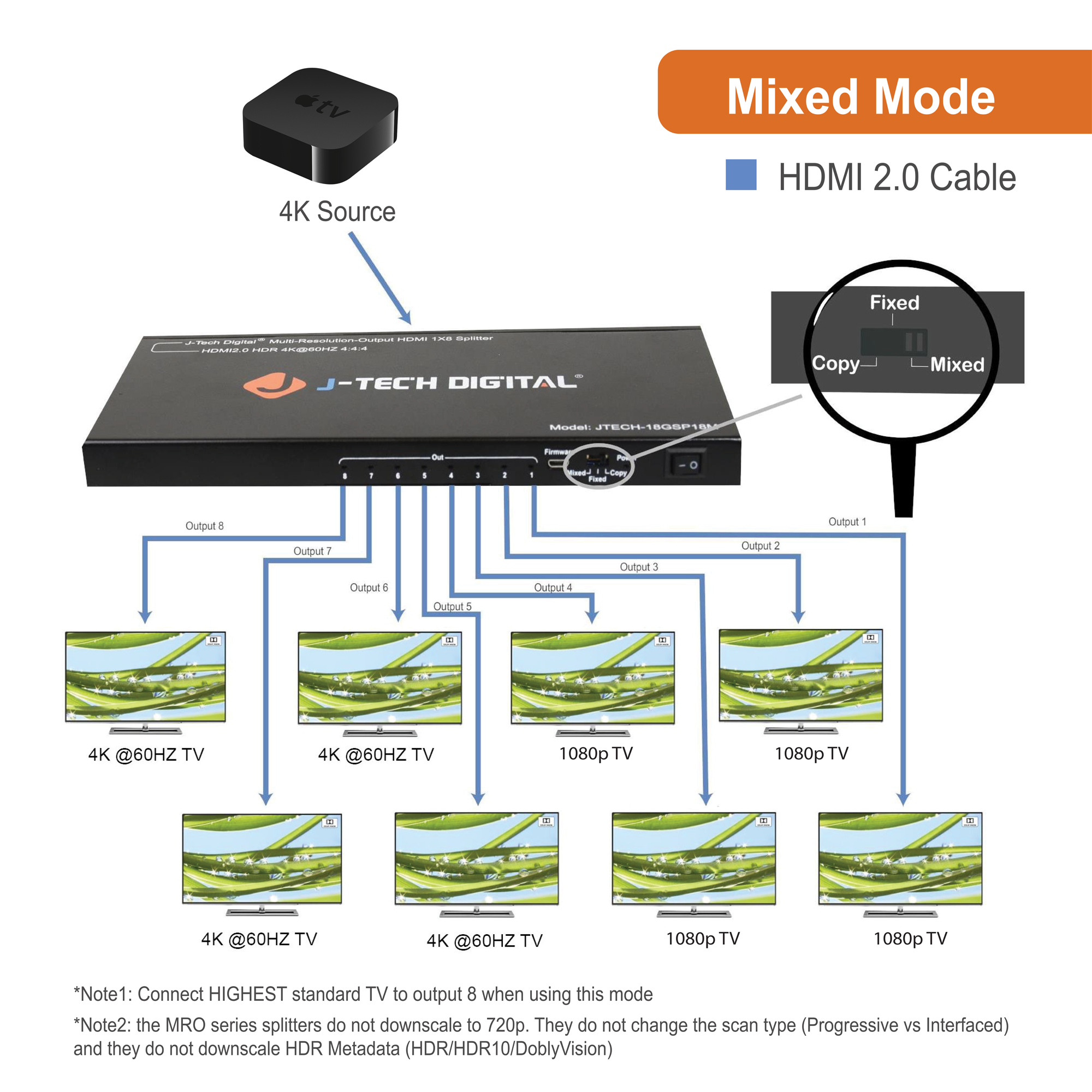

Mix Different Display Standards: This device is an MRO (Multi-Resolution Output) Splitter, and works as a scaler, supporting multiple or mixed resolutions, allowing for the combination of 1080P TVs with 4K@60Hz TVs

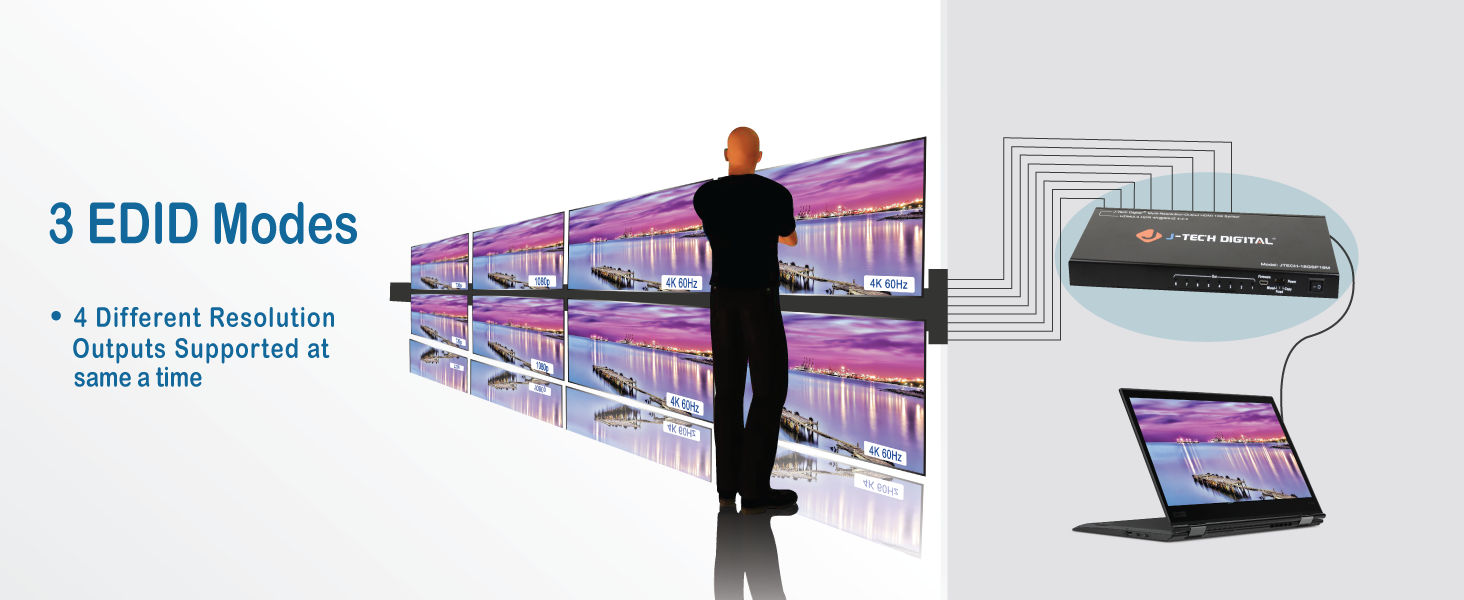

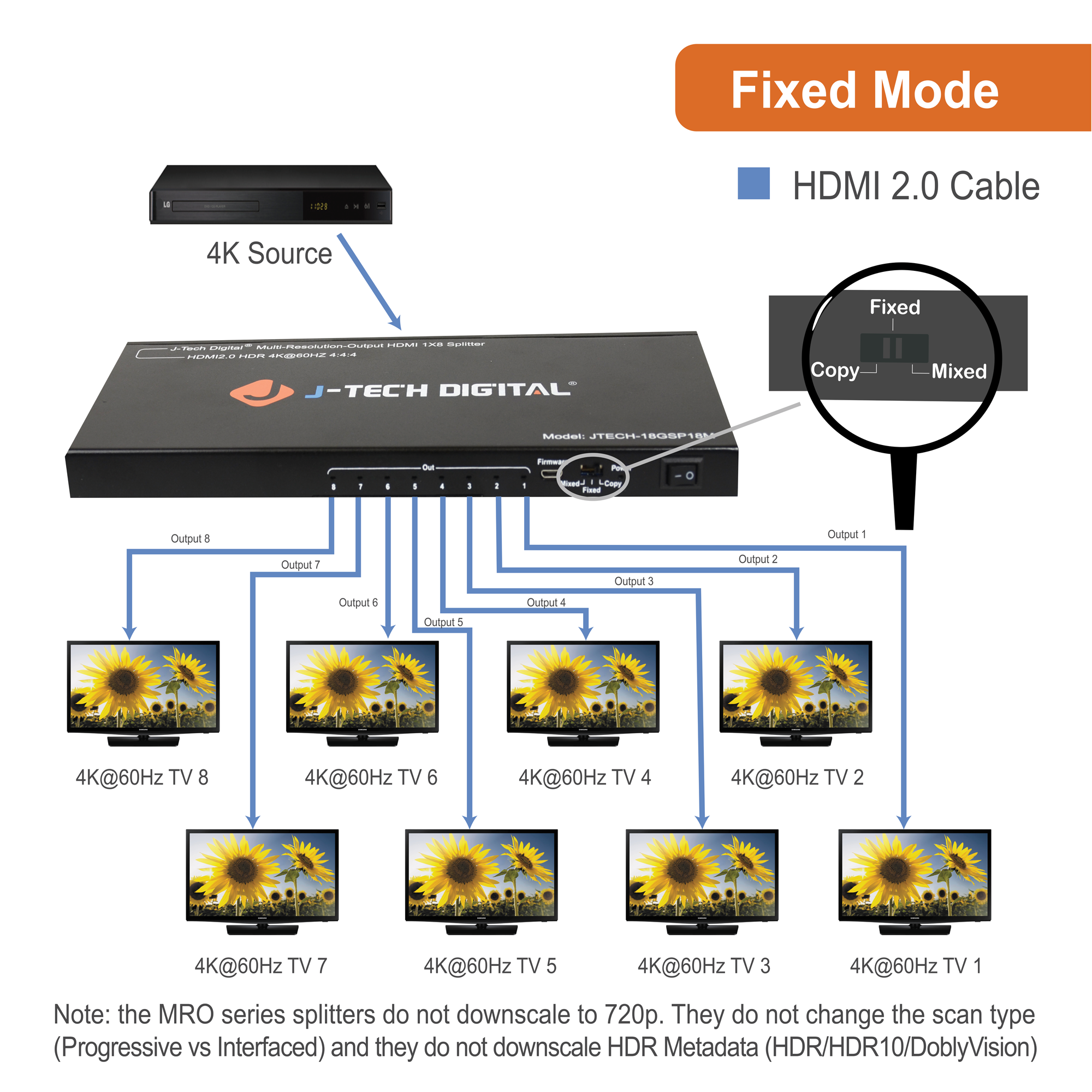

*Note: Connect HIGHEST Standard TV to Output 8 and set EDID to “Mixed” mode to use the MRO/Scaler function -
HDMI 2.0 & EDID Copy Abilities: This MRO splitter supports 18Gbps bandwidth, HDR10 and Dolby Vision. It is compatible with 4K@60Hz 4:4:4 as well as 1080p. NOTE: Source Devices and all connected TVs MUST support Dolby Vision/HDR10 in order to experience the quality and image that Dolby Vision/HDR10 offer
-

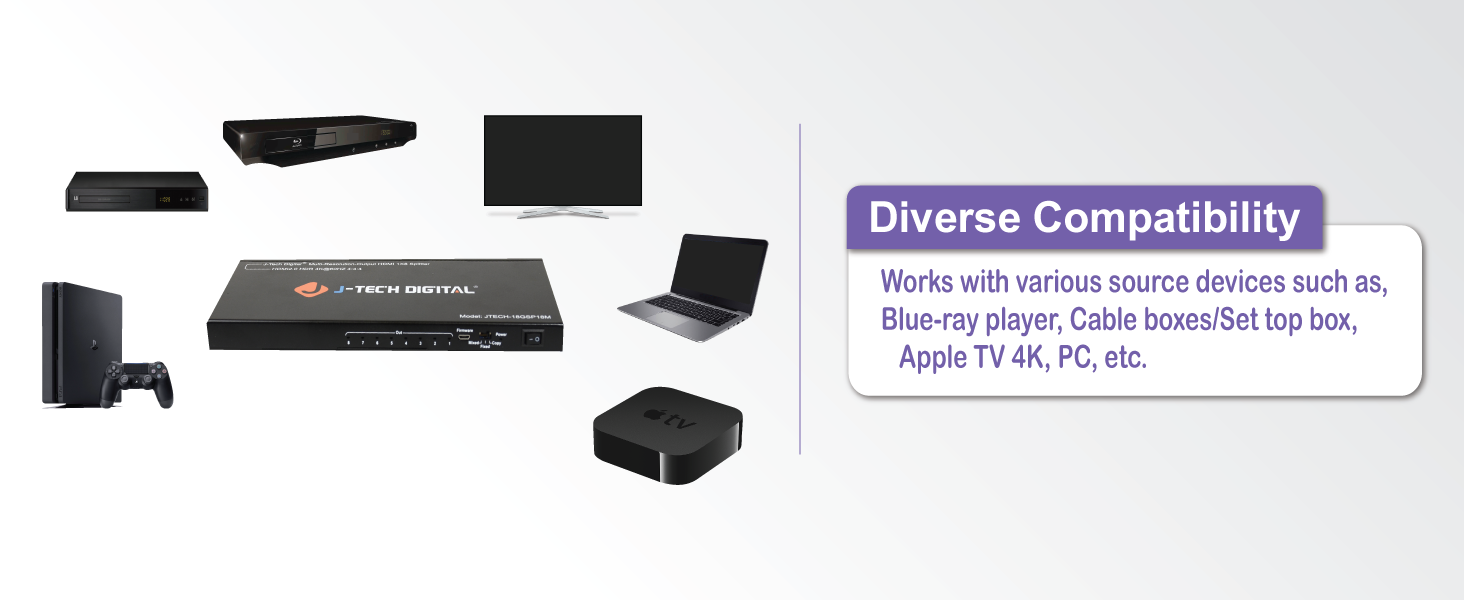

1 Input to 8 Displays: This device distributes 1 HDMI signal to 2 HD displays simultaneously and is compatible with devices such as a PS4 Pro, Xbox One S, Roku 4, 4K Apple TV, Set-Top-Box, Blu-ray player and more
-
High Definition Audio Support: This splitter will pass HD audio formats from your source, such as: PCM, LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
Information
- Brand
- J-Tech Digital
- MPN
- JTD-366
- Model
- JTECH-18GSP18M
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Specifications

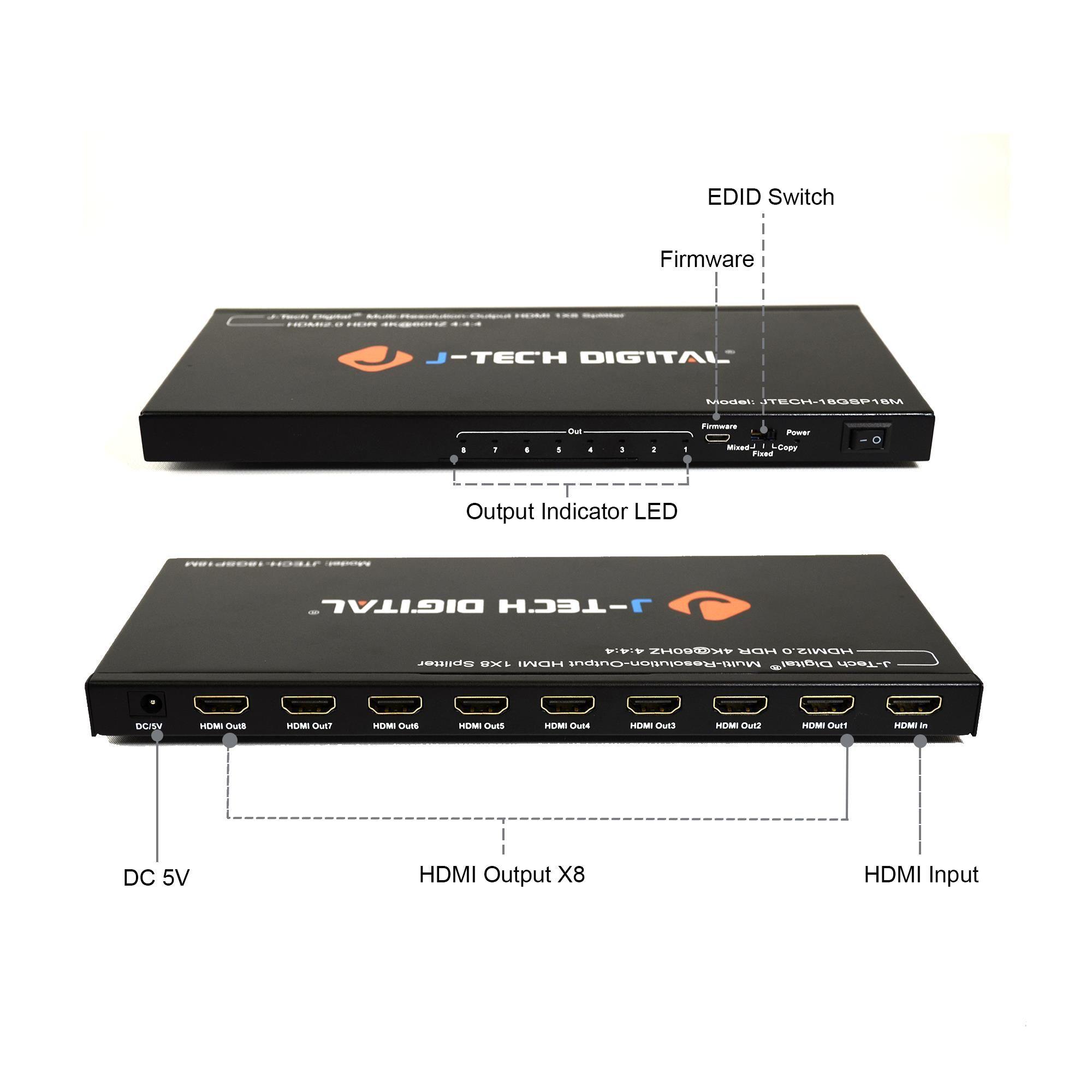

- Ports
- 1 x HDMI Input, 8 x HDMI Outputs
- Resolution
- Up to 4K 60Hz YUV 4:4:4
- Video Protocols
- HDMI 2.0, HDCP 2.2
- Bandwidth
- 18Gbps
- Transmission Distance
- 49ft. over standard HDMI 26AWG cable
- Operating Temperature
- 23°F ~ 104°F
- Humidity Range
- 5 - 90% RH (No Condensation)

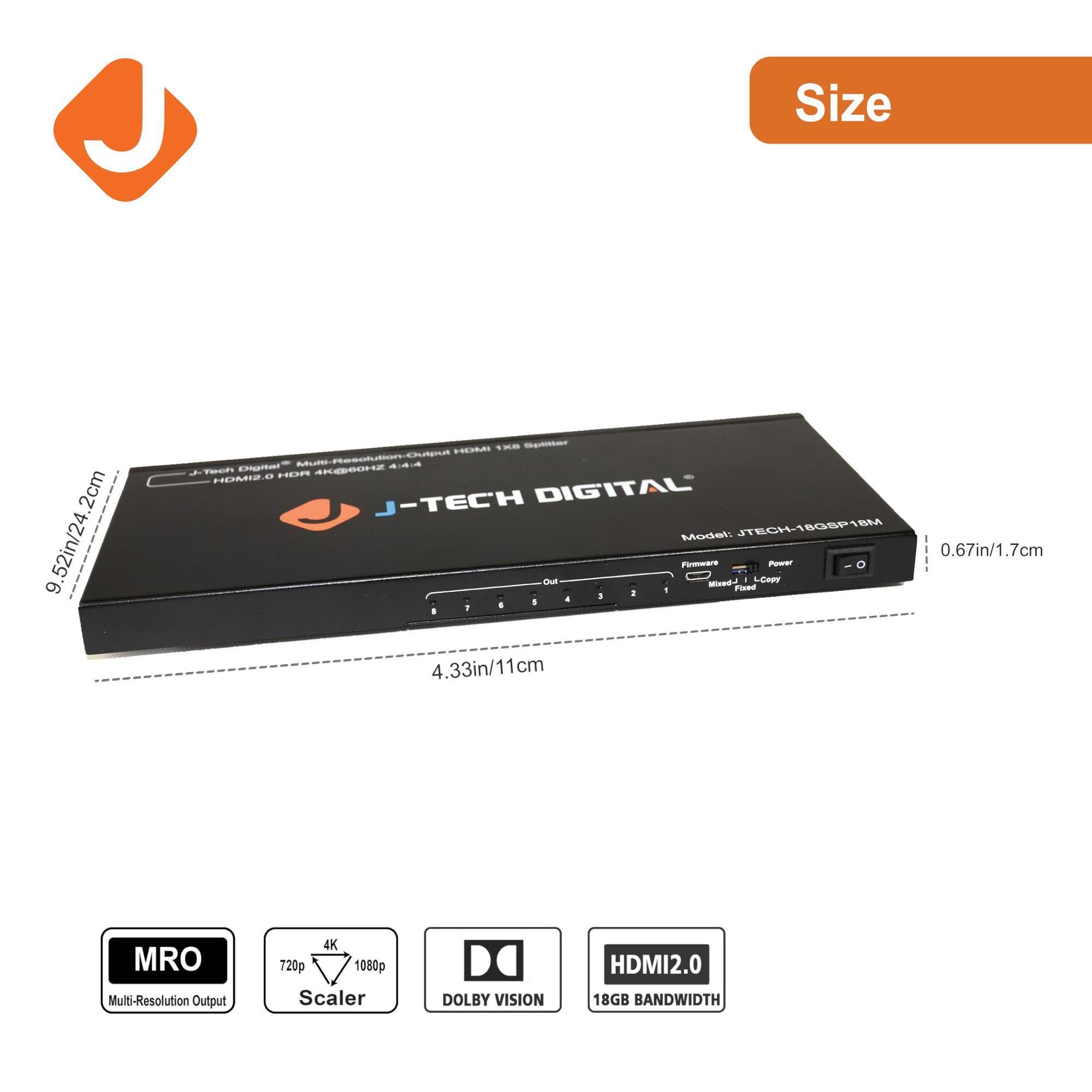

- Dimensions
- 247.2mm x 110mm x 17mm, 9.73" x 4.33" x 0.67"
- Weight
- 1.34lbs
- Power Consumption
- 5W (Max)

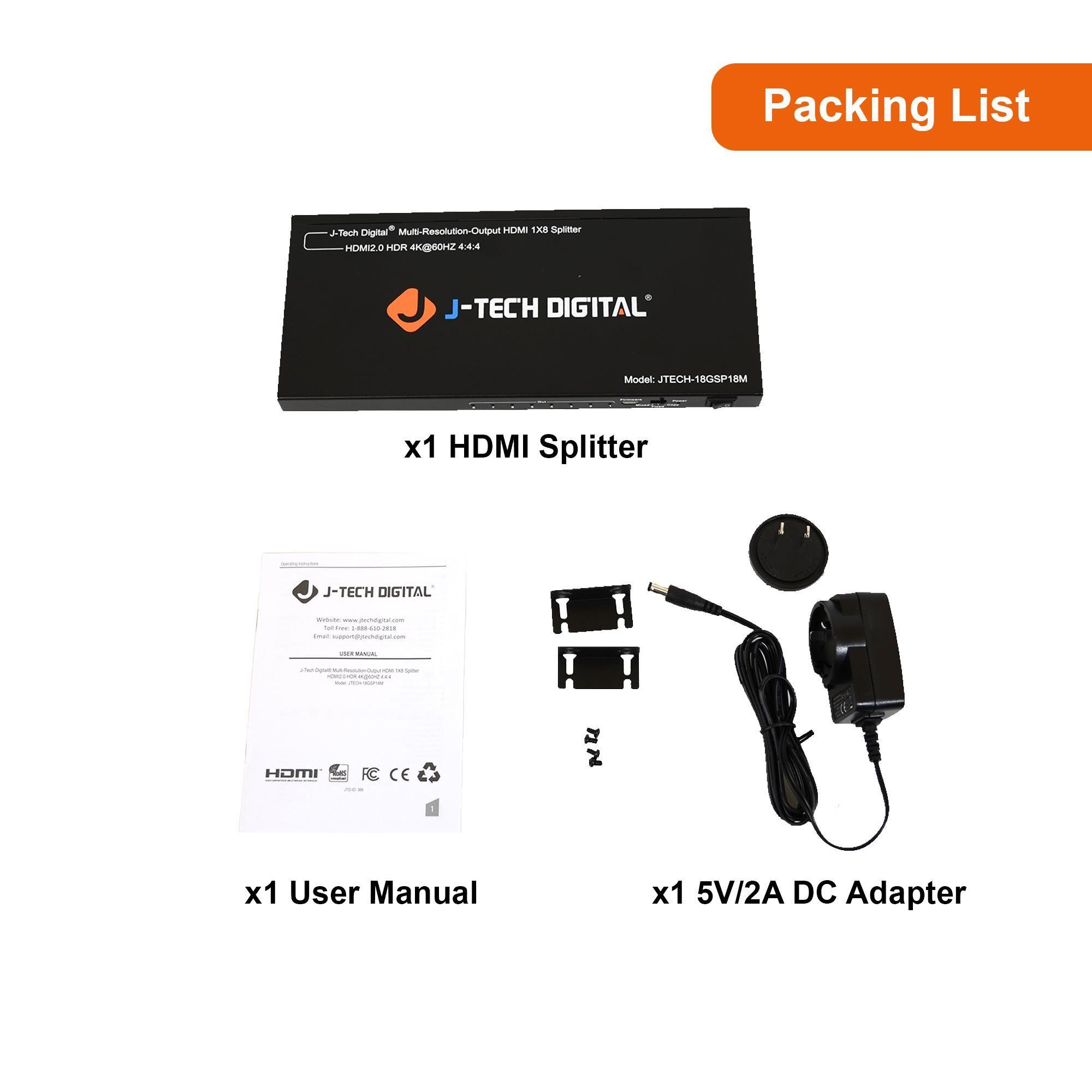

What's in the box
- 1 x HDMI Splitter
- 1 x 5V/2A DC Adapter
- 1 x User Manual
Frequently asked questions
Resources
File | Version |
---|---|
User Manual | 1.0 |
Control 4 | 3.0 |
