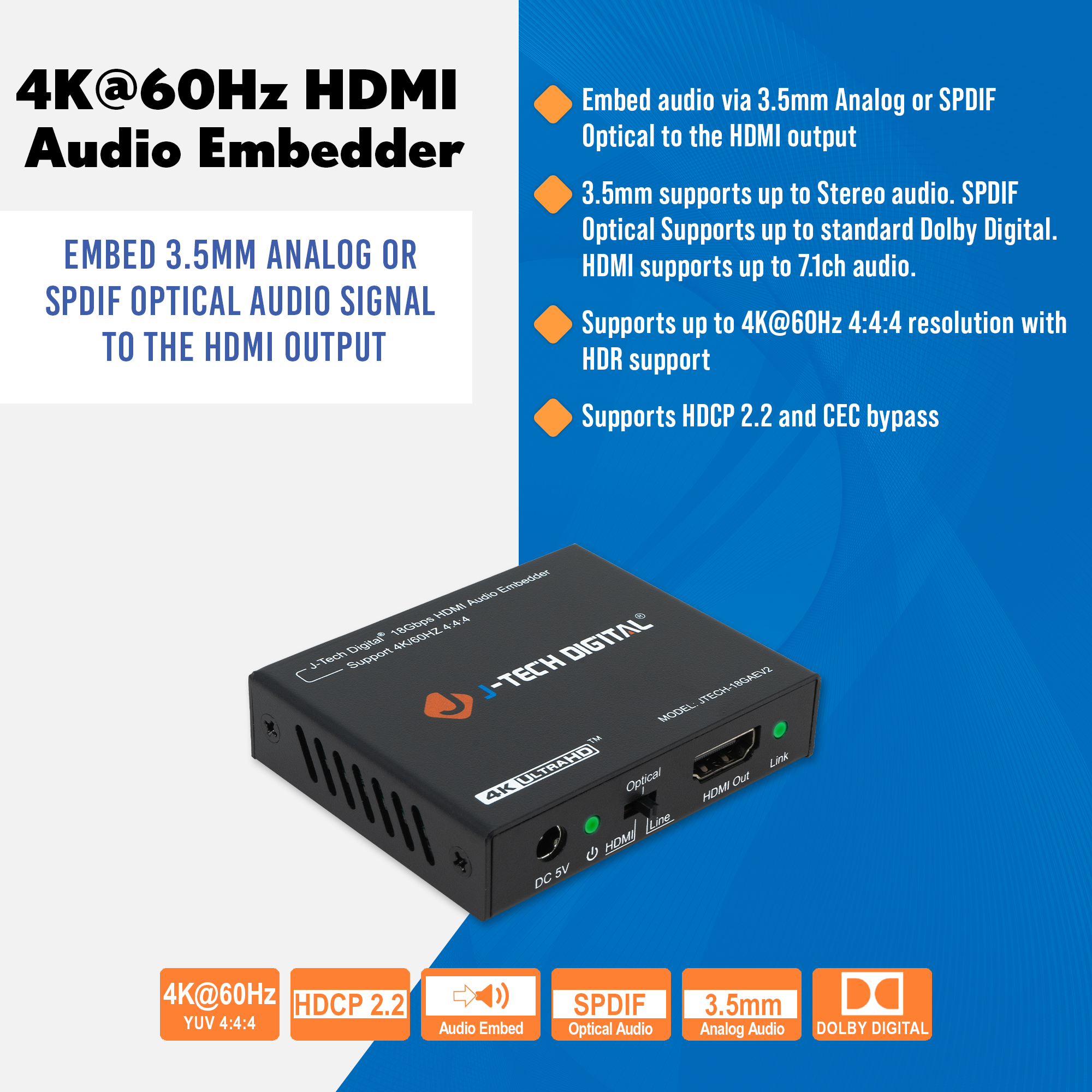

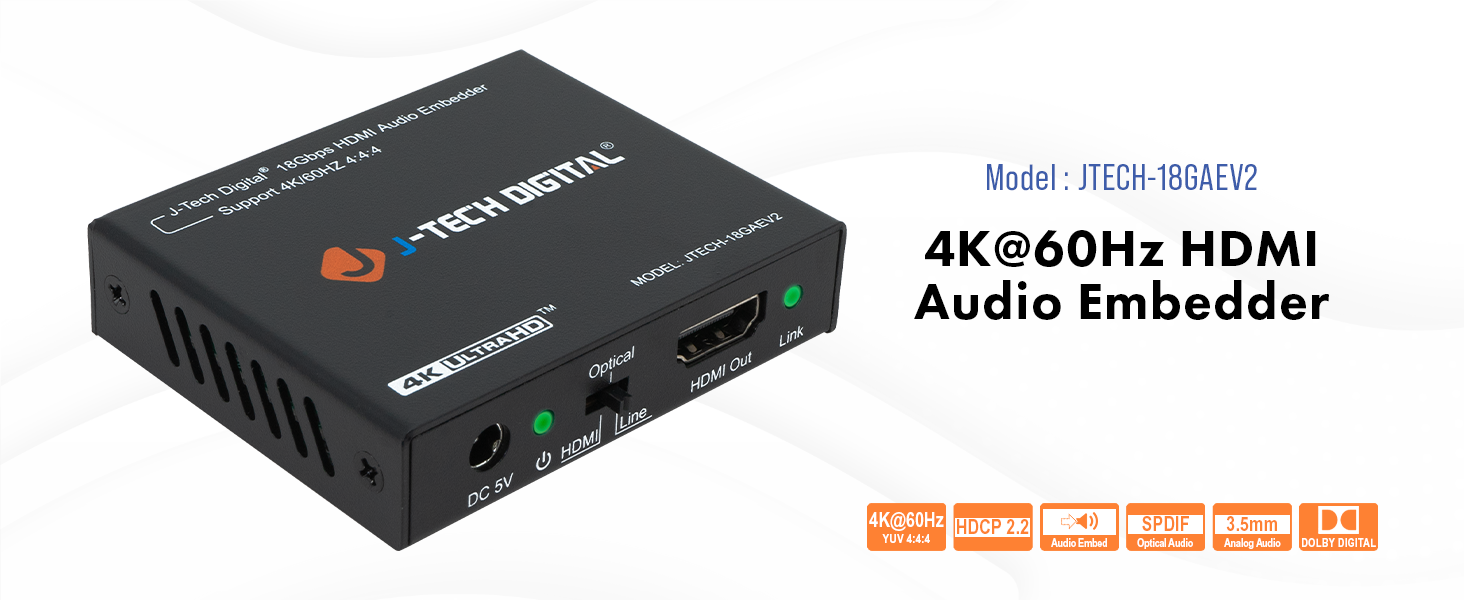

4K 60Hz 4:4:4 HDMI Digital / Analog Audio Embedder

$45.99

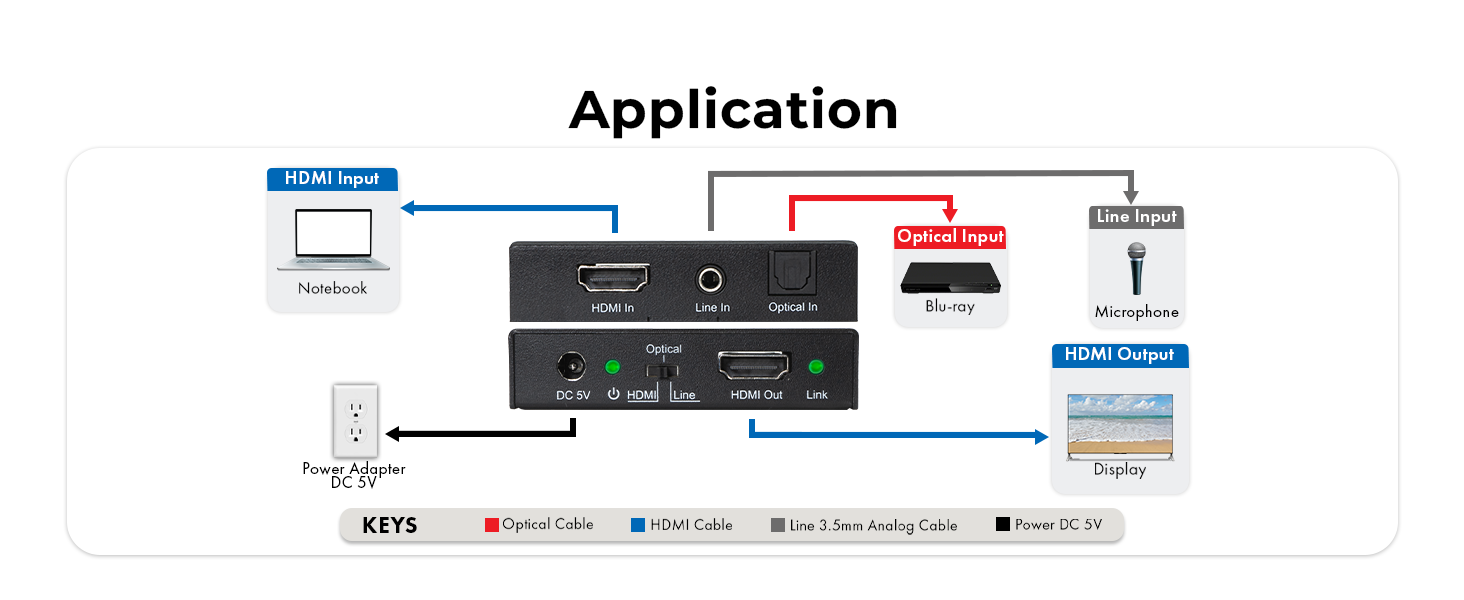

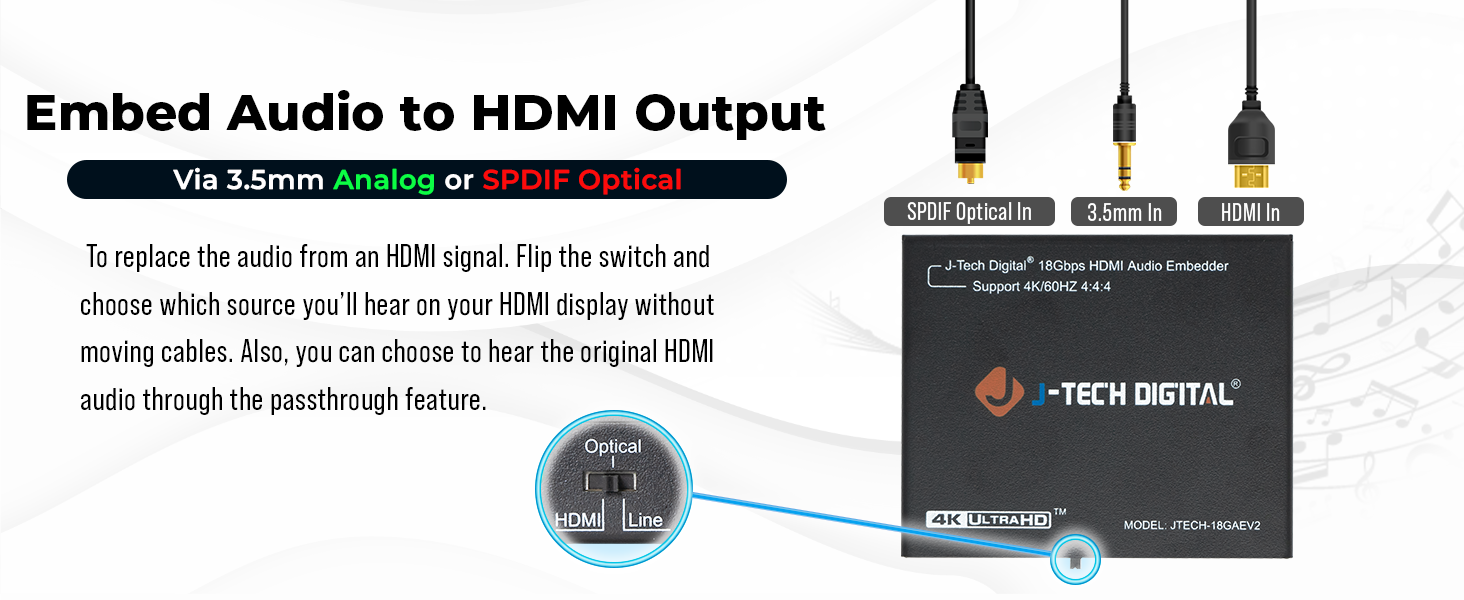

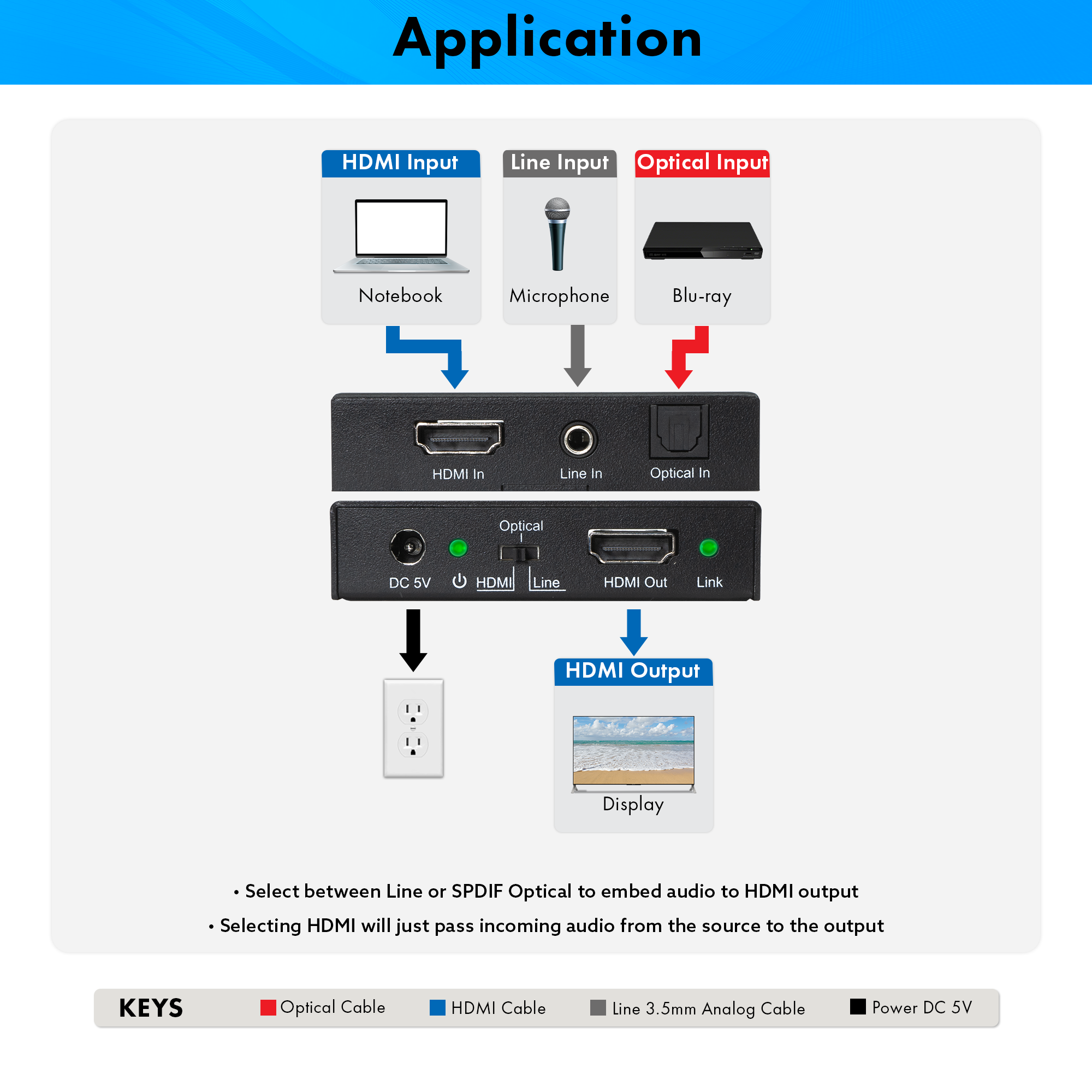

Audio Embedding Function: Use external audio from either digital (Toslink / SPDIF) or analog (3.5mm/line) sources to replace the audio from an HDMI signal
- Use the toggle switch to choose which source you’ll hear on your HDMI display without moving cables. Also, you can choose to hear the original HDMI audio through the pass-through feature
UHD Resolution Support: Resolution up to 18GBPS 4K@60Hz 4:4:4. Also supports 1080p and 720p
HDMI 2.0 & HDCP 2.2 Compliant: Supports 10-bit HDR and Dolby Vision. HDCP 2.2 / 1.4 compliant. Features CEC pass-through
Audio Format Support:
- The HDMI port will pass-through all digital/analog audio such as PCM, LPCM, Dolby (Digital, Digital+, TrueHD, Atmos), and DTS
- Optical audio input supports Dolby Digital and PCM
- 3.5mm audio input supports 2 channel stereo audio like PCM

Information

Benefits

Specifications

Video

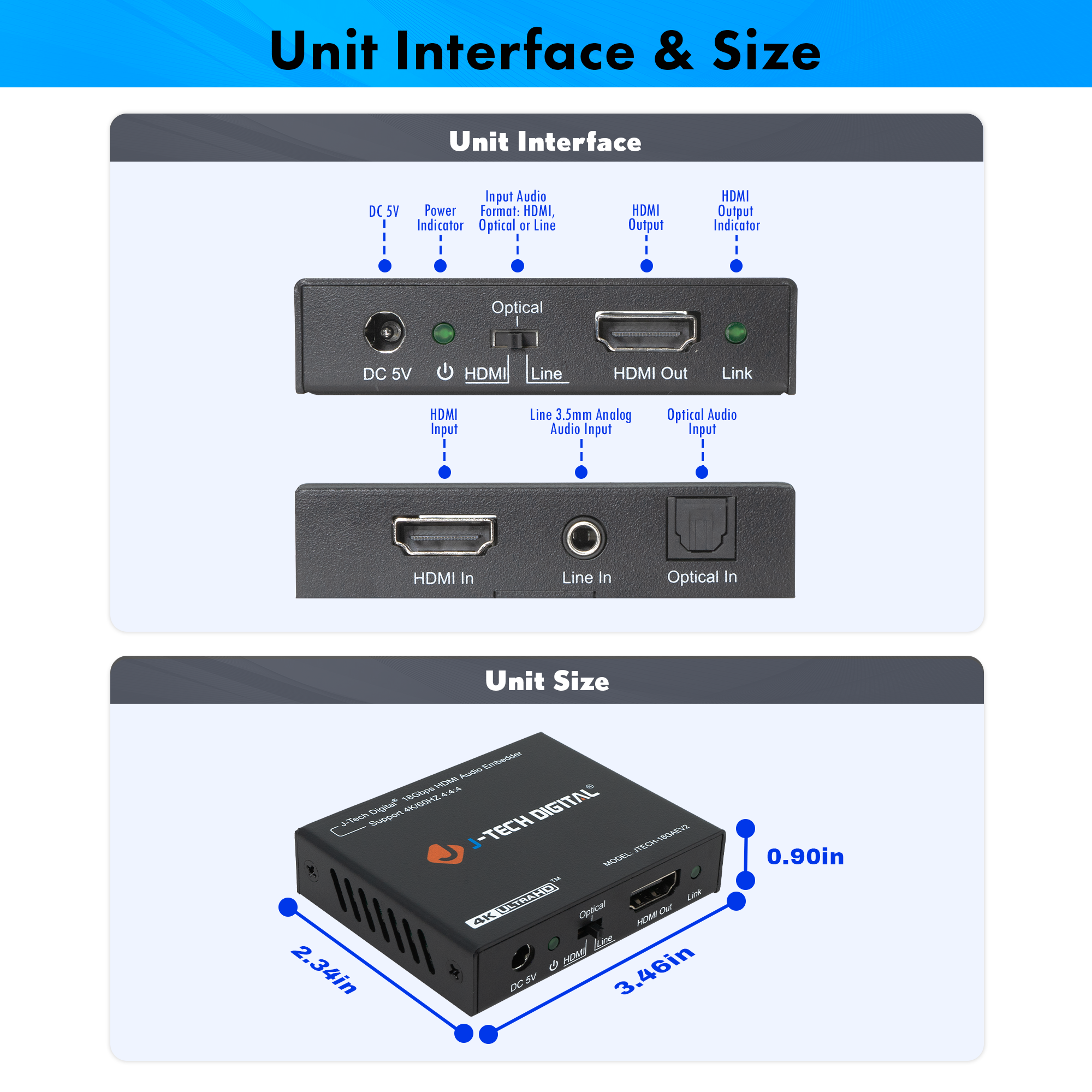

Inputs: 1 x HDMI Type A [19-pin female], 1 x Line In [3.5mm Stereo Mini-jack], 1 x Optical In [S/PDIF]
Outputs: 1 x HDMI Type A [19-pin female]
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2 and HDCP 1.4
Bandwidth: 18Gbps
Resolutions: Up to 4K @ 50/60Hz (YUV 4:4:4)
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:0
Color Depth: 10-bit, 12-bit

Audio

HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats: LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
L/R Audio Formats: Analog Stereo 2CH

General

Housing: Metal Enclosure
Color: Black
Dimensions: 73.5mm [W] x 60.7mm [D] x 17mm [H]
Weight: 122g
Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A, (US/EU standards, CE/FCC/UL certified)
Power Consumption: 1.25W
Operation Temperature: 32 - 104°F / 0 - 40°C
Storage temperature: -4 - 140°F / -20 - 60°C
Relative Humidity: 20 - 90% RH (no condensation)

File	Version
User Manual	1.0
