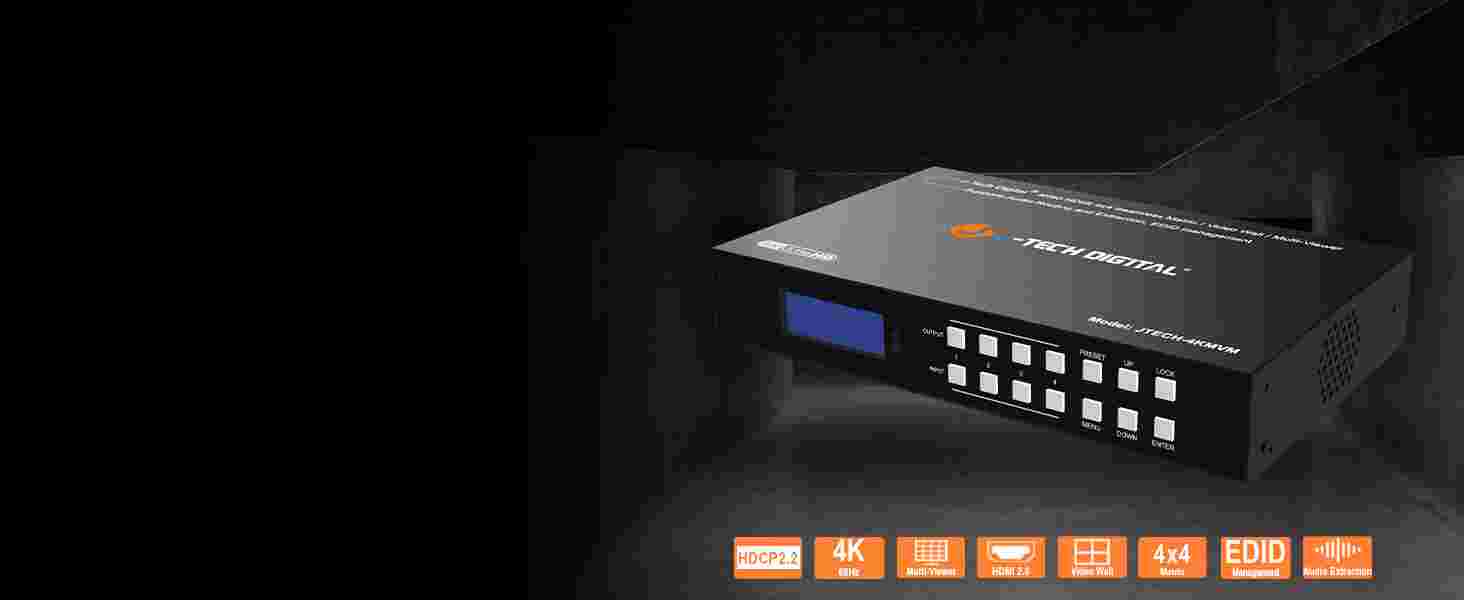

4K 60Hz 4x4 Seamless HDMI Matrix, Video Wall Controller, Multiviewer

$899.95
  • 4K@60Hz 4x4 Seamless HDMI Matrix - Easily manage 4 HDMI inputs and independently route them to 4 different HDMI outputs without any switching delays or picture loss during transitions. Supports up to 4K@60Hz resolution.

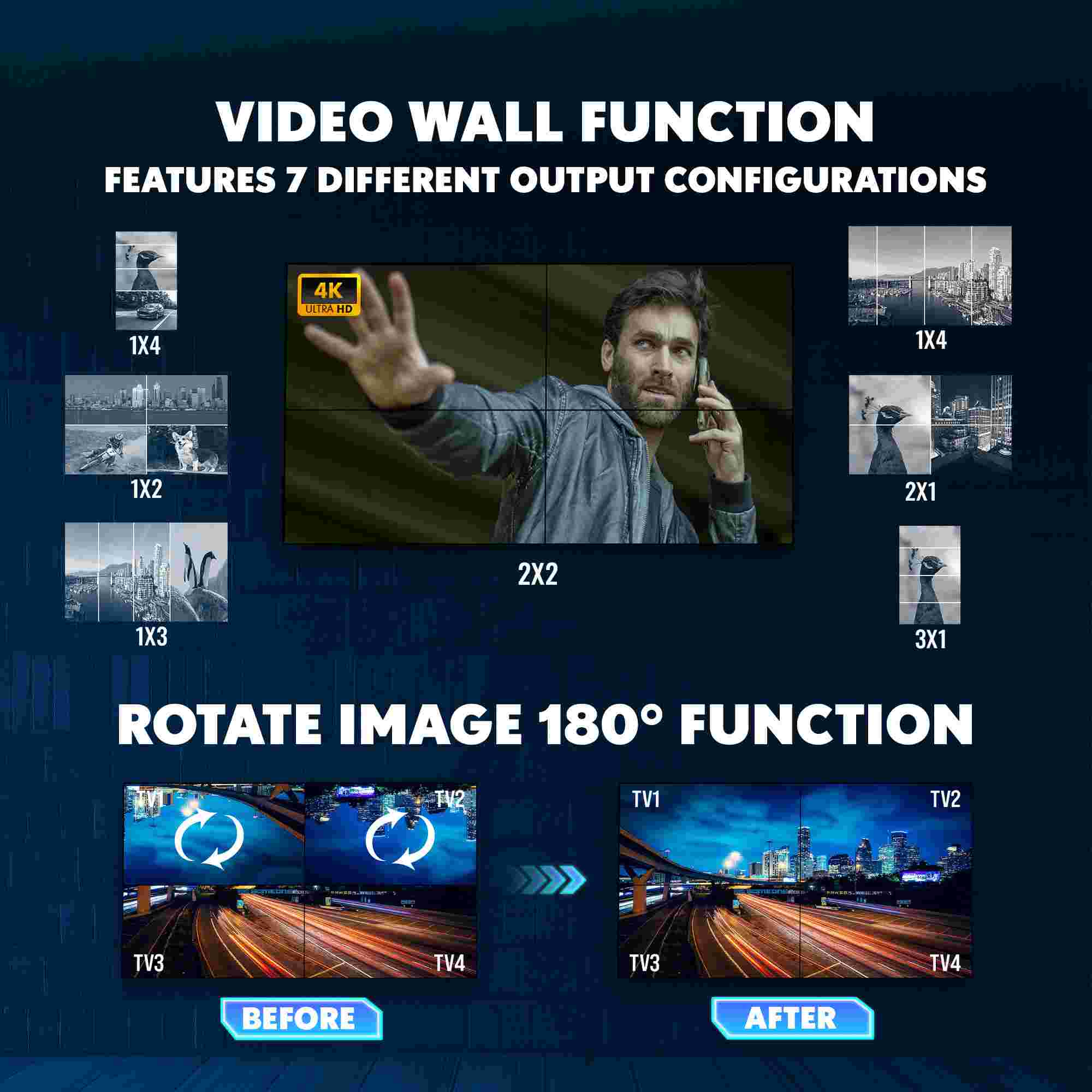

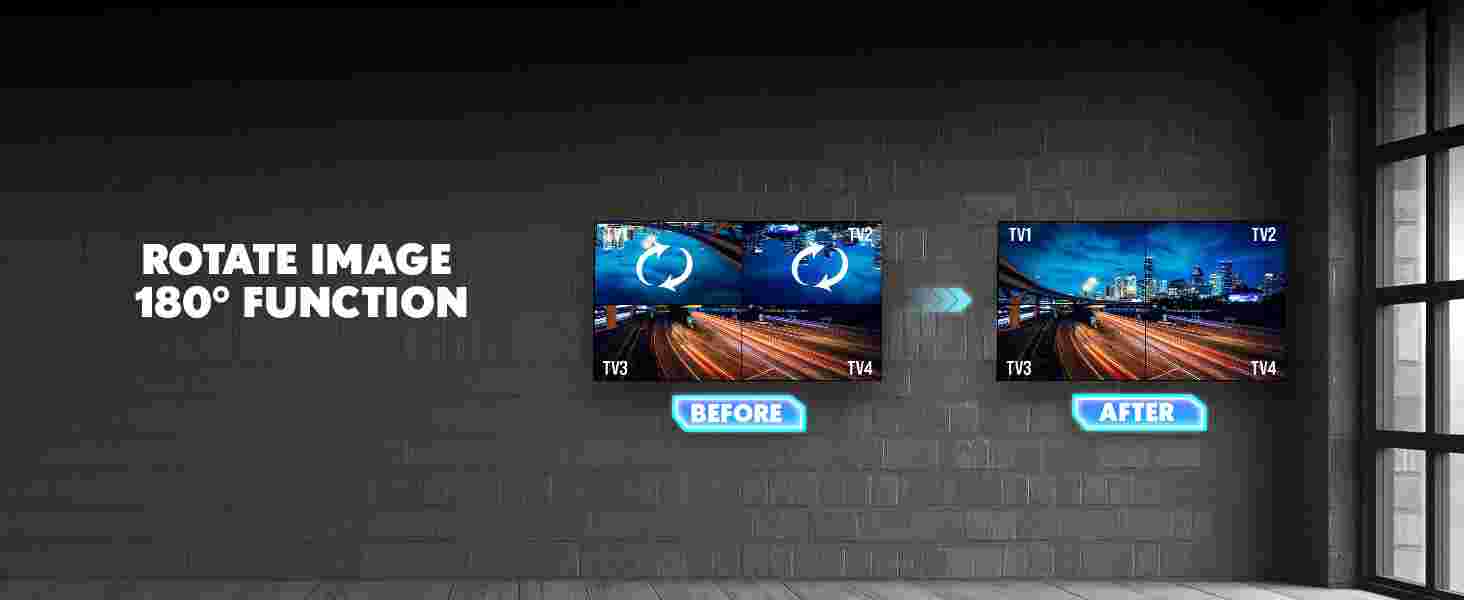

  • Video Wall Controller with 7 Display Modes - Create dynamic displays with up to 7 video wall modes; 2x2, 1x4, 1x2, 1x3, 1x4, 2x1, 3x1. Features a 180° rotation function per display while using the 2x2 video wall mode to help adjust border orientation.
  • Multiviewer with 12 Different Modes - 4x1 multiview function allows you to watch up to 4 different sources on one display. This multiviewer supports 12 different viewing modes, which include 4 equal screens, dual up/down, dual side by side, PIP, 1 big 3 small mode, and more!

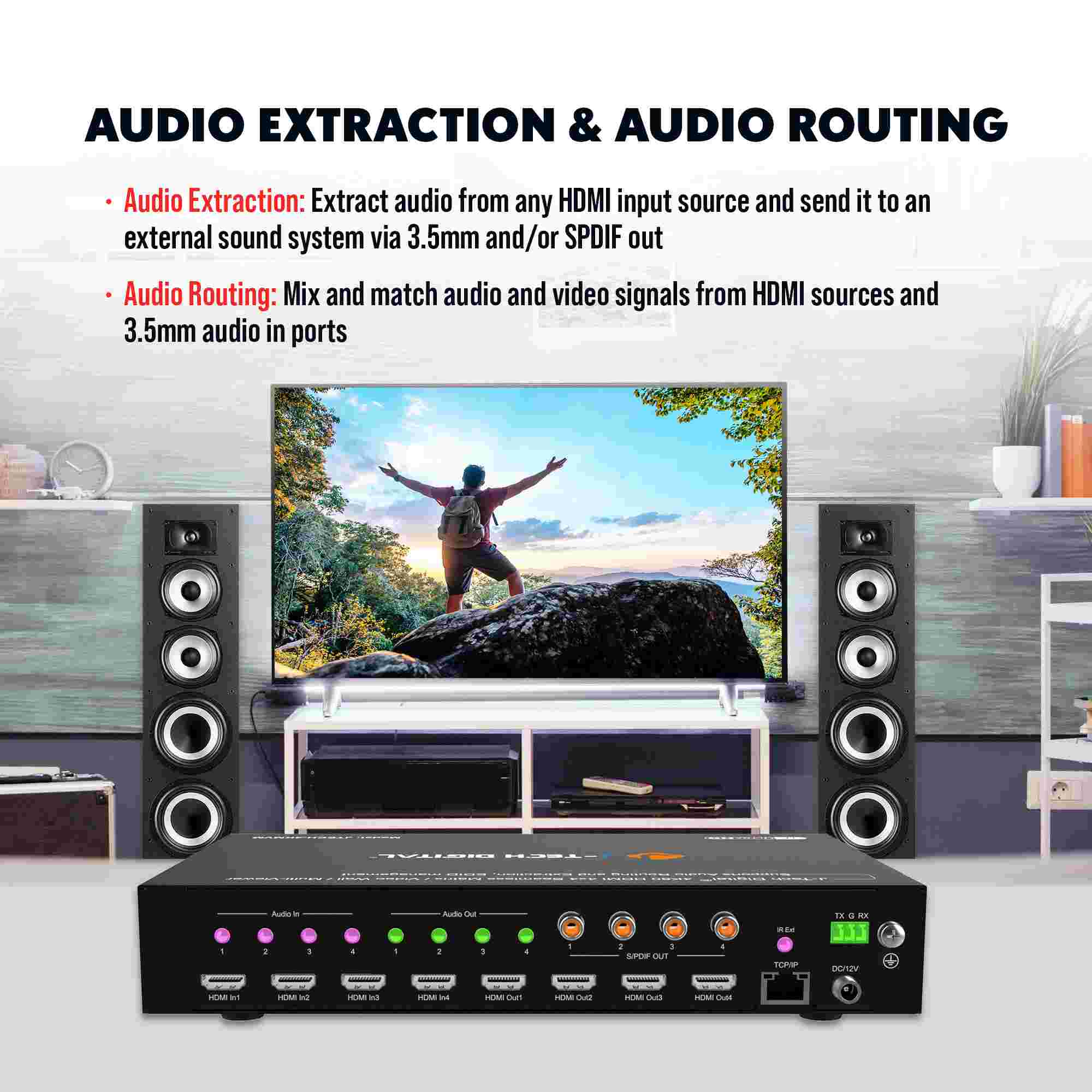

  • Audio Extraction and Audio Switching - Extract audio from any HDMI input source and send it to an external sound system via 3.5mm and/or SPDIF outputs. Features audio routing allowing you to mix and match audio and video signals from HDMI sources and 3.5mm audio in ports.

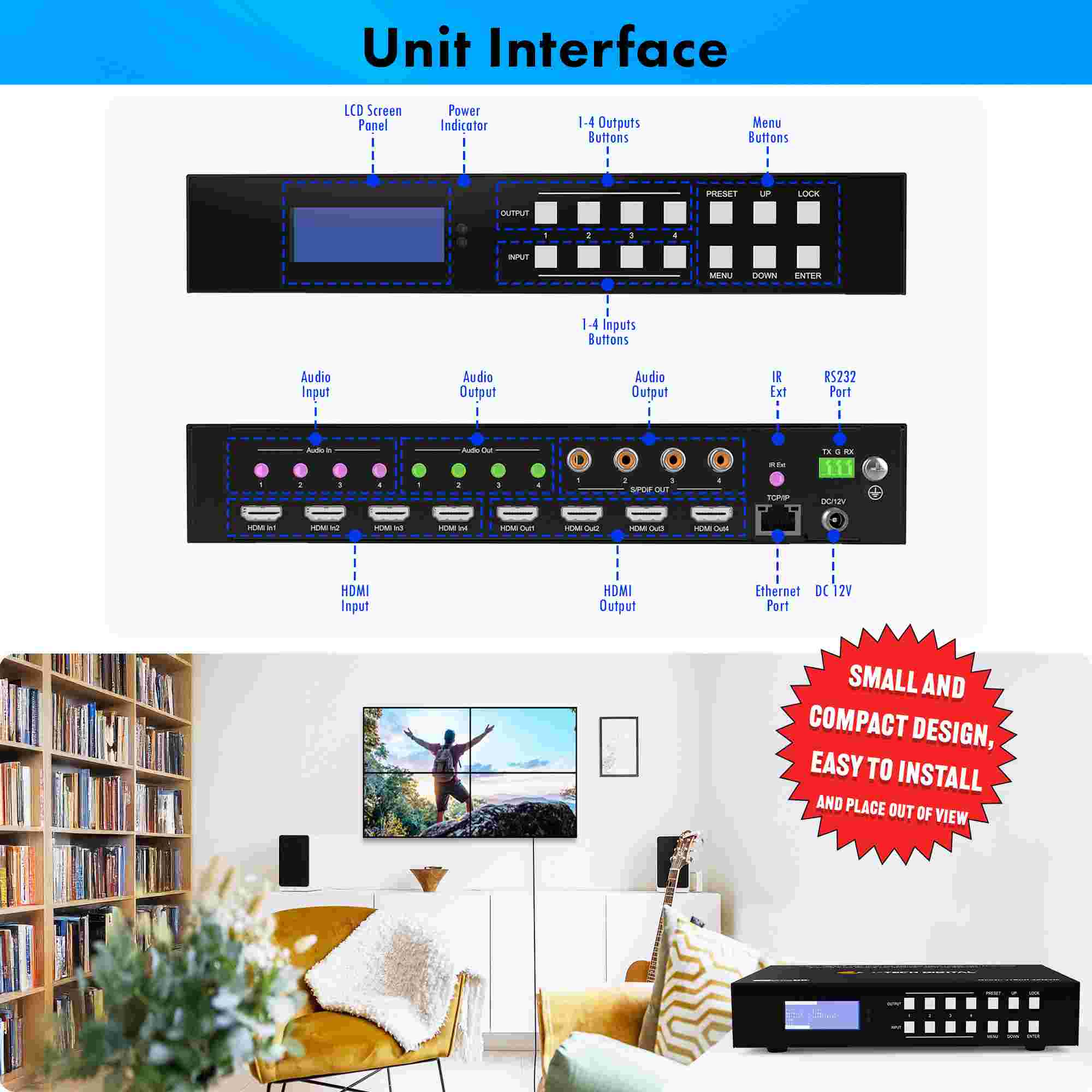

  • Small and Compact Design - This compact HDMI matrix, video wall controller, and multiviewer combines seamless functionality with a sleek, space-saving design, allowing for easy installation and discreet placement to maintain a clean and organized setup.

Information

Brand
J-Tech Digital
MPN
JTD-3182
Model
JTECH-4KMVM

Benefits

  • Free delivery over $50
  • Free return within 30 days.
  • Hassle-free Warranty
  • Lifetime Technical Support

Specifications

General
Operating Temperature Range
-5°C ~ 40°C (23°F ~ 104°F)
Storage Temperature Range
-10°C ~ 60°C (-14°F ~ 140°F)
Operating Humidity Range
5 to 90% RH (no condensation)
Video
Input Video Signal
0.5 - 1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Bandwidth
18Gbit/s
Video Formats Supported
4K@60Hz, YUV 4:4:4 8-bit, 4K@30Hz, 1080P , 1080i , 720p
HDCP Compliance
HDCP 2.2 and HDCP 1.4
HDMI Version
HDMI 2.0
Ports
Input Ports
4 x HDMI In, 4 x 3.5mm Audio In
Output Ports
4 x HDMI Out, 4 x 3.5mm Audio Out, 4 x SPDIF Out

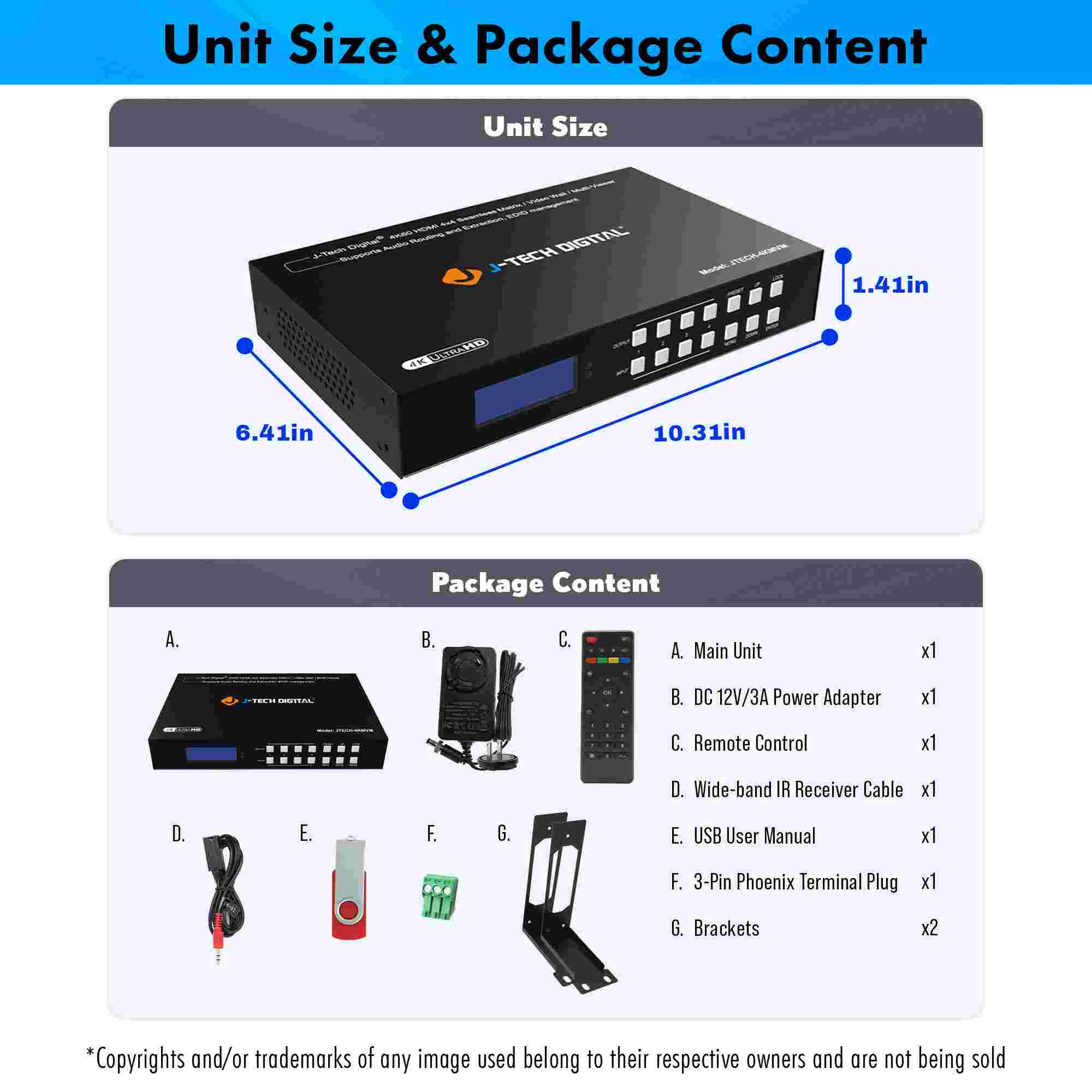

What's in the box

  • 1 x Main Unit
  • 1 x DC 12V/3A Power Adapter
  • 1 x Remote Control
  • 1 x IR Receiver Cable
  • 1 x User Manual
  • 1 x 3-Pin Phoenix Terminal Plug
  • 2 x Mounting Brackets

Resources

FileVersion
User Manual

1.0
