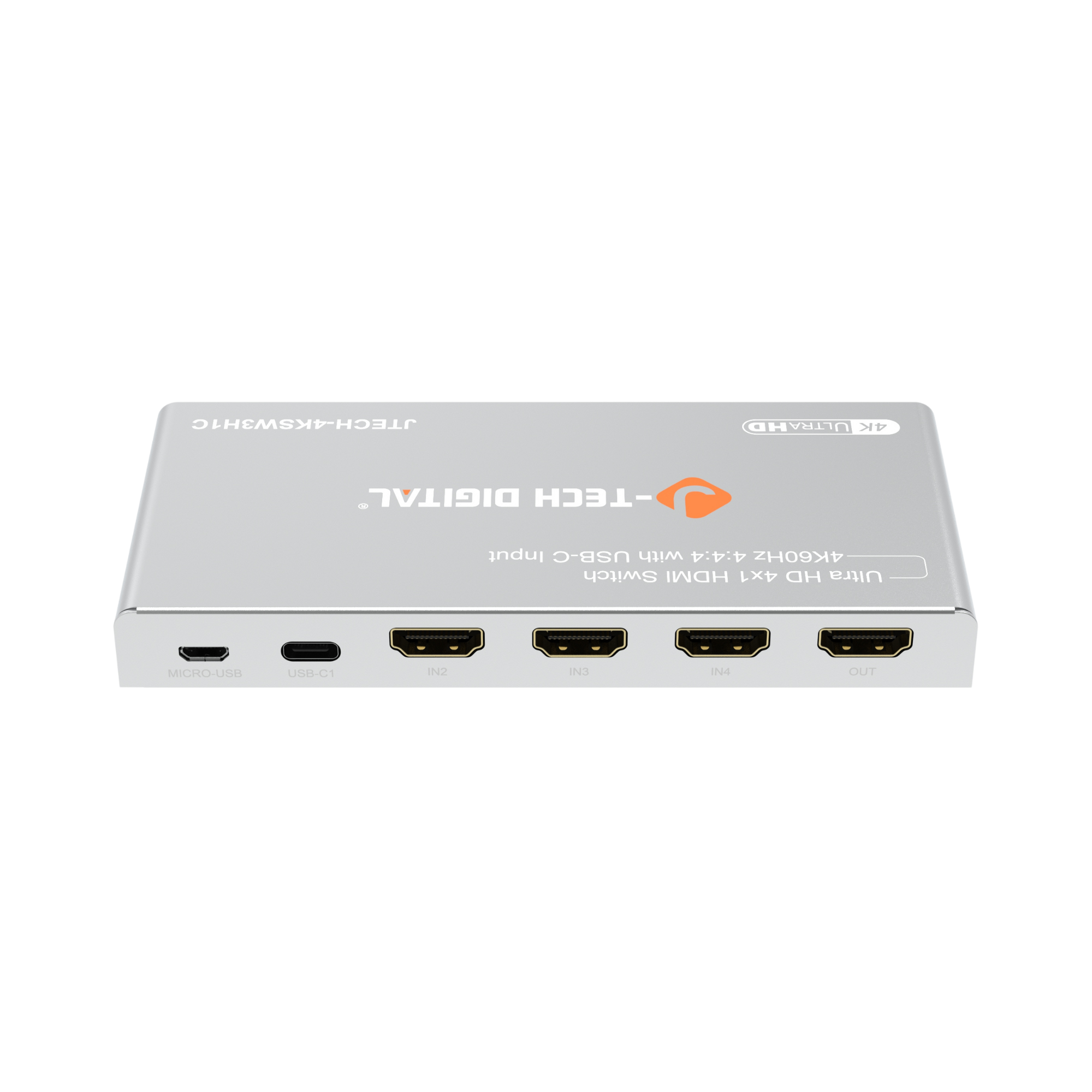

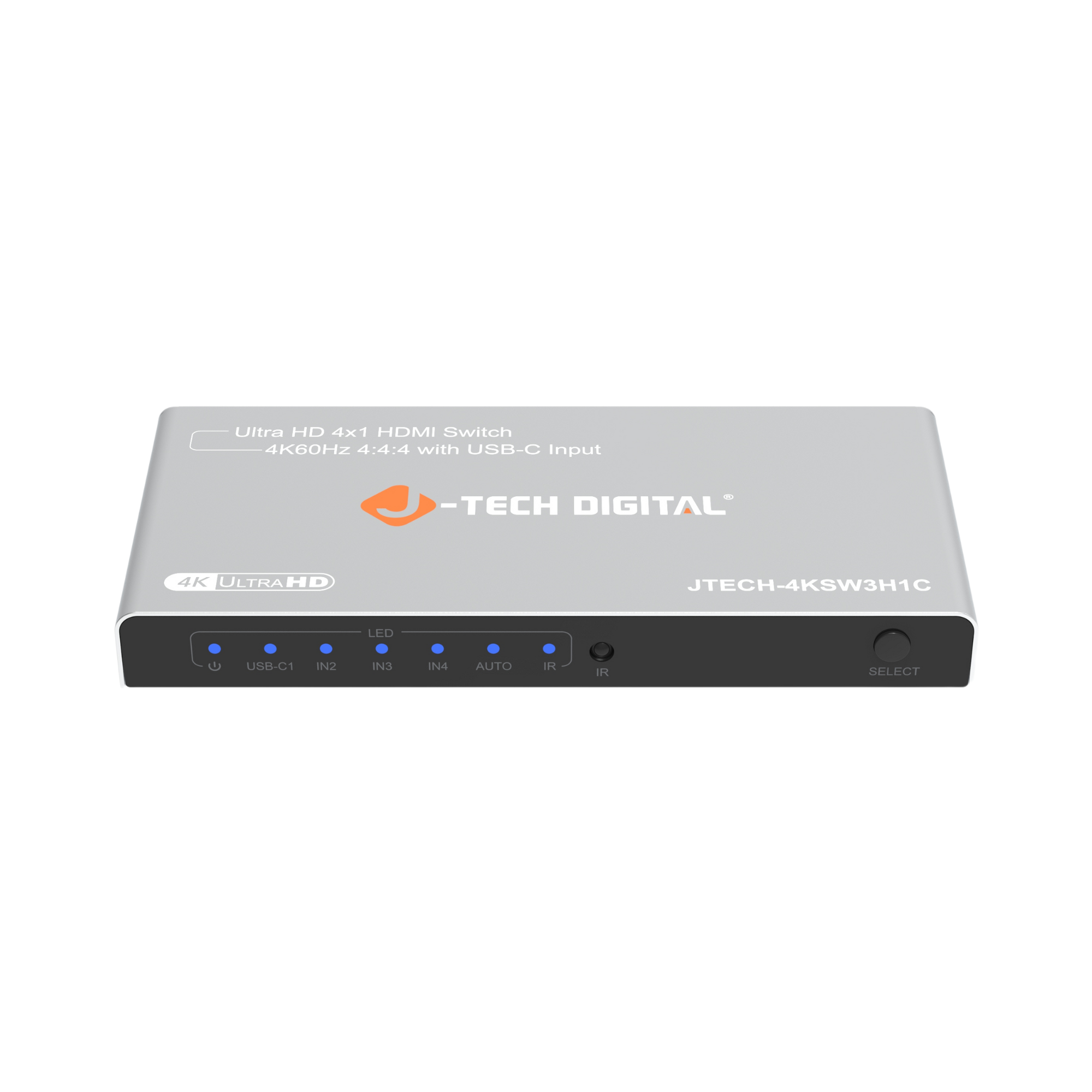

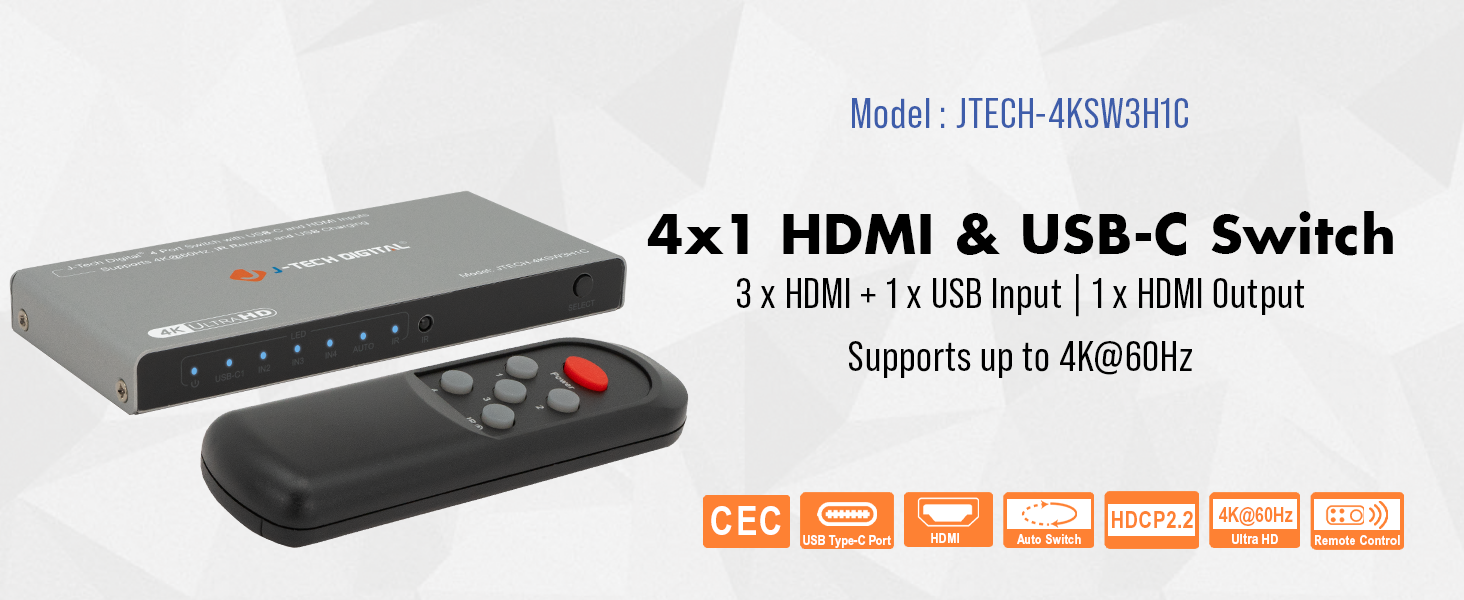

4K 60Hz 4x1 HDMI Switch with USB-C Input

$42.89

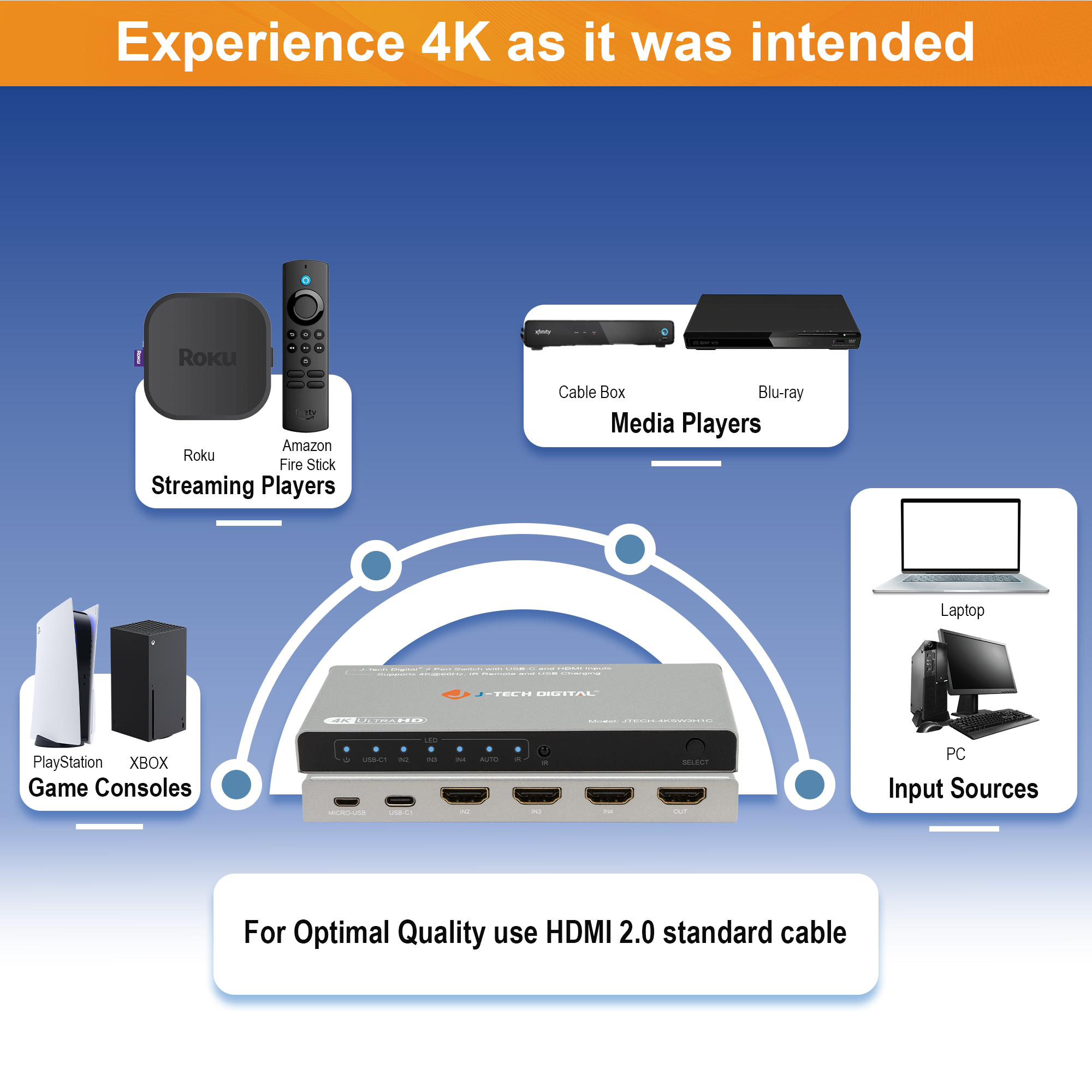

The JTECH-4KSW3H1C is a 4x1 switch that features 3 x HDMI inputs & 1 x USB-C input that can be connected to a single display. It supports resolutions up to 4K 60Hz 4:4:4, so that you can enjoy your content in vivid details. The dual switching modes provides you with the ability to either automatically or manually switch between your connected input source devices. Don’t let your setup become limited because of the available number of HDMI ports on your display. The JTECH-4KSW3H1C provides you with extra ports so that you can connect all of your favorite devices to your existing display and easily toggle through them to use the one you would like! Support for HDR/Dolby Vision and digital audio formats is also available. Install this unit in your setup today and feel the ease of use without any compromise.

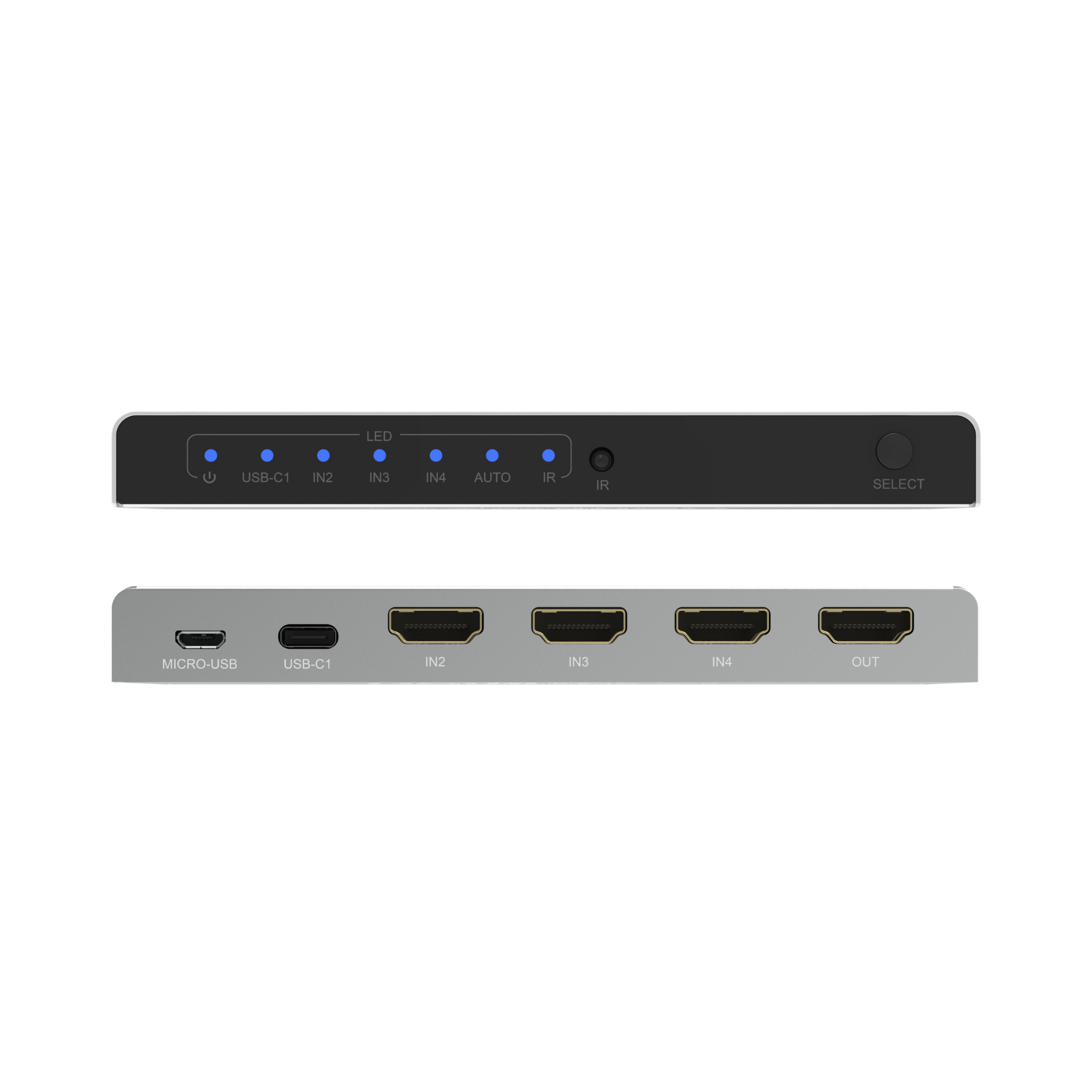

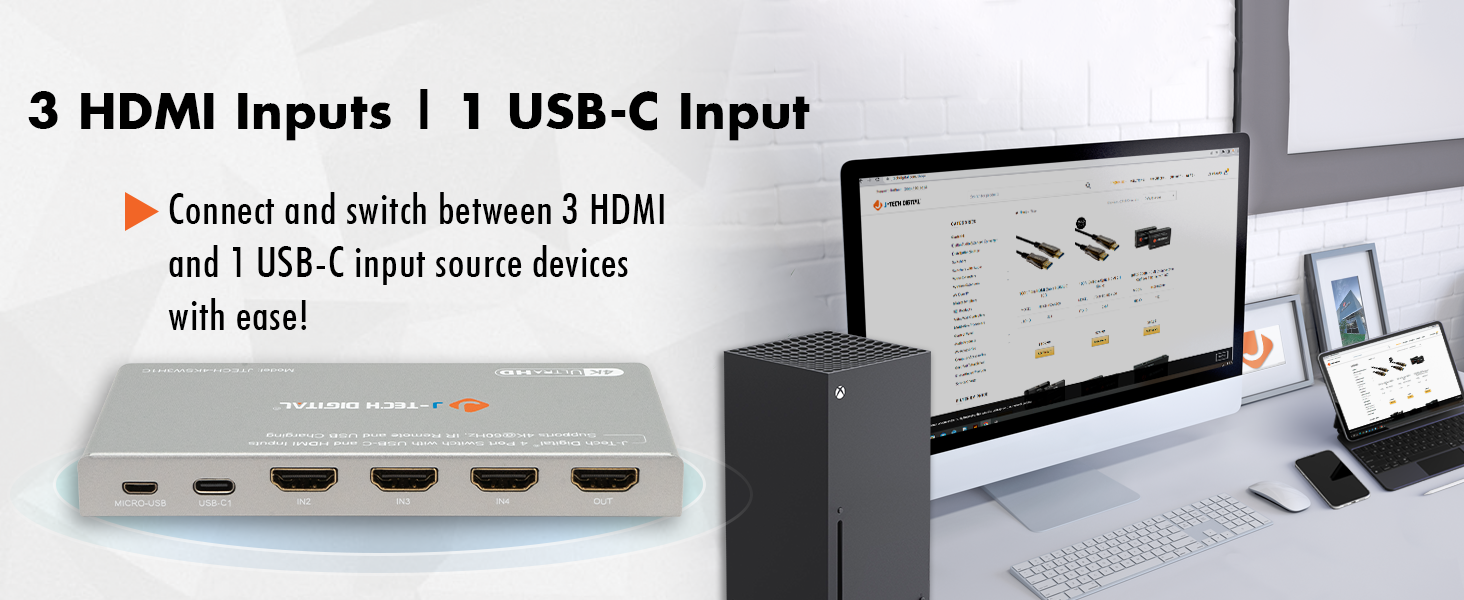

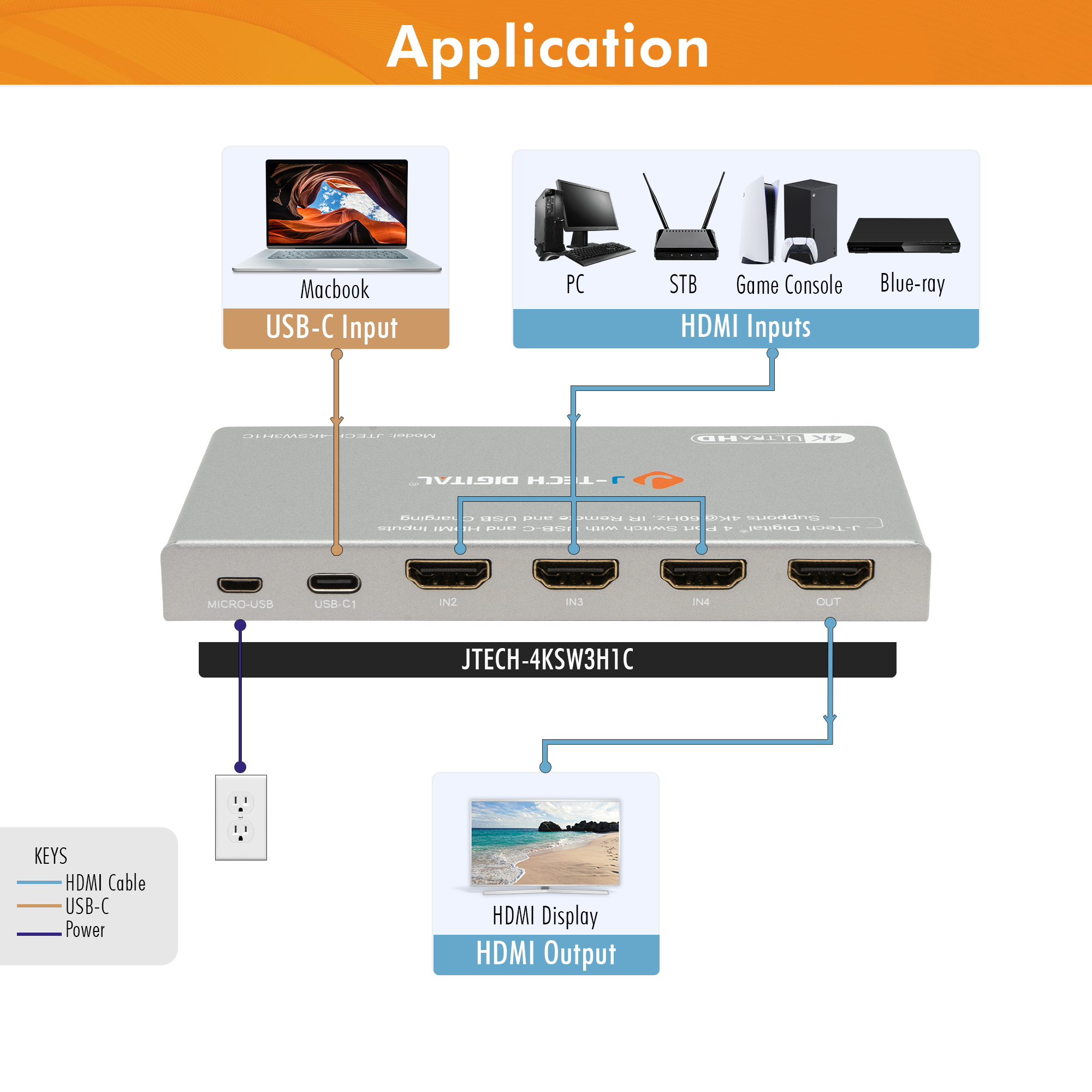

3 x HDMI Inputs + 1 x USB-C Input | 1 x HDMI Output

Supports up to 4K 60Hz 4:4:4 resolution

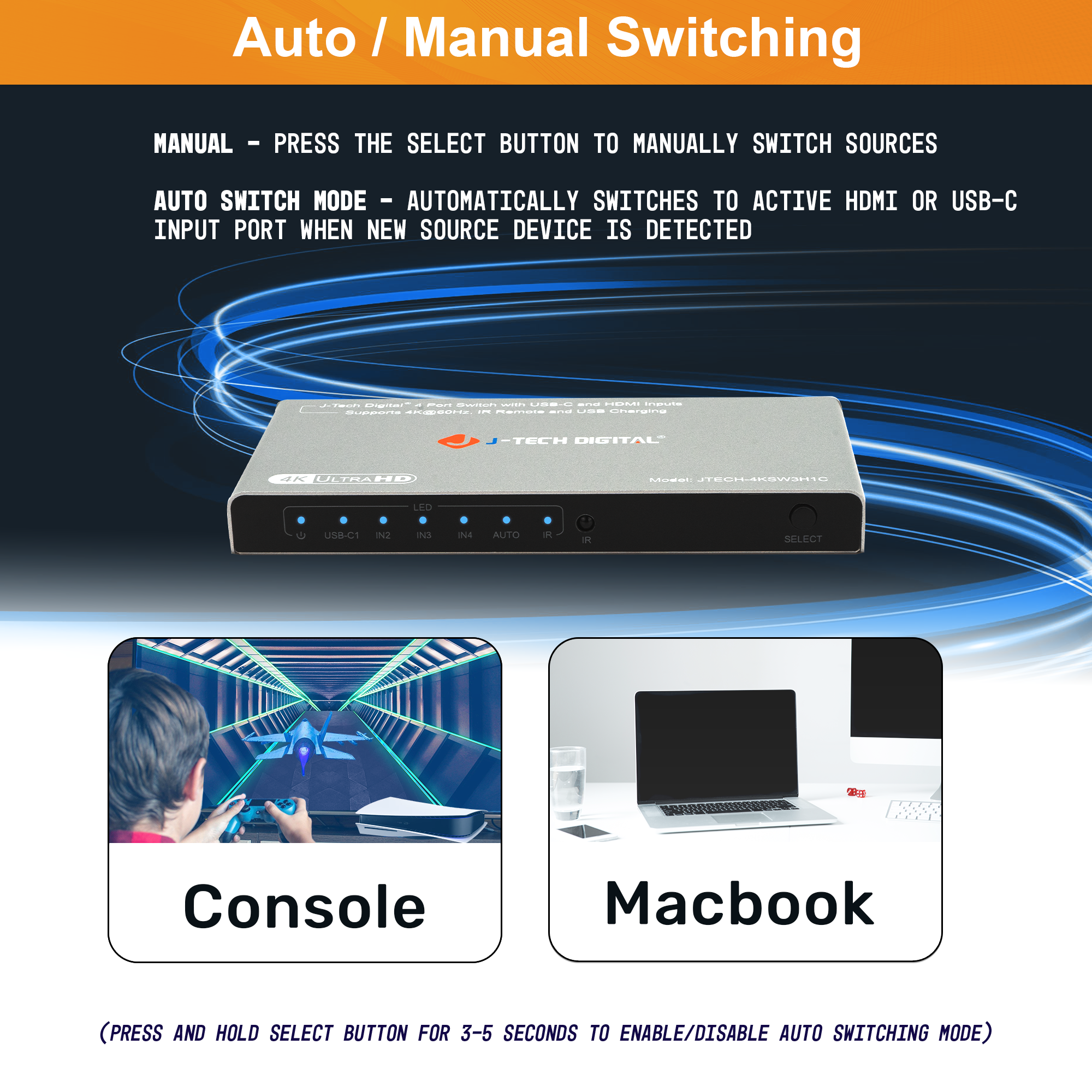

Dual switching mode | Switching between auto and manual source switching

HDCP 2.2 and 1.4 compliant

Supports full 3D video format

Compatible with Thunderbolt 3 & DP 1.4 alt mode for USB-C Input

Supports HDR, HDR10, and Dolby Vision

Supports digital audio formats such as Dolby Digital, DTS, DTS-HD Master Audio etc.

Includes IR remote for easy control

Information

Brand
J-Tech Digital
MPN
JTD-3005
Model
JTECH-4KSW3H1C

Benefits

  • Free delivery over $50
  • Free return within 30 days.
  • Hassle-free Warranty
  • Lifetime Technical Support

Drivers

Specifications

Video
Input Ports
3 x HDMI, 1 x USB-C
Output Ports
1 x HDMI, 1 x USB-A
Vertical Frequency Range
50/60Hz
Video Amplifier Bandwidth
6.0Gbps/600MHz per channel (18Gbps all channels)
Resolution
Up to 4K 60Hz 4:4:4
General
Operating Temperature
0 ~ 50°C
Storage Humidity
5 – 80% RH non-condensing
Power Supply
5V 2A micro-USB power adapter
Power Consumption
10W Max
Switcher Unit Cert
FCC, CE, RoHS
Dimensions (LxWxH)
139 x 64.5 x 15mm
Net Weight
190g
Material
Metal

What's in the box

  • 1 x Main Switch Unit
  • 1 x Remote Control
  • 1 x USB Power Cable
  • 1 x 5V 2A USB Charging Adapter
  • 1 x User Manual

Frequently asked questions

Resources

FileVersion
User Manual

1.0
