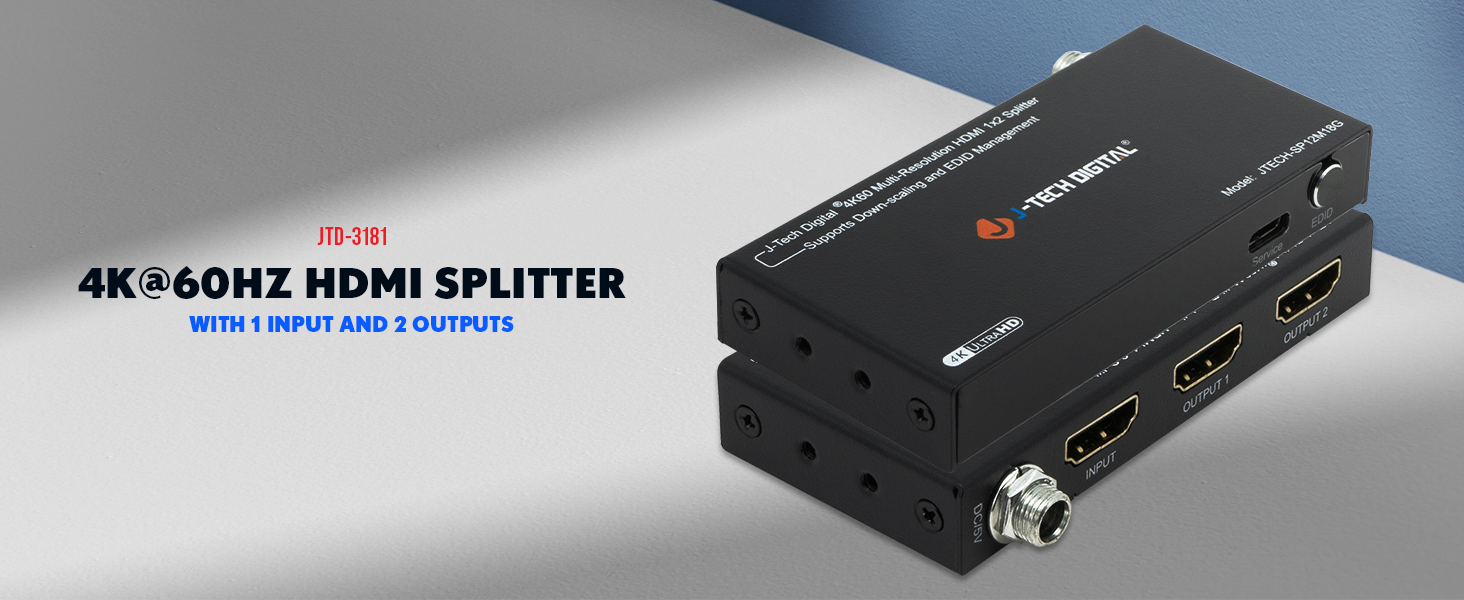

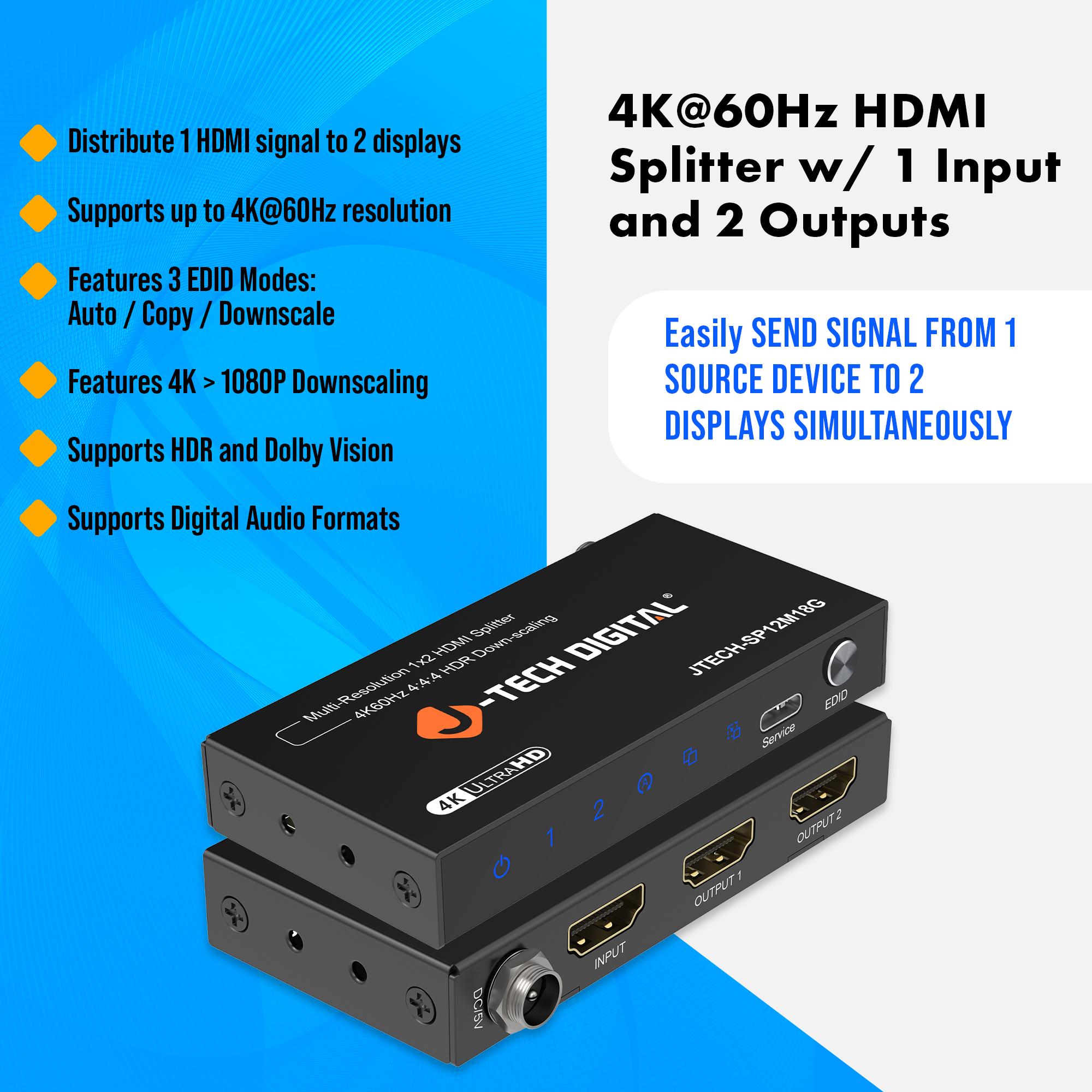

4K@60Hz HDMI Splitter 1x2 – 1 Input 2 Outputs w/ 4K > 1080 Downscaling
-

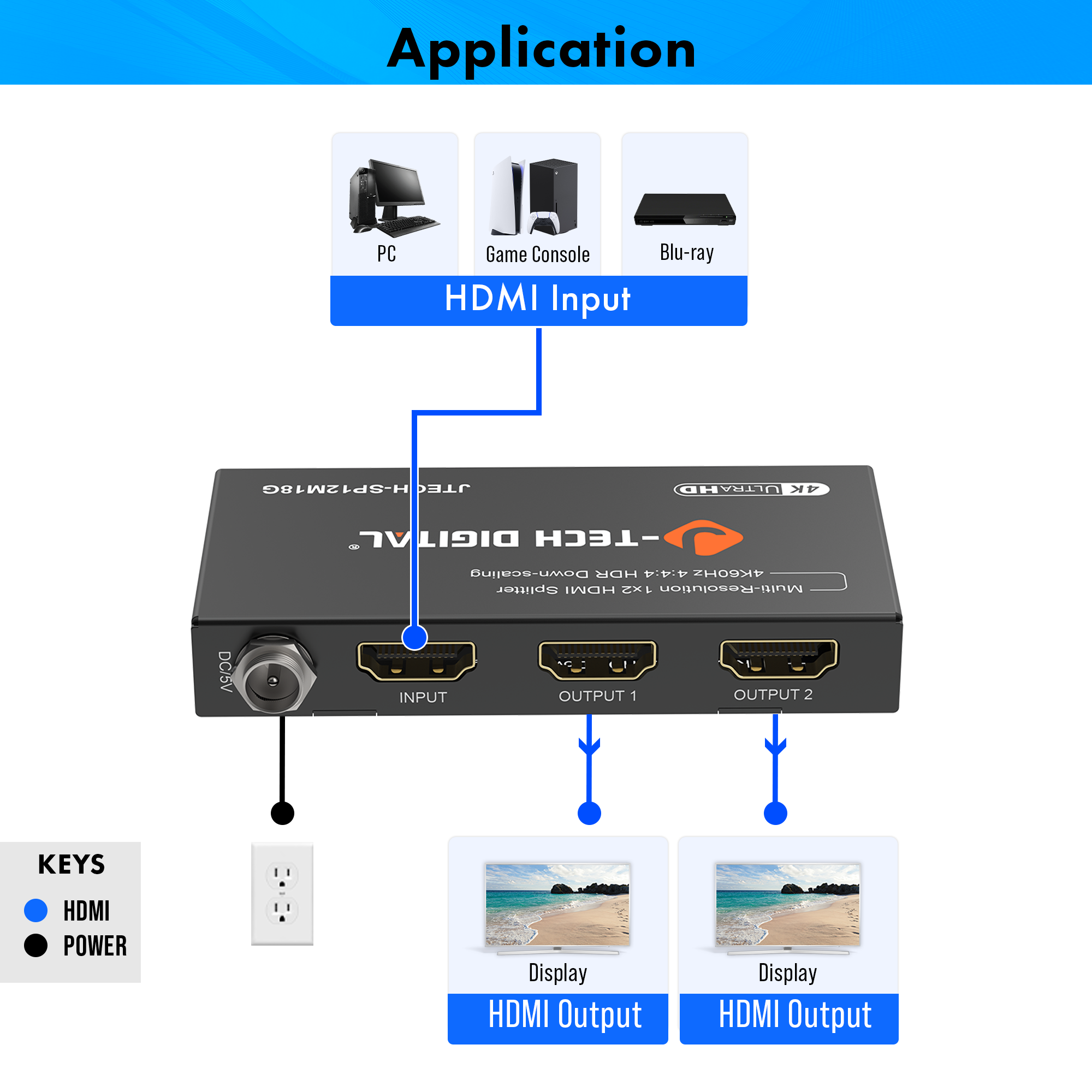

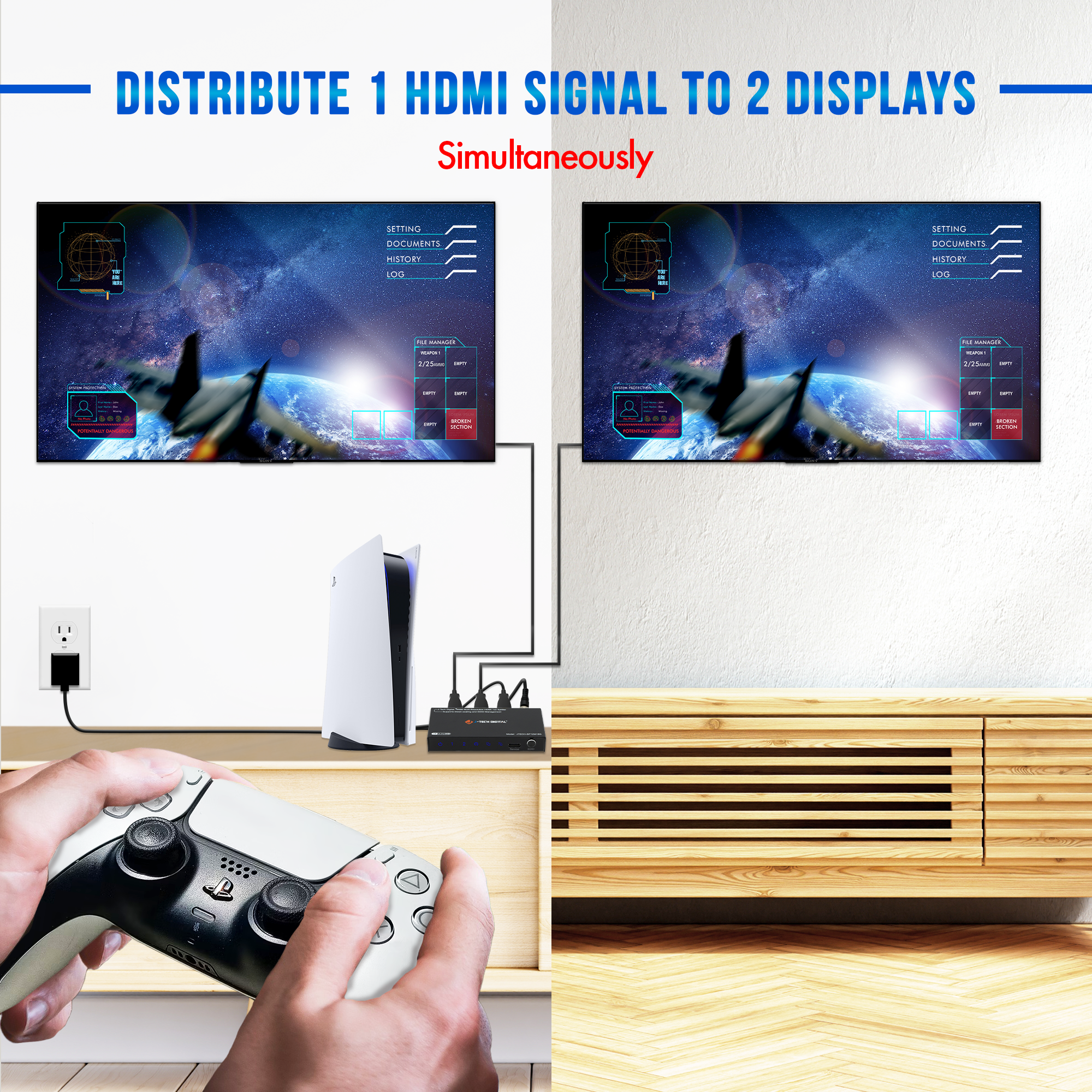

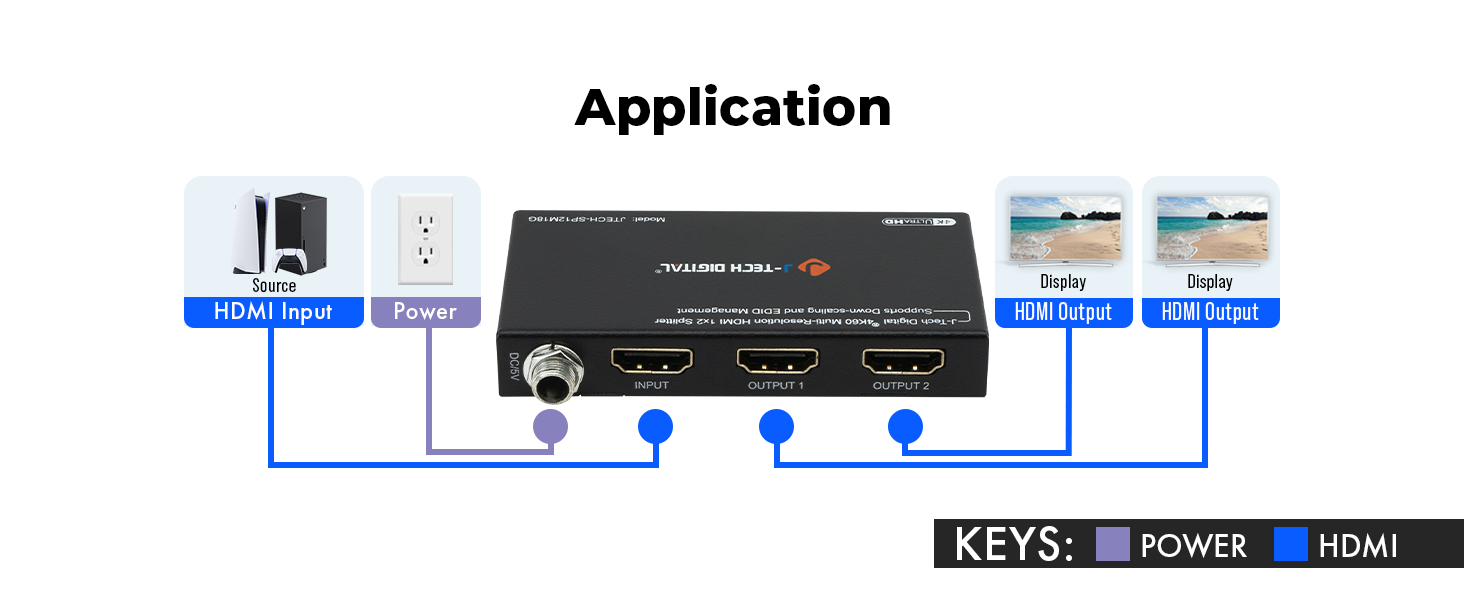

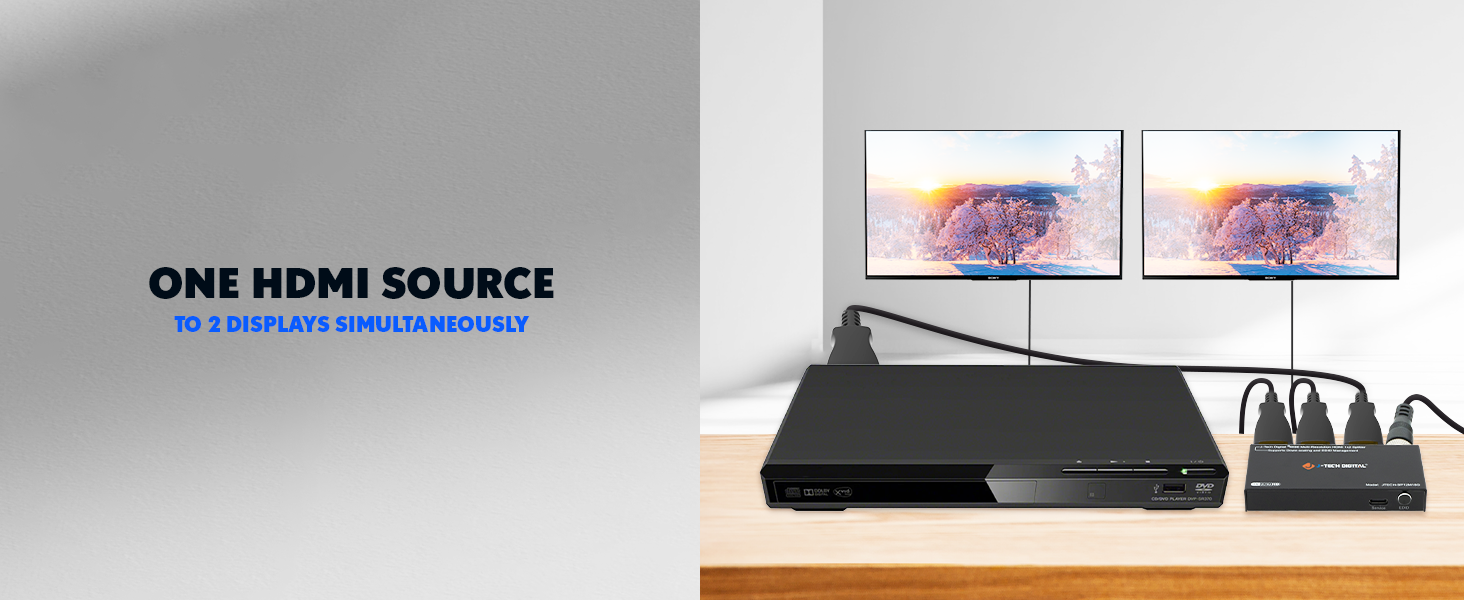

Distribute 1 Source to 2 Displays: This 1x2 HDMI splitter helps distribute signal from 1 HDMI source device to 2 displays simultaneously. Please note that this splitter only duplicates/mirrors the source signal on both displays, and does not extend the display.
-
Supports Up To 4K@60Hz Resolution: Enjoy all the features that HDMI 2.0 standard and HDCP 2.2 compliance have to offer. This HDMI splitter supports up to 4K@60Hz 4:4:4 resolution, and is backwards compatible with 1080P FHD resolutions as well.
-

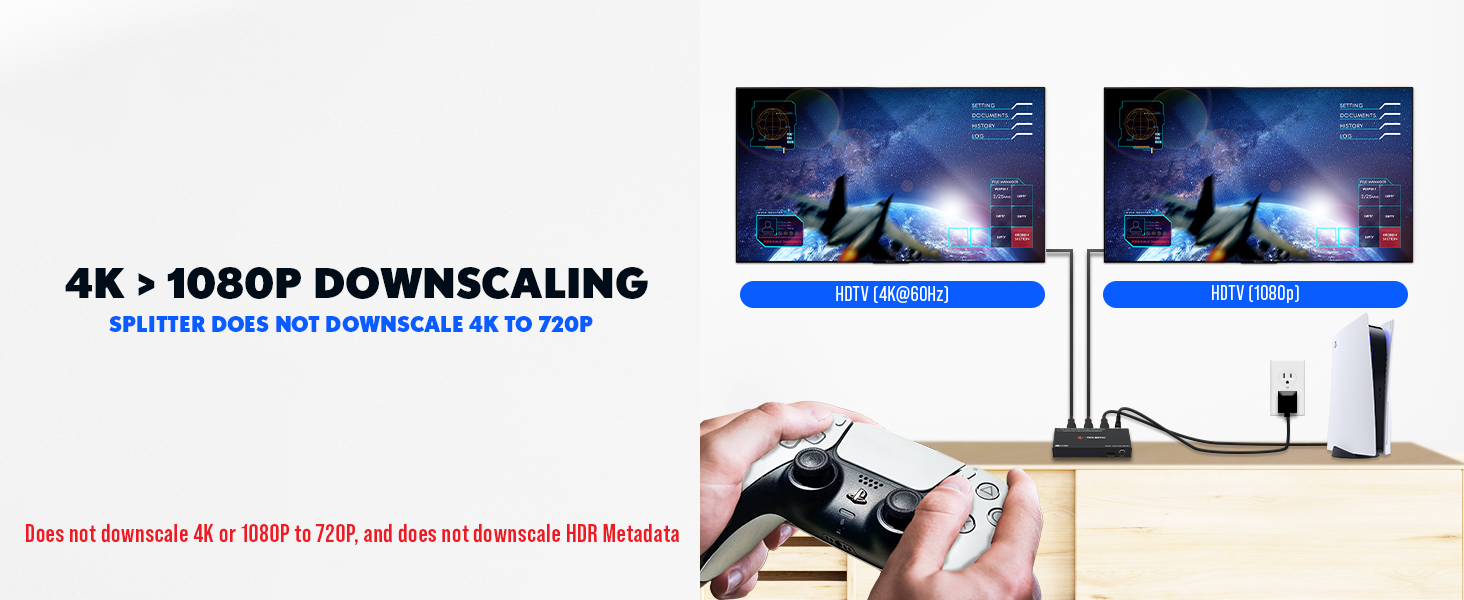

Features 4K > 1080P Downscaling: Easily mix and match displays within your setup by using the downscaling function. Downscale 4K signals to 1080P to send 4K signal to your 4K display while simultaneously sending that same signal to your 1080P display. Please note that this HDMI splitter does not downscale 4K or 1080P to 720P resolution, and does not downscale HDR metadata.
-

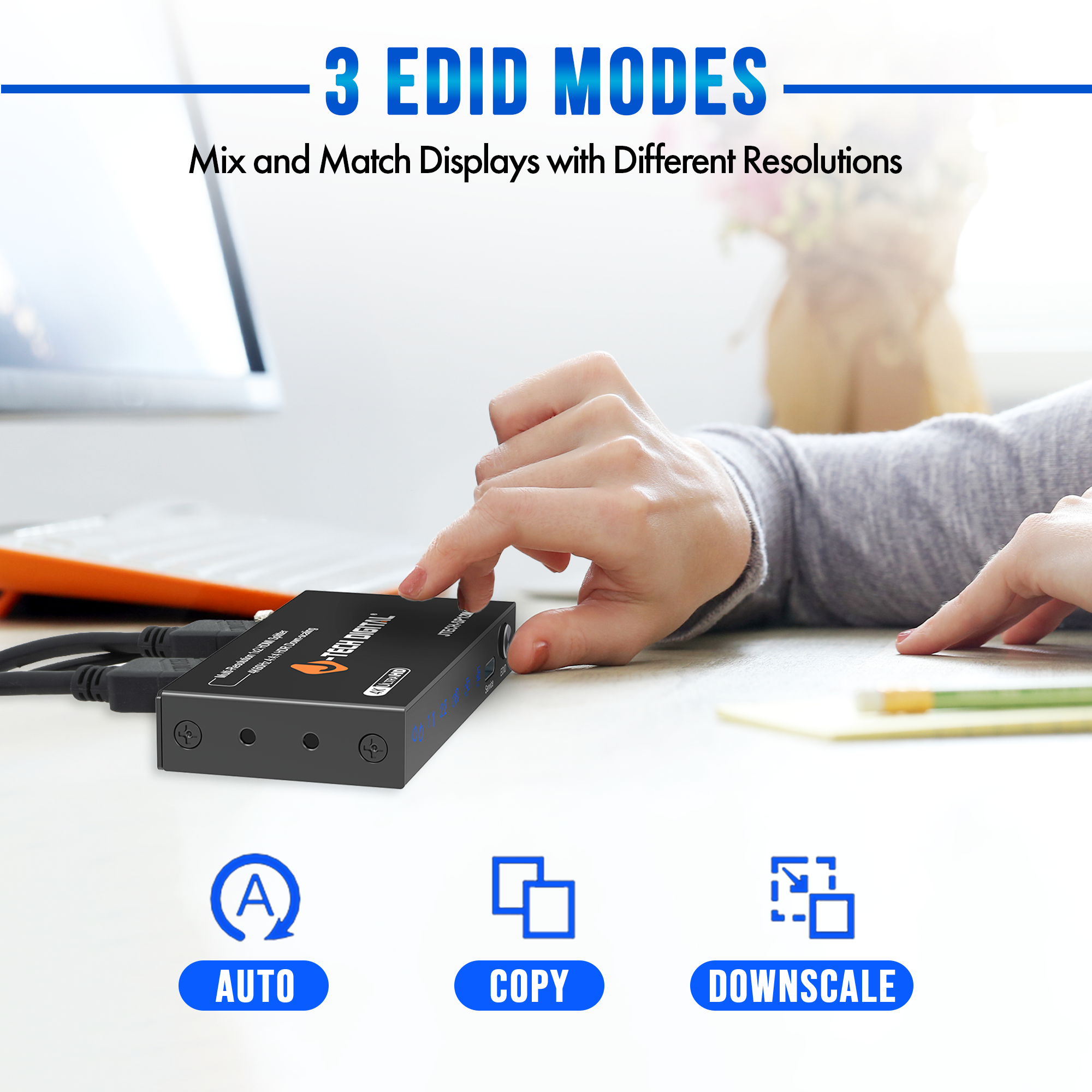

3 EDID Settings & Digital Audio Format Support: Features EDID auto, copy, and downscaling settings to help resolve source and display incompatibility issues. This HDMI splitter supports both compressed and uncompressed digital audio formats.
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3181
- Model
- JTECH-SP12M18G
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Specifications

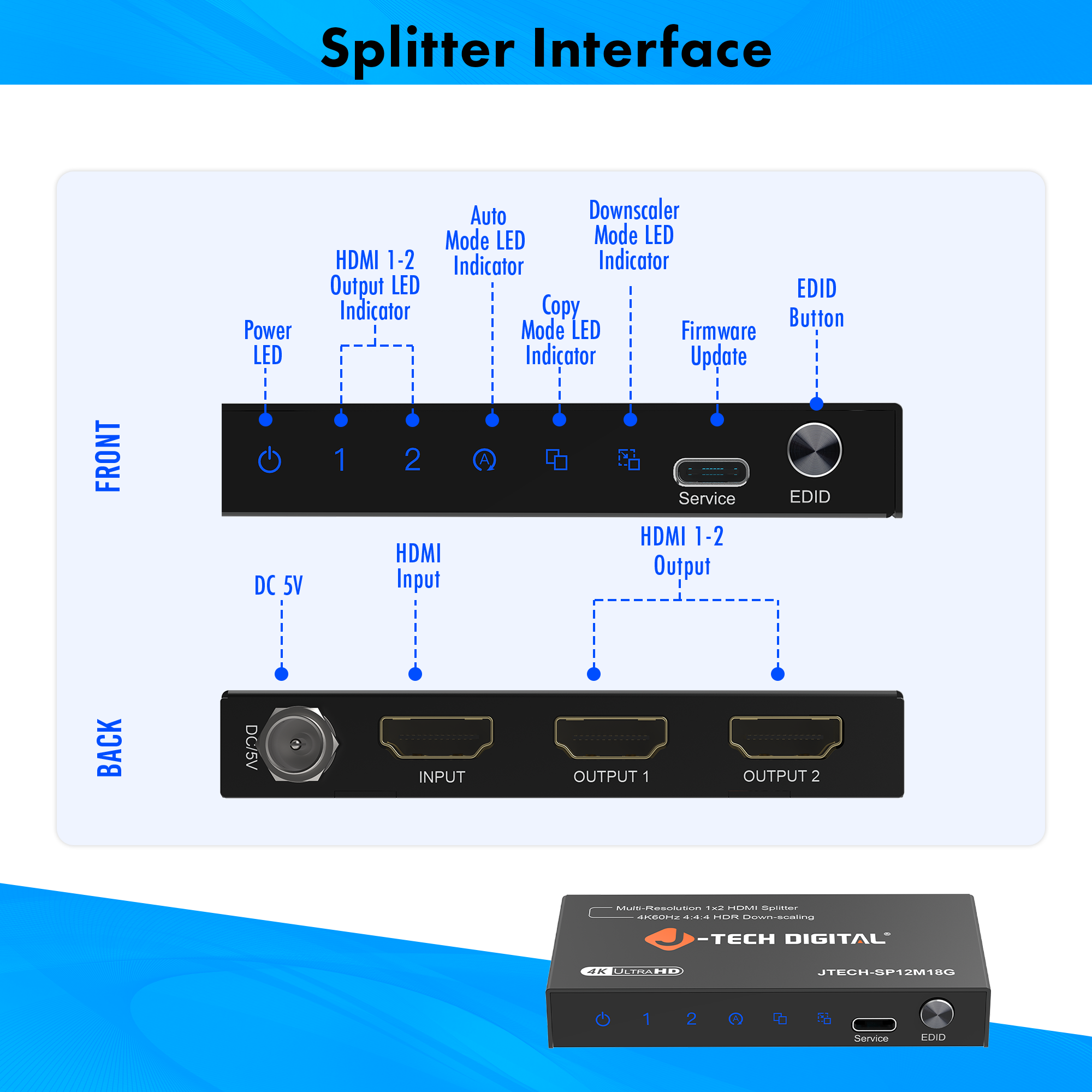

- Inputs
- 1 x HDMI
- Outputs
- 2 x HDMI
- Vertical Frequency Range
- 50/60Hz
- Video Amplifier Bandwidth
- 6.0Gbps / 600MHz per channel (18Gbps all channels)
- Interlaced (50 & 60Hz)
- 480i, 576i, 1080i
- Progressive (50 & 60Hz)
- 480p, 576p, 720p, 1080p, 4K @ 24/30Hz, 4K @ 50/60Hz
- Operating Temperature
- 0° ~ 70°
- Storage Humidity
- 5% to 90% RH non-condensation
- Power Supply
- 5V DC 1A
- Power Consumption (Max)
- 5W
- Splitter Unit Cert
- FCC, CE, RoHS
- Power Supply Cert
- FCC, CE, RoHS

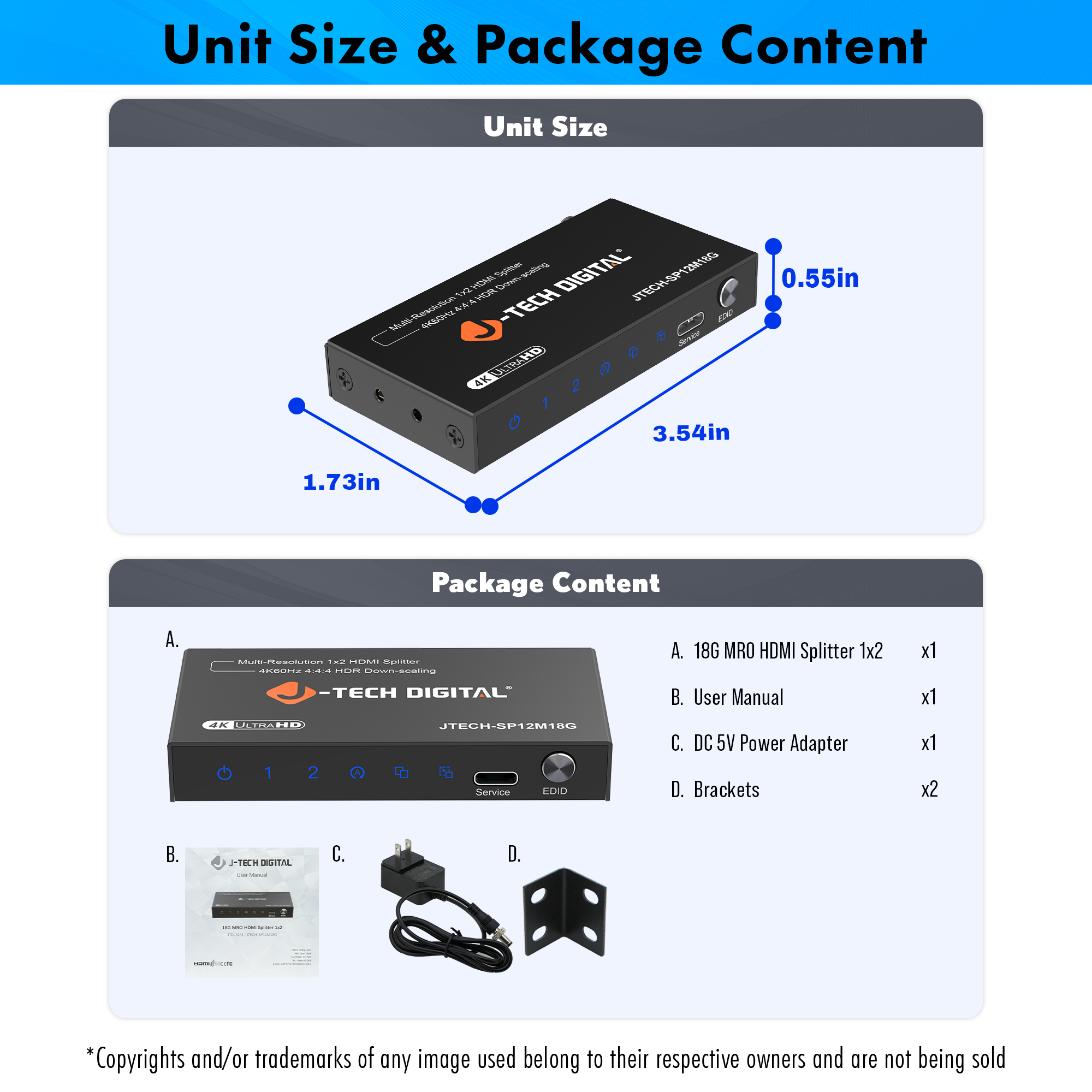

- Dimensions (L x W x H)
- 90 * 44 * 14 mm
- Net Weight
- 87g
- Material
- Metal
What's in the box
- 1 x 1x2 HDMI Splitter
- 1 x User Manual
- 1 x Power Adapter
- 2 x Brackets
Resources
File | Version |
---|---|
User Manual | 1.0 |
