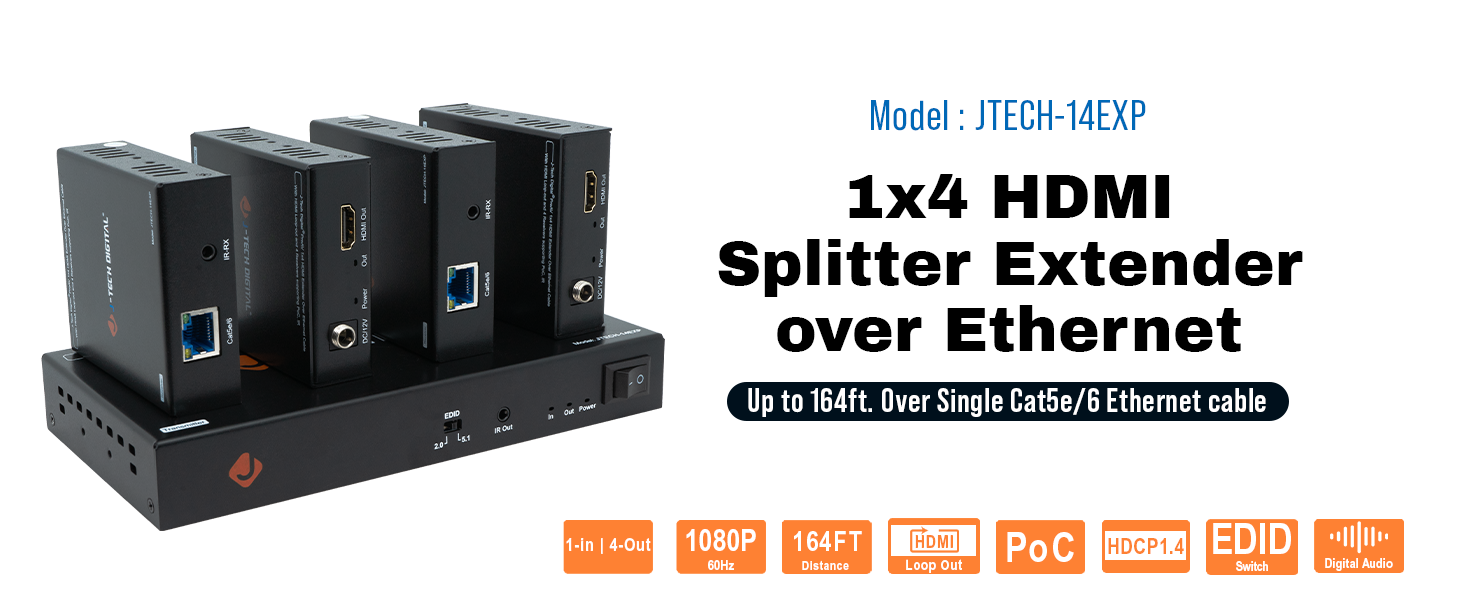

1080P 60Hz 1x4 HDMI Extender Splitter Over Ethernet (164ft.)
-

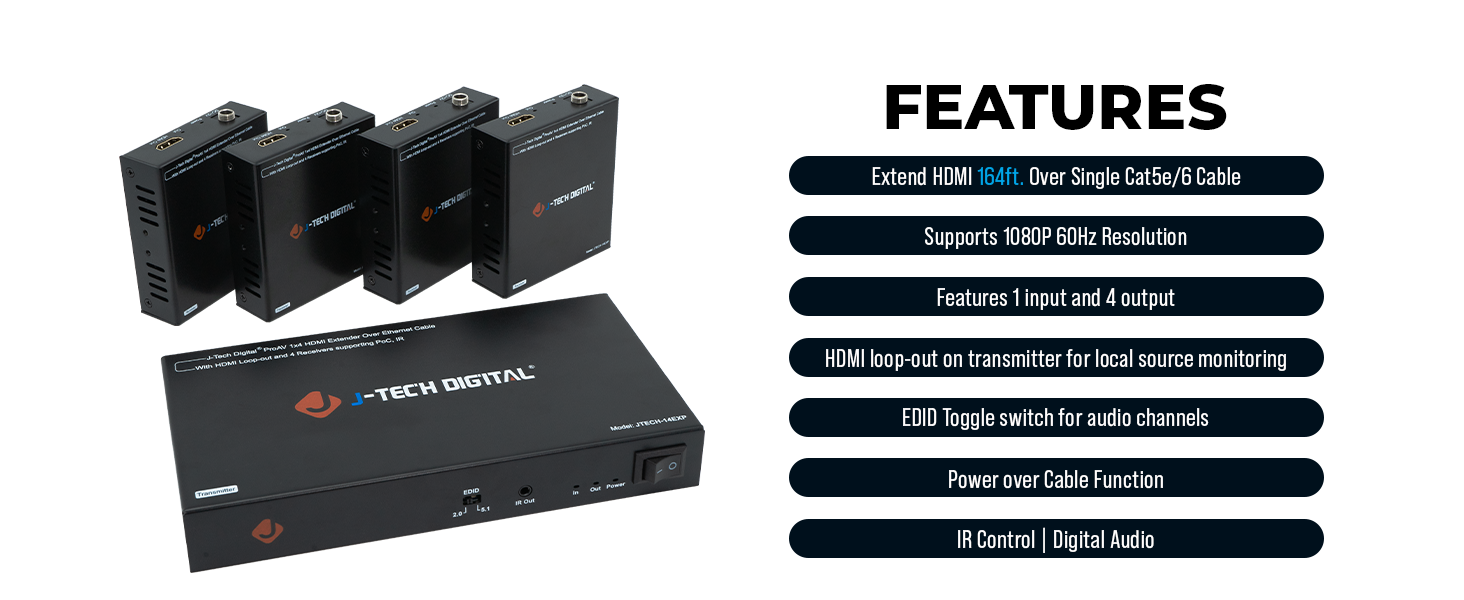

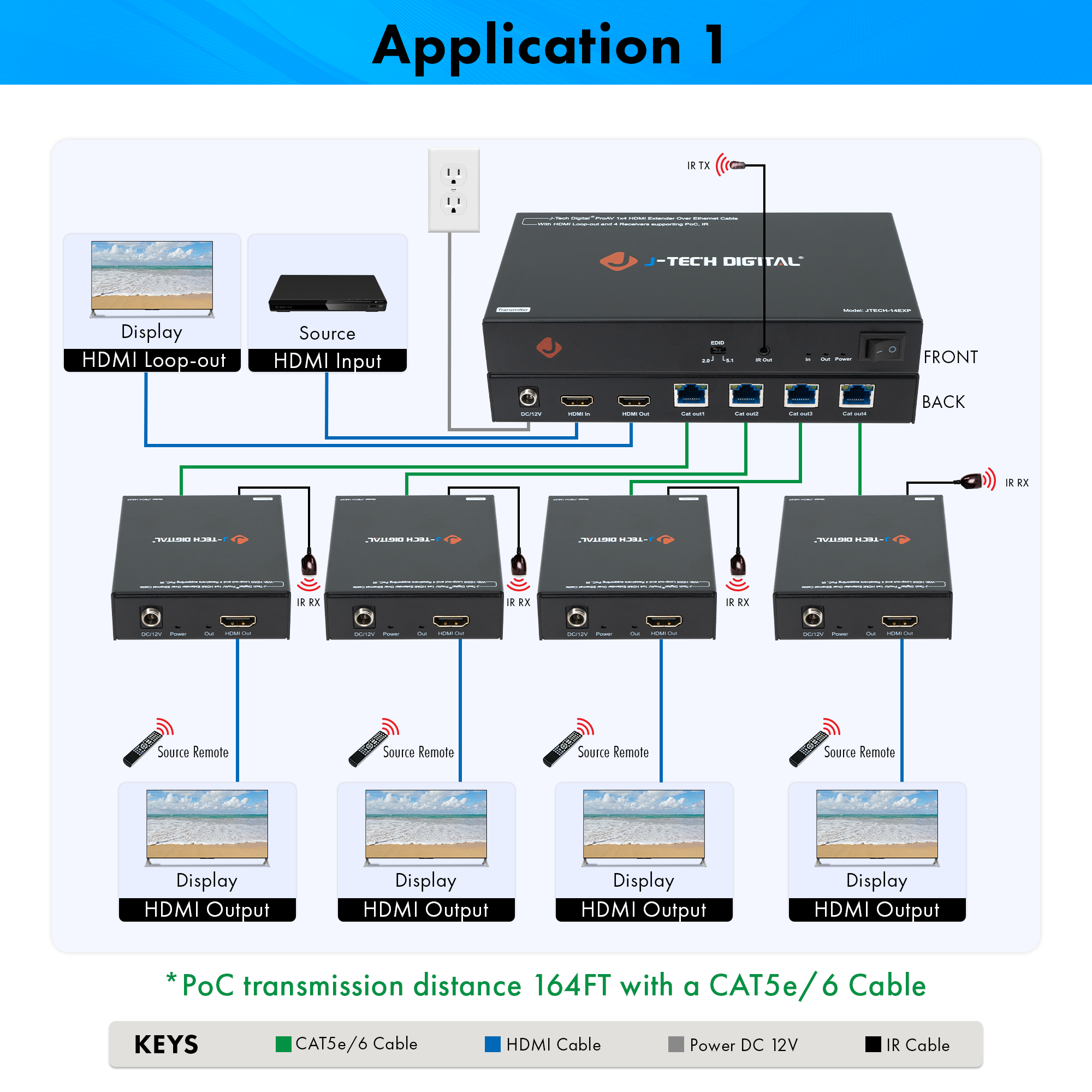

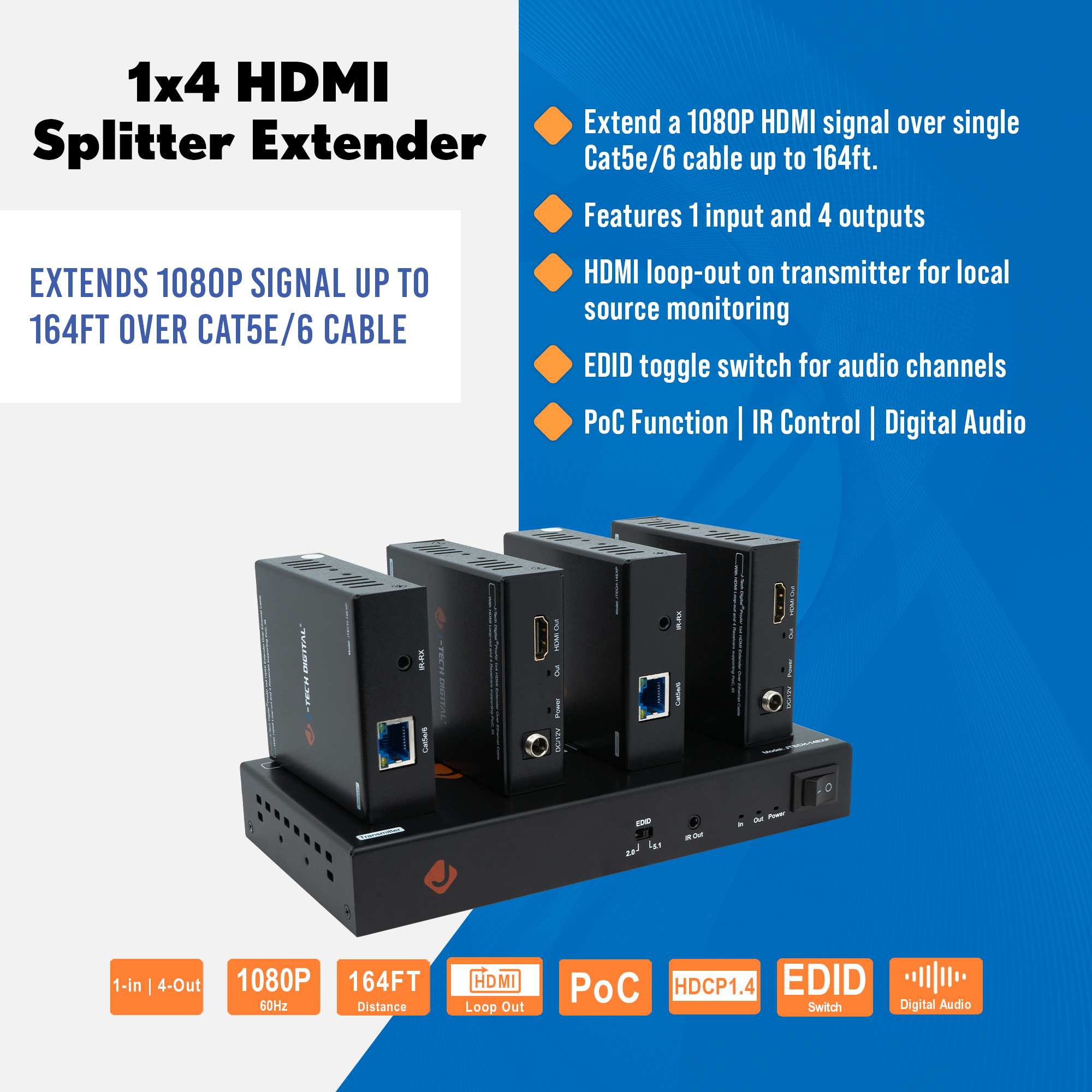

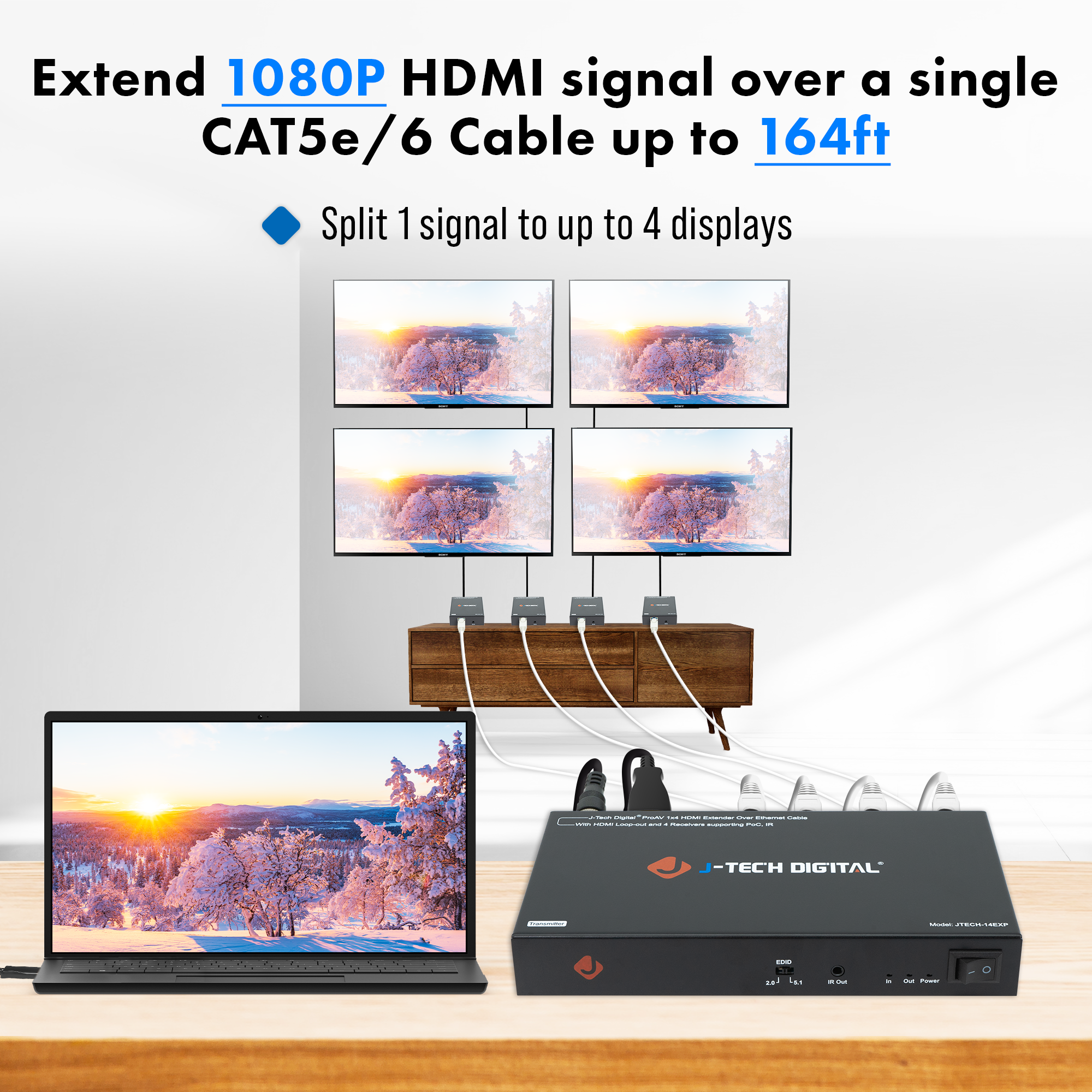

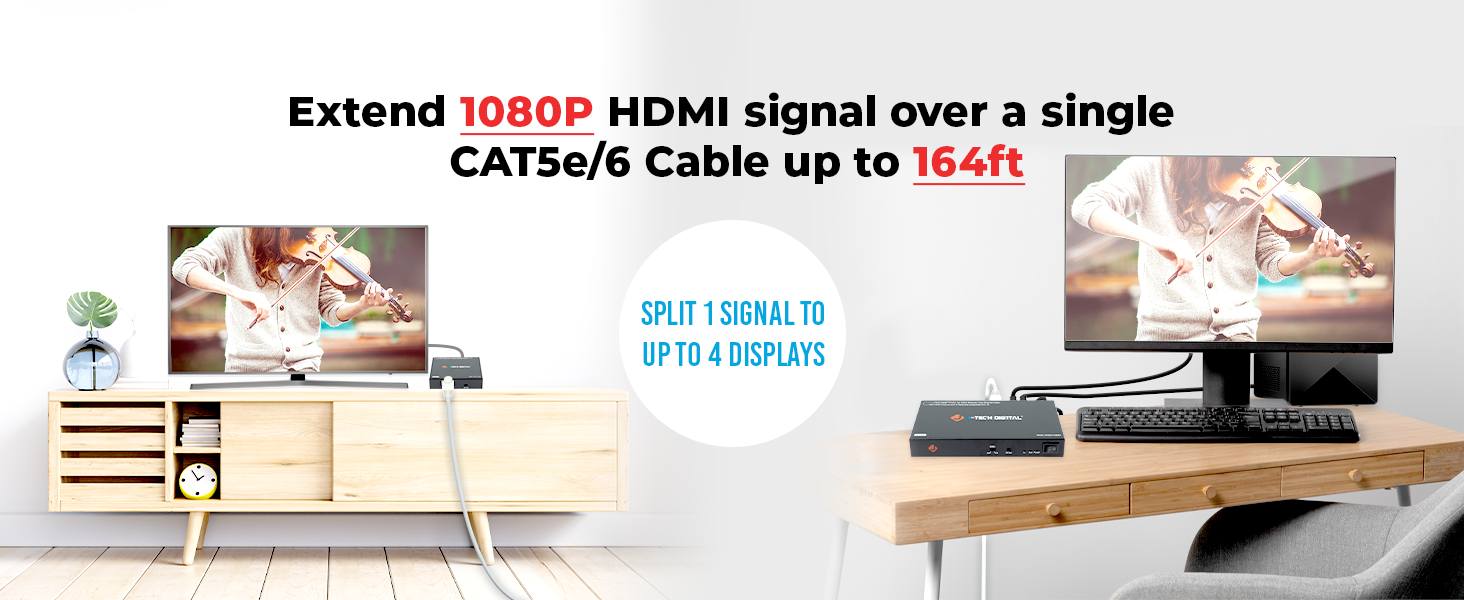

Send 1 HDMI Source Signal To 4 Displays: Features 1 Inputs and 4 Outputs (includes 4 receivers), easily send a 1080P@60Hz HDMI A/V signal up to 164ft. over a single CAT5e/6 ethernet cable. Please note that this extender will mirror your source device signal on all connected displays
-

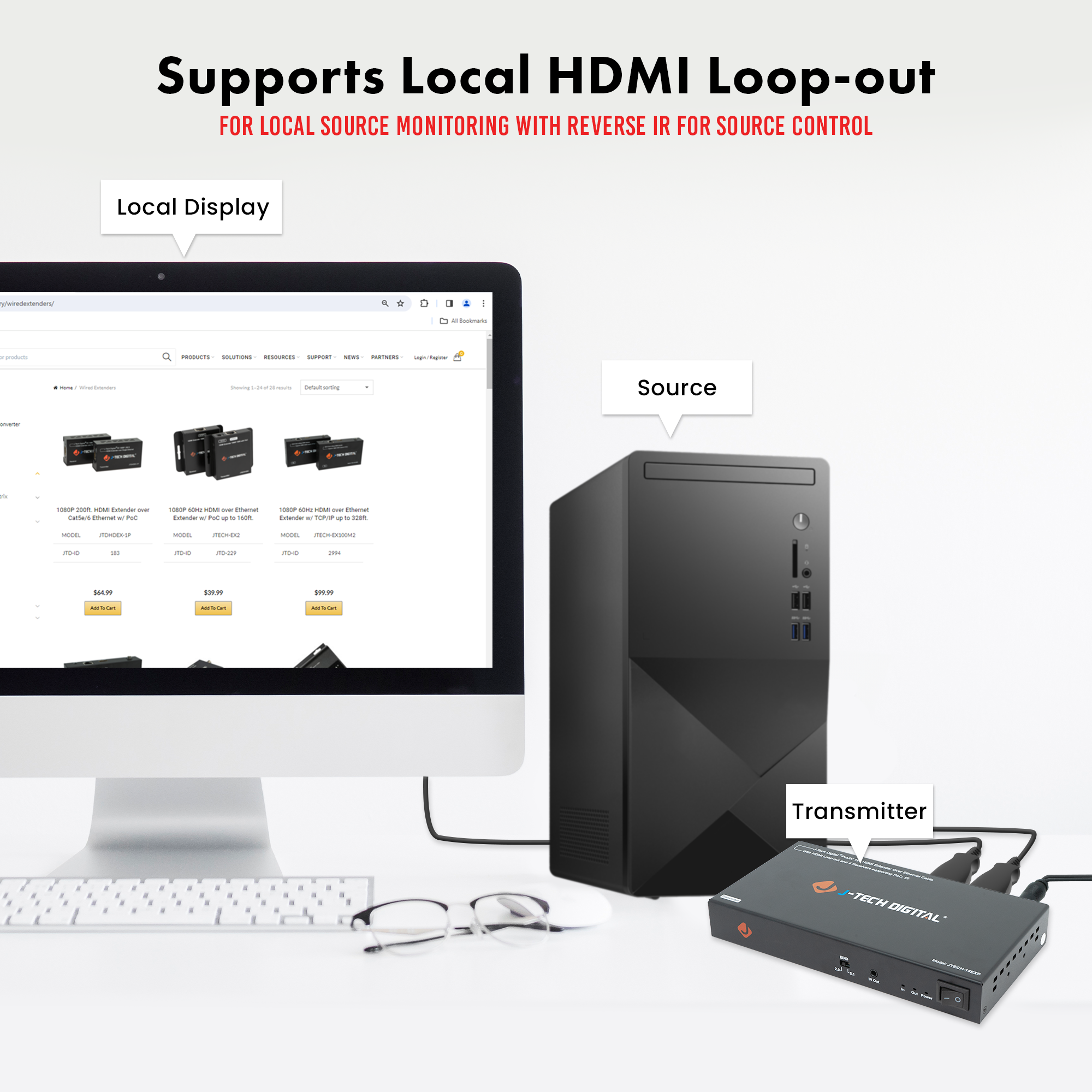

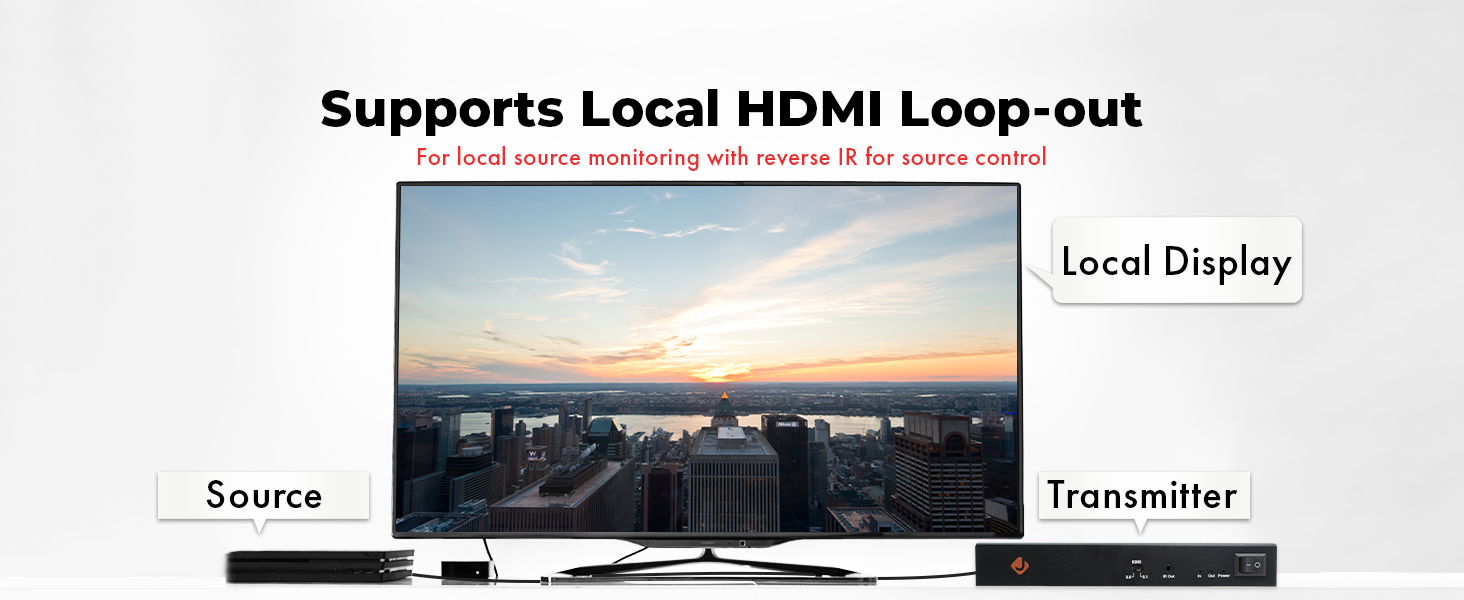

Local HDMI Loop-out Port: In additional to support for up to 4 remote displays, take advantage of the local HDMI loop-out port on the transmitter, and connect an additional 5th local display to monitor your whole setup with ease
-

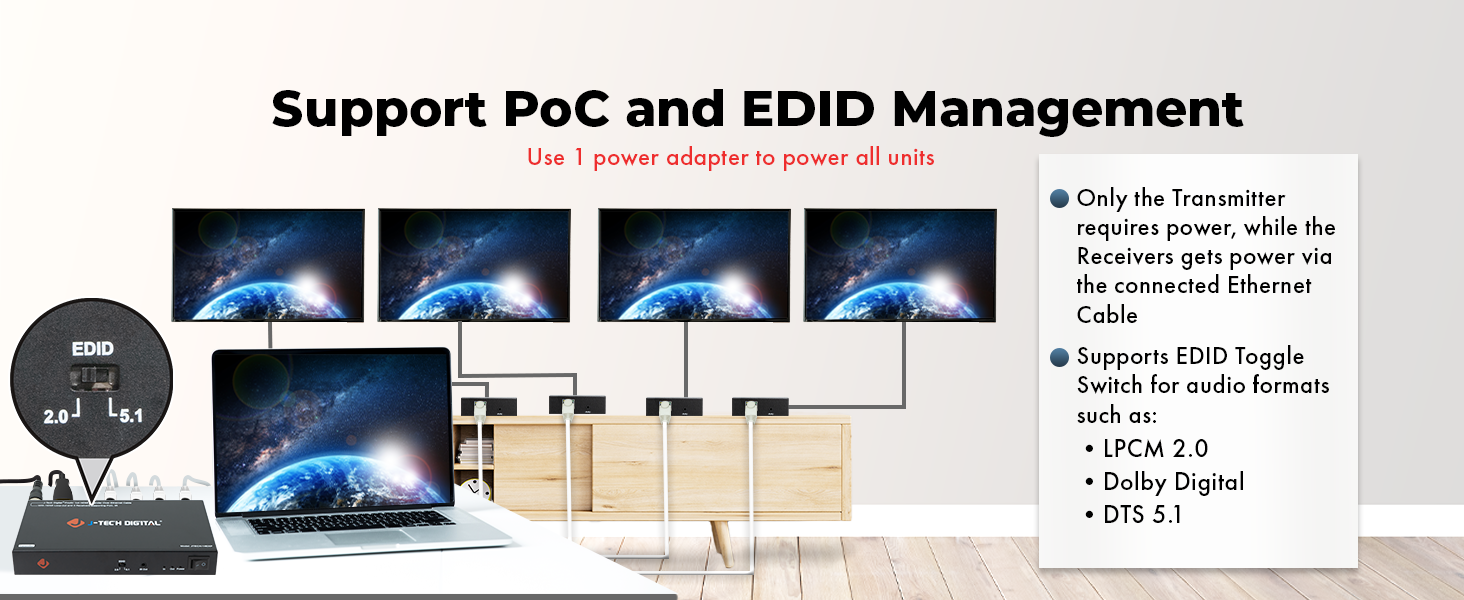

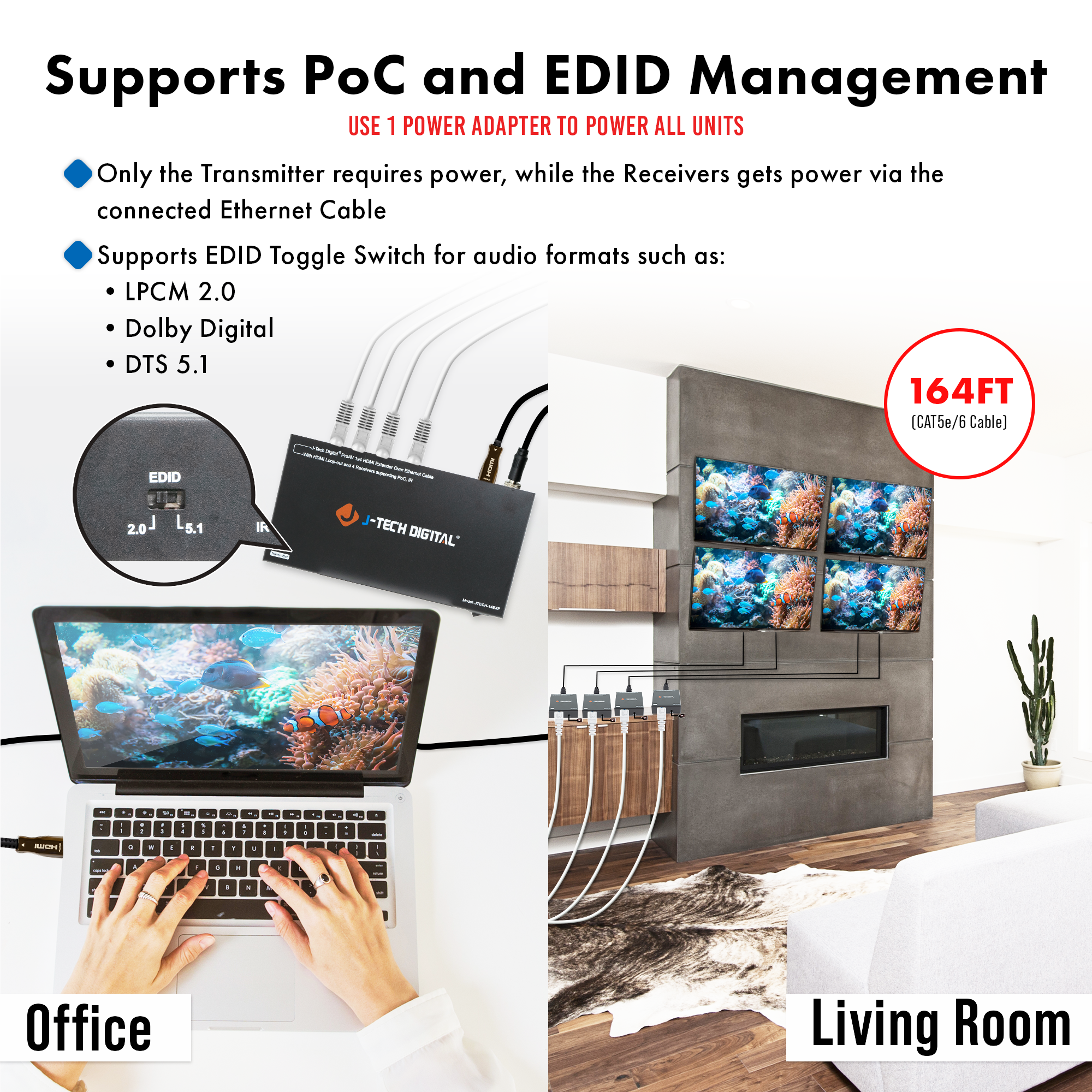

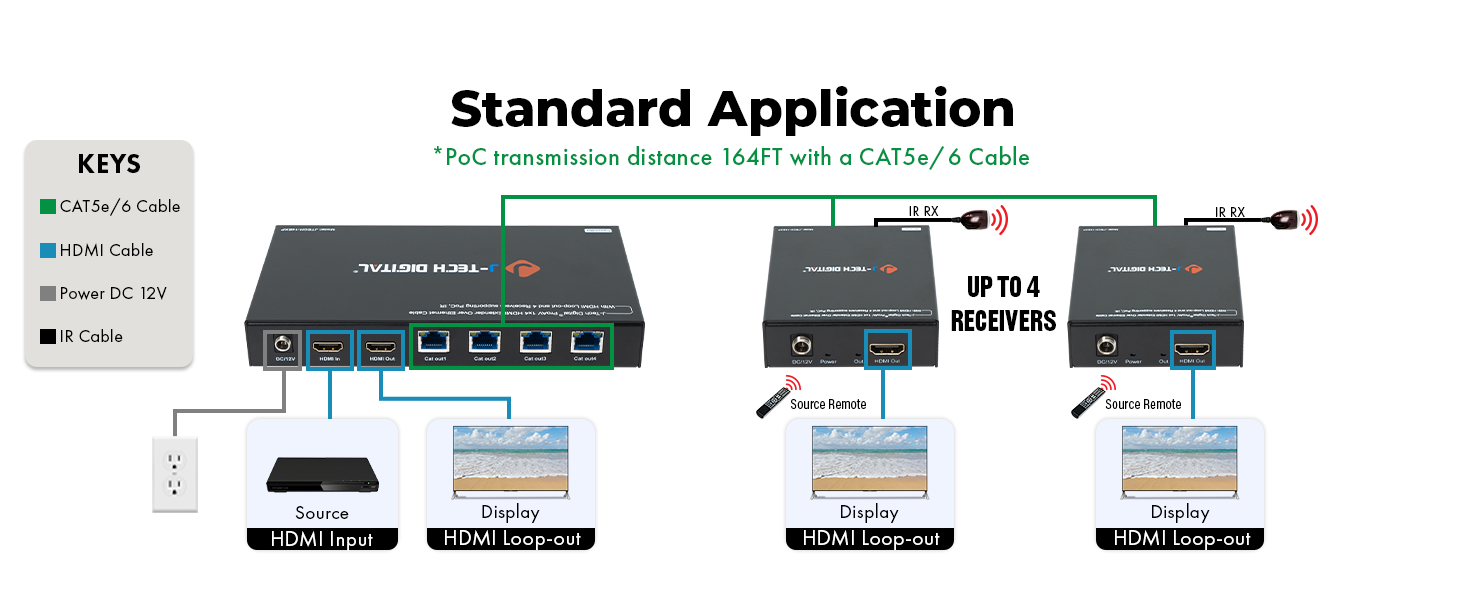

Power Over Cable (PoC) Function: Get rid of extra cables and power adapters. Keep your setup neat with the PoC function, where the power adapter is only required to be connected to the transmitter, and the receivers will get power via the connected ethernet cables
-
IR Control & Digital Audio with EDID Switch: Features IR Control to help control the source devices from the display’s location. Supports digital audio formats along with a EDID toggle switch to help achieve the best audio setting compatibility between your source and display
Information
- Brand
- J-Tech Digital
- MPN
- JTD-3021
- Model
- JTECH-14EXP
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Specifications

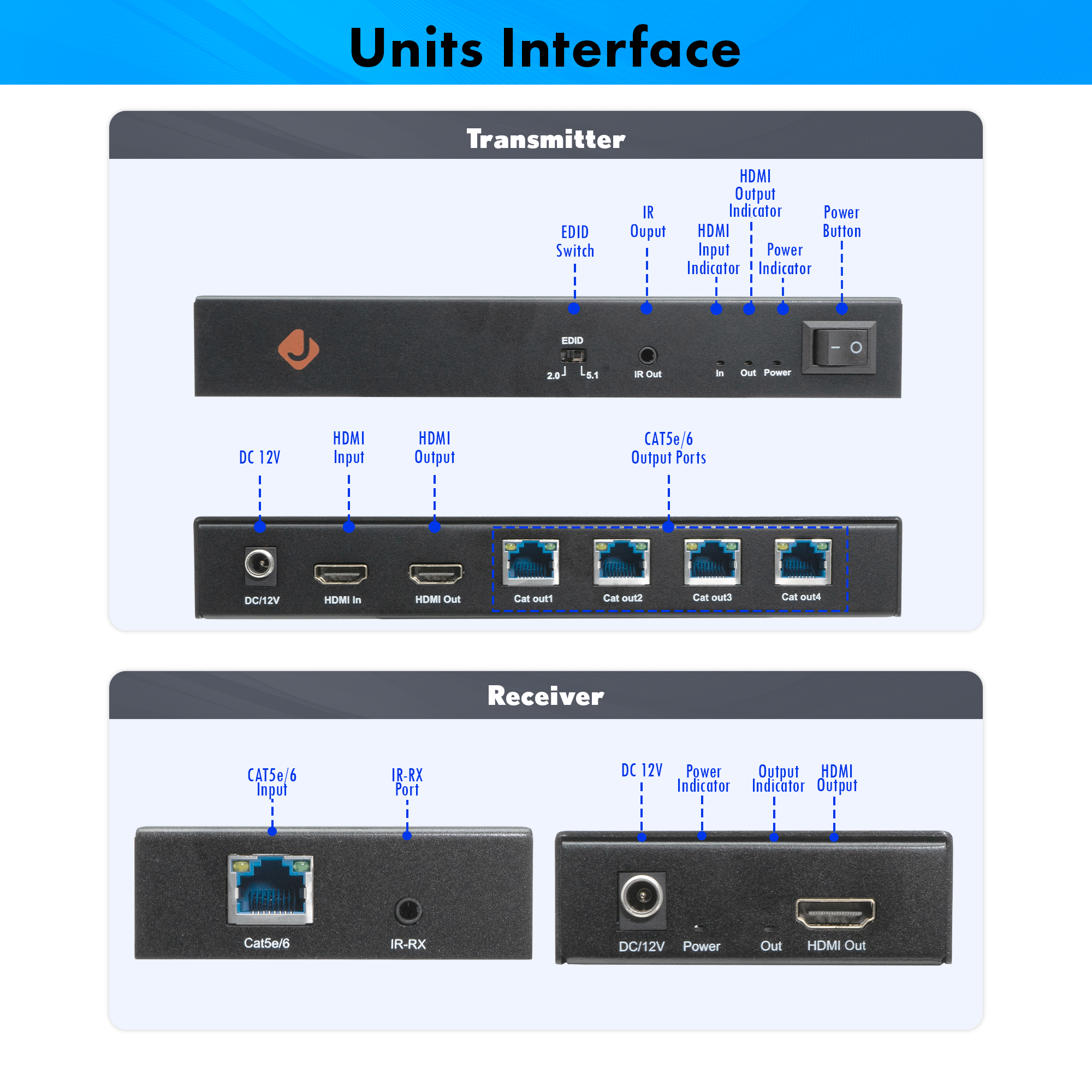

- Transmitter Ports
- 1 x HDMI Input, 1 x HDMI Local Loop Output, 4 x RJ45 Output, 1 x IR TX
- Receiver Ports
- 1 x RJ45 Output, 1 x HDMI Output, 1 x IR RX
- Resolutions
- 1080P 60 / 50 / 30 / 25 / 24 Hz, 1080i 60Hz, 720P 60 / 50 / 30 Hz, 576P 50Hz, 576i 50Hz, 480P 60Hz, 480i 60Hz
- HDMI Version
- 1.4
- Color Space
- RGB, YUV 4:4:4 / 4:2:2
- Audio Format Support
- LPCM 2.0 / LPCM 7.1 / DTS 7.9 / AC-3-5.1
- Max Data Speed
- 6Gbps
- Max Clock
- 150Mhz
- Power Consumption
- DC 12V Input

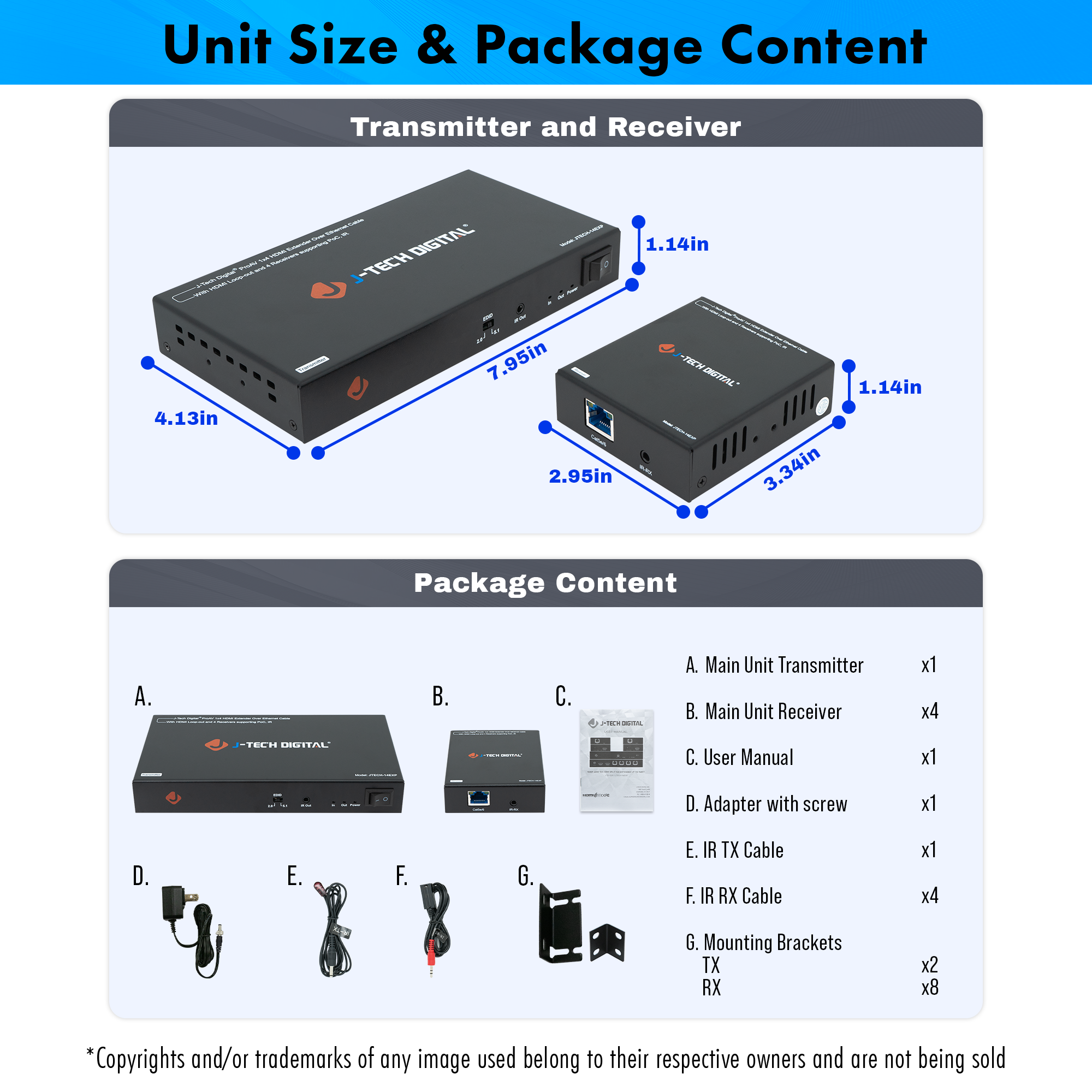

What's in the box
- 1 x Transmitter
- 4 x Receiver
- 1 x IR TX Cable
- 4 x IR RX Cable
- 1 x Power Adapter
- 2 x TX mounting brackets
- 8 x RX mounting brackets
- 1 x User manual
Frequently asked questions
Resources
File | Version |
---|---|
User Manual | 1.0 |
