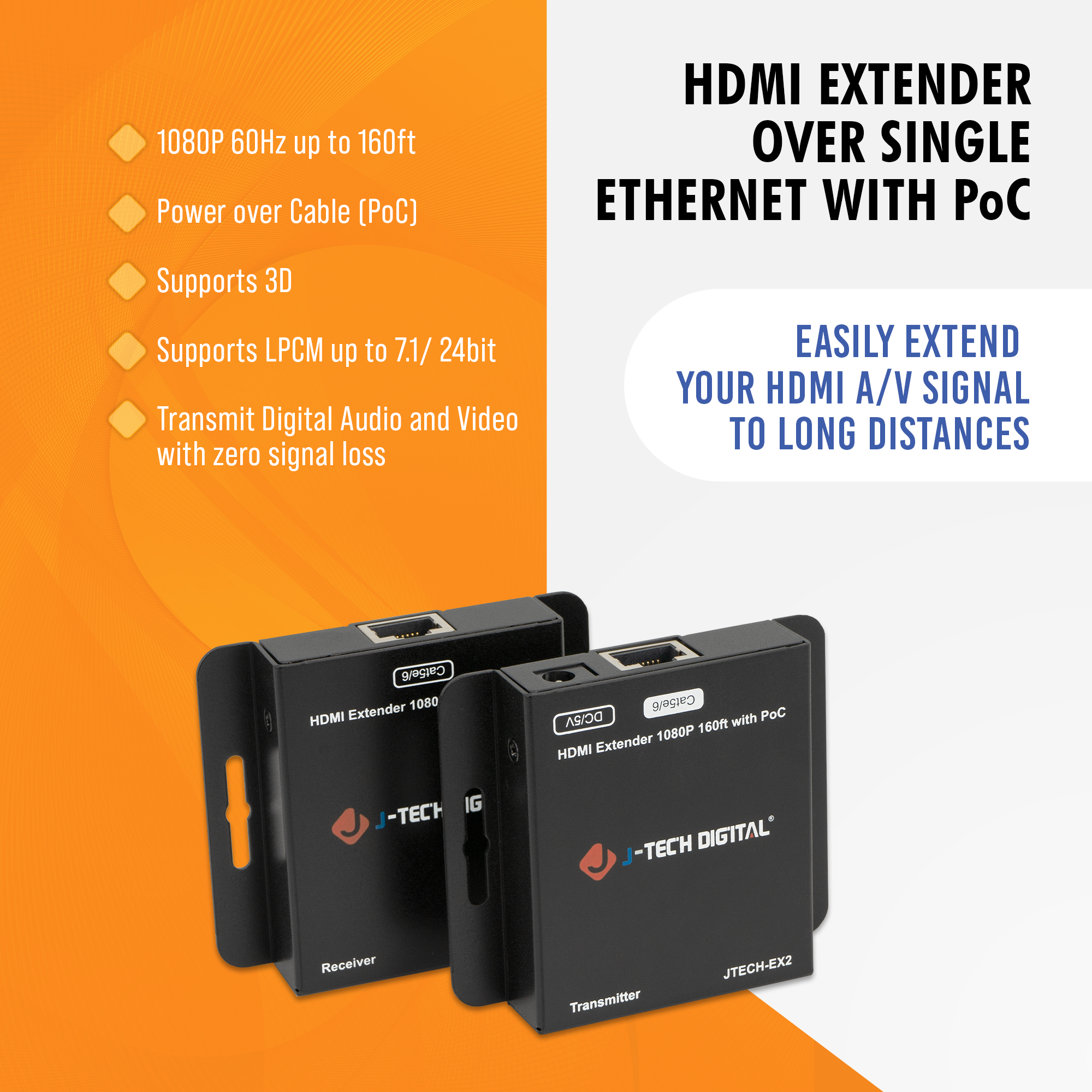

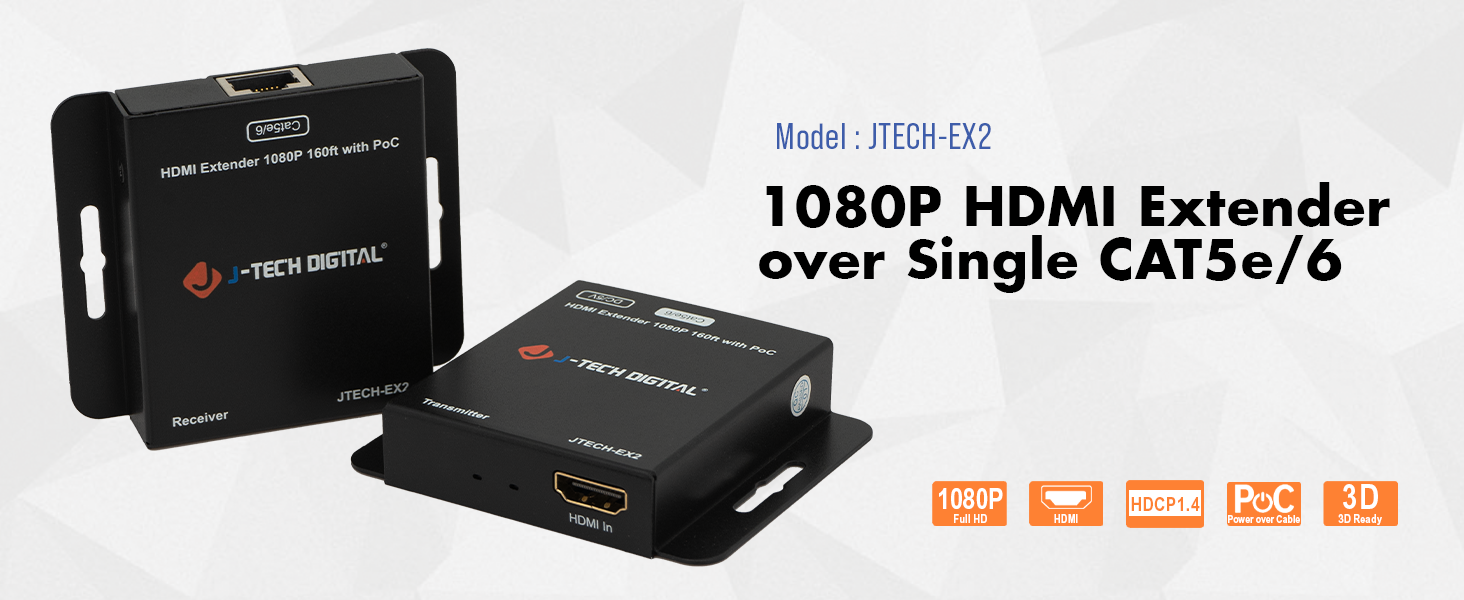

1080P 60Hz HDMI Extender Over Ethernet w/ PoC (160ft.)
-

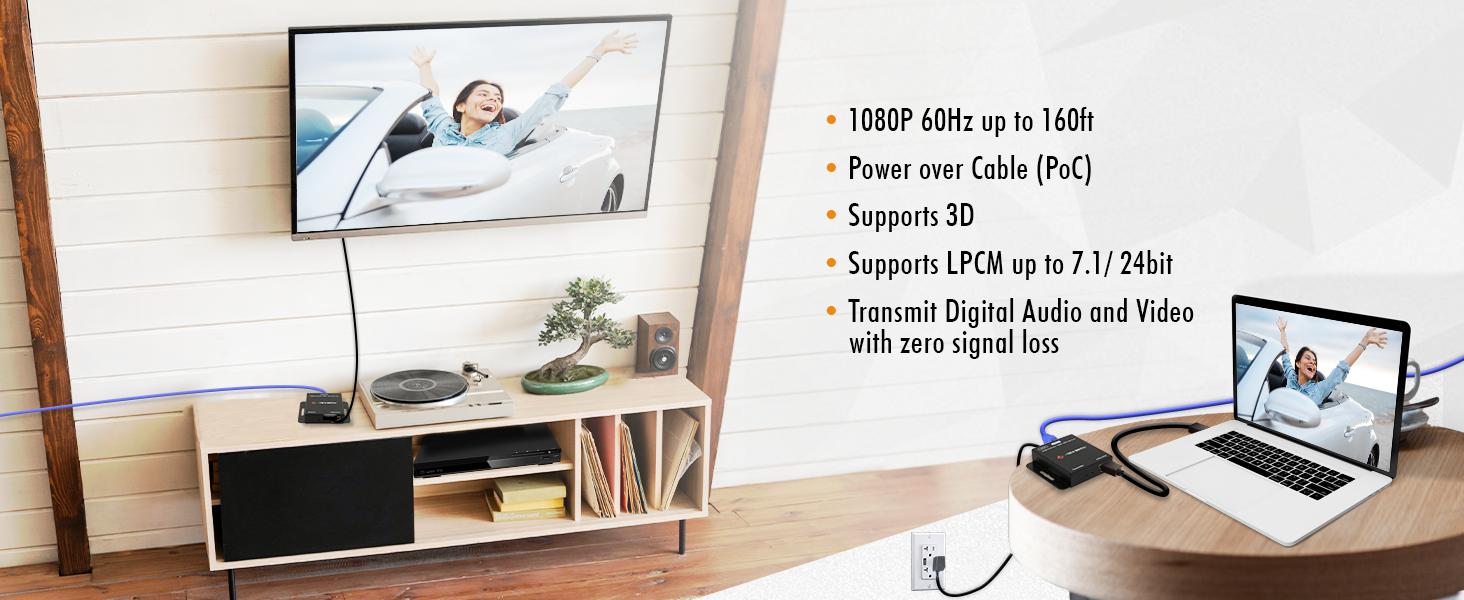

Supports 1080P 60Hz Resolution: Enjoy superior video quality along with a smooth-flowing visual experience. With support up to 1080P Full HD resolution at 60Hz, this extender is perfect for any commercial or residential install
-

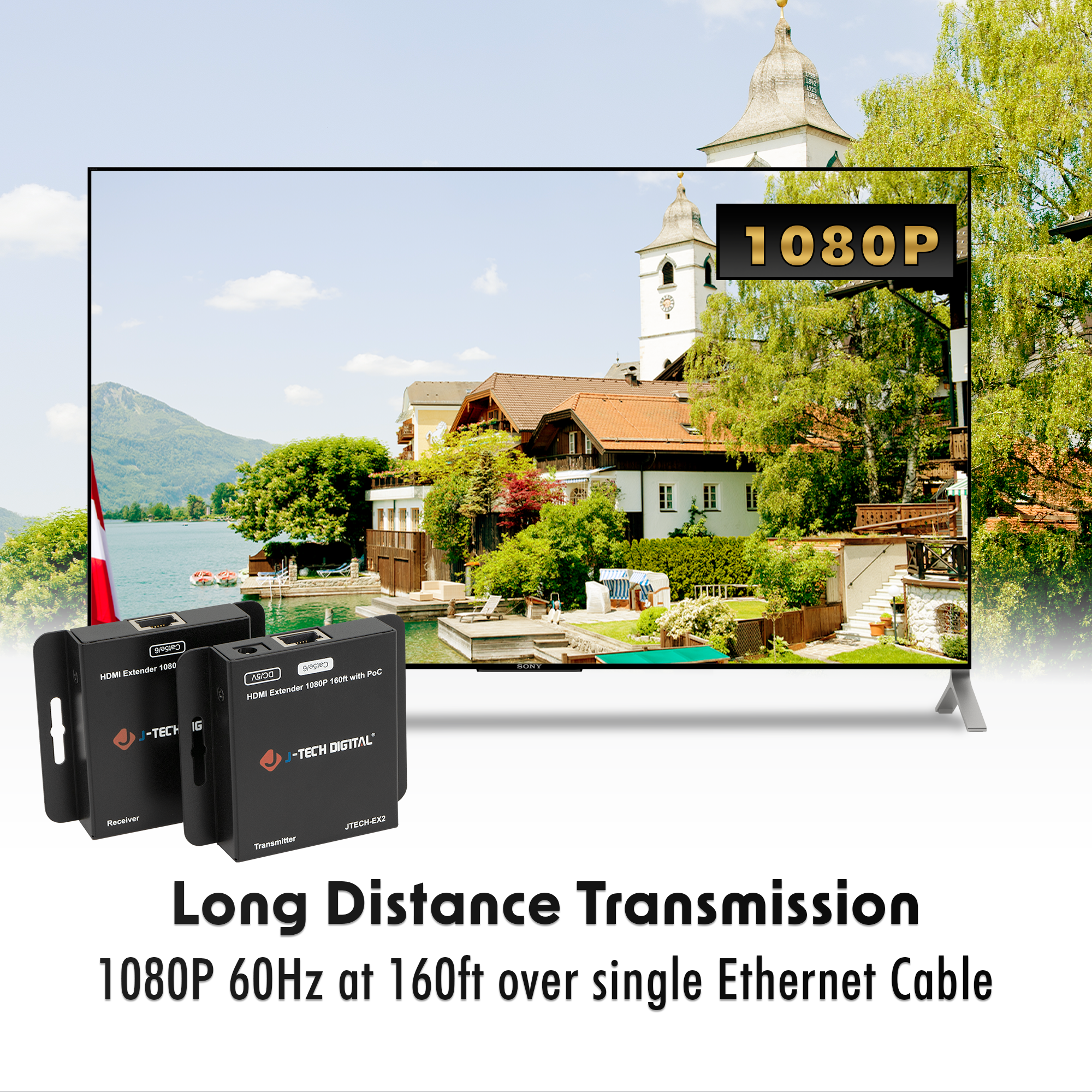

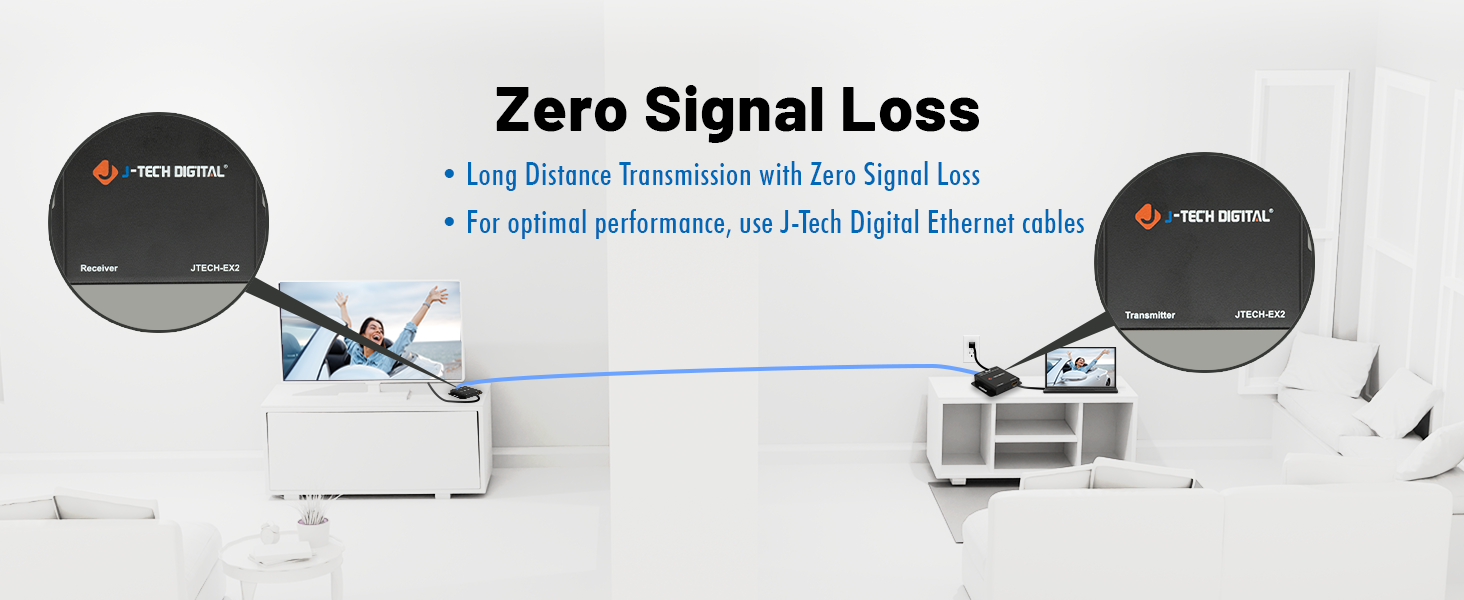

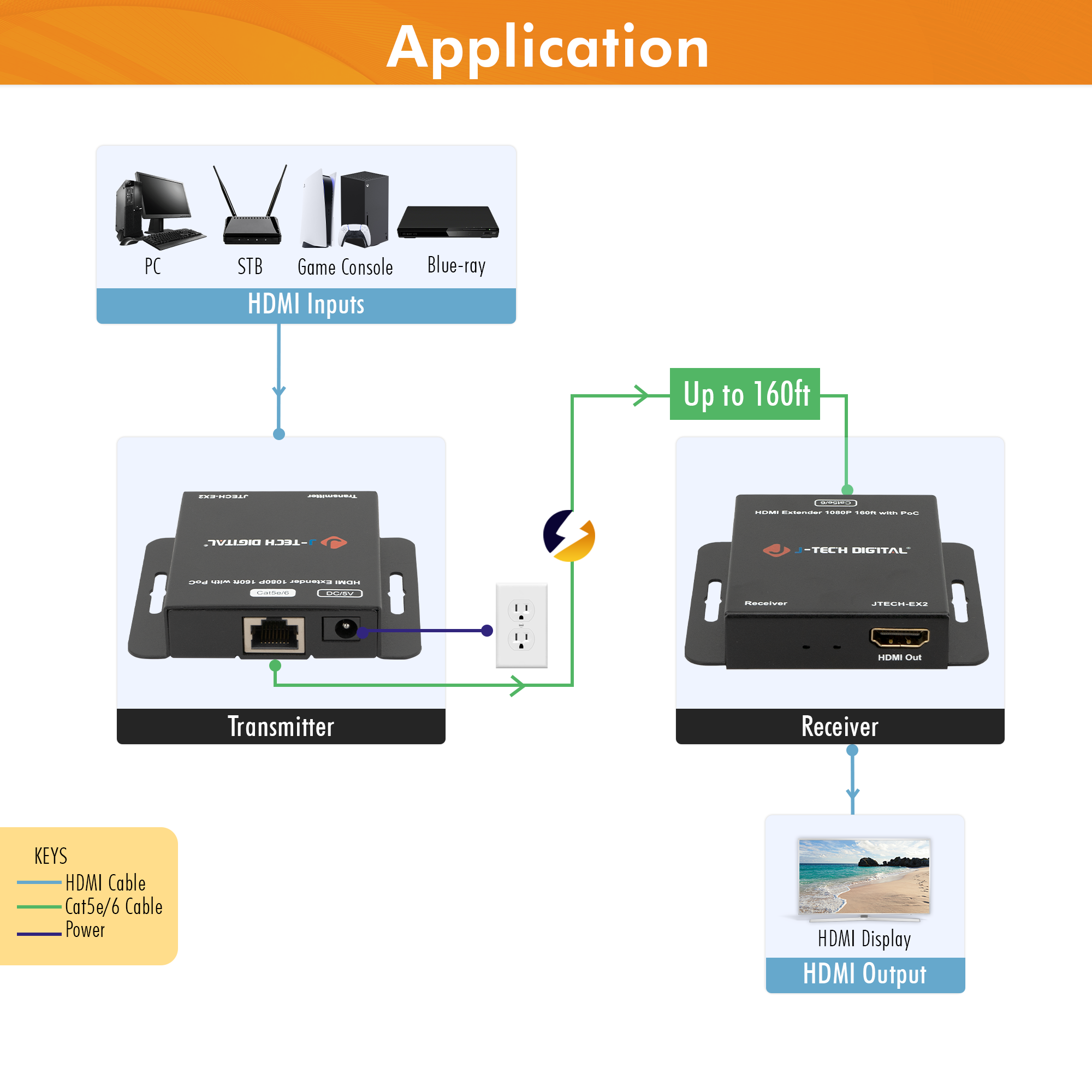

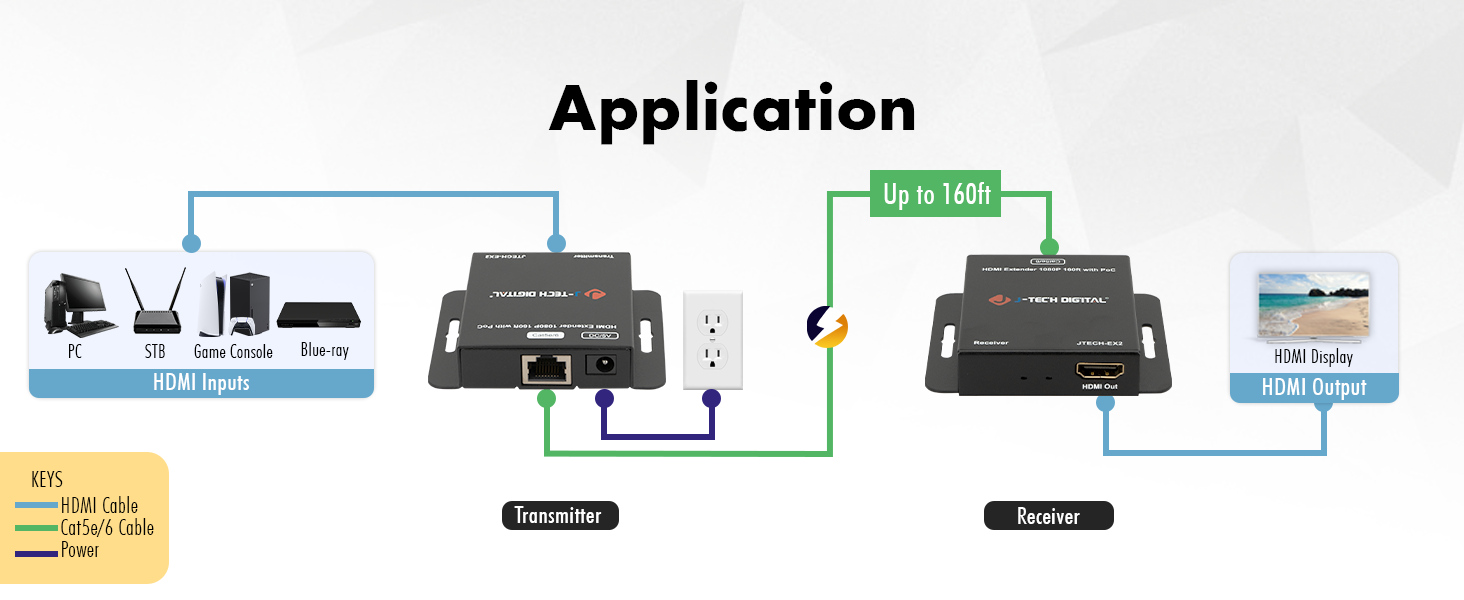

HDMI Over Single Ethernet Up To 160Ft.: Easily extend your HDMI signal up to 160ft. over a single ethernet cable with zero signal loss. Also supports digital audio formats so that you can enjoy you content thoroughly
-

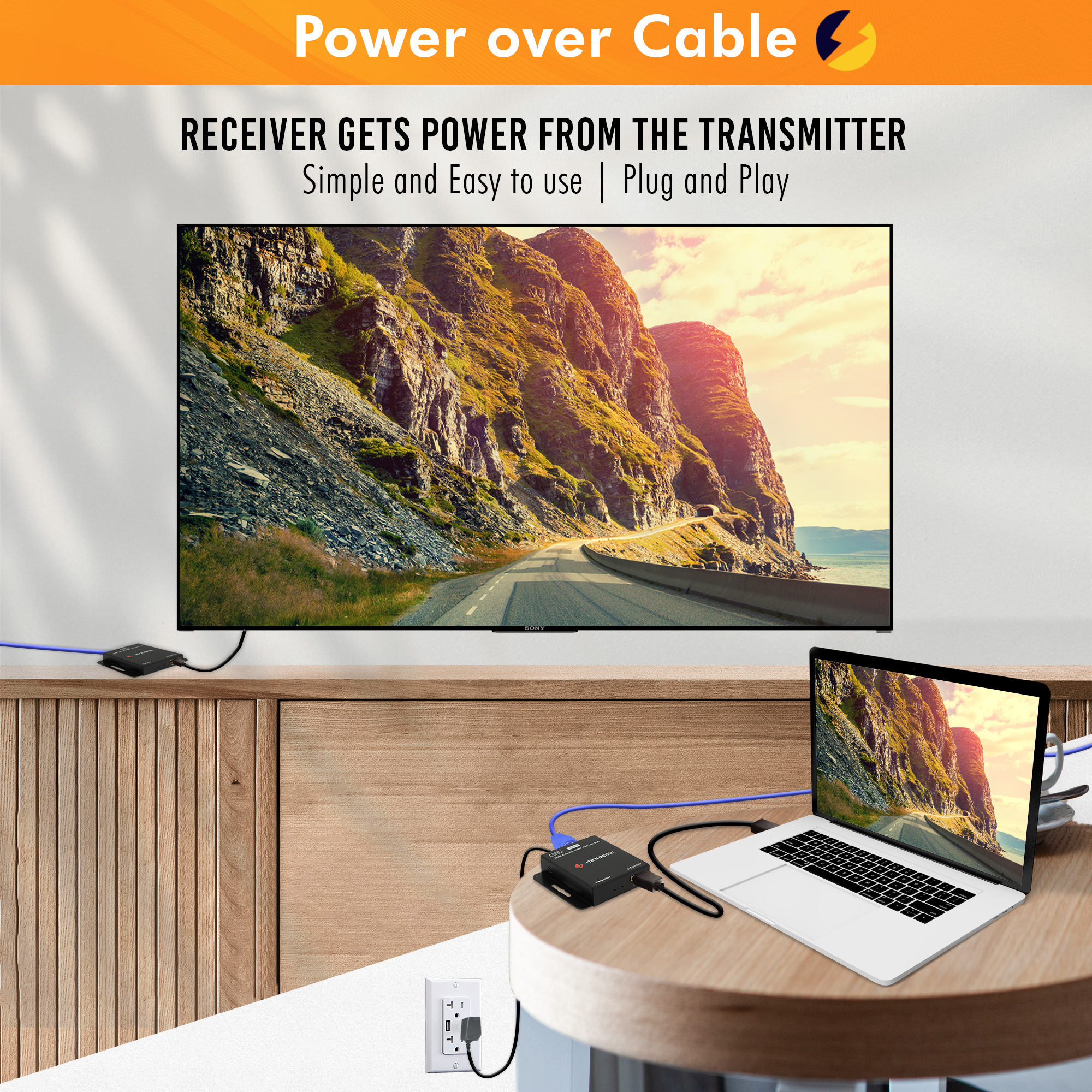

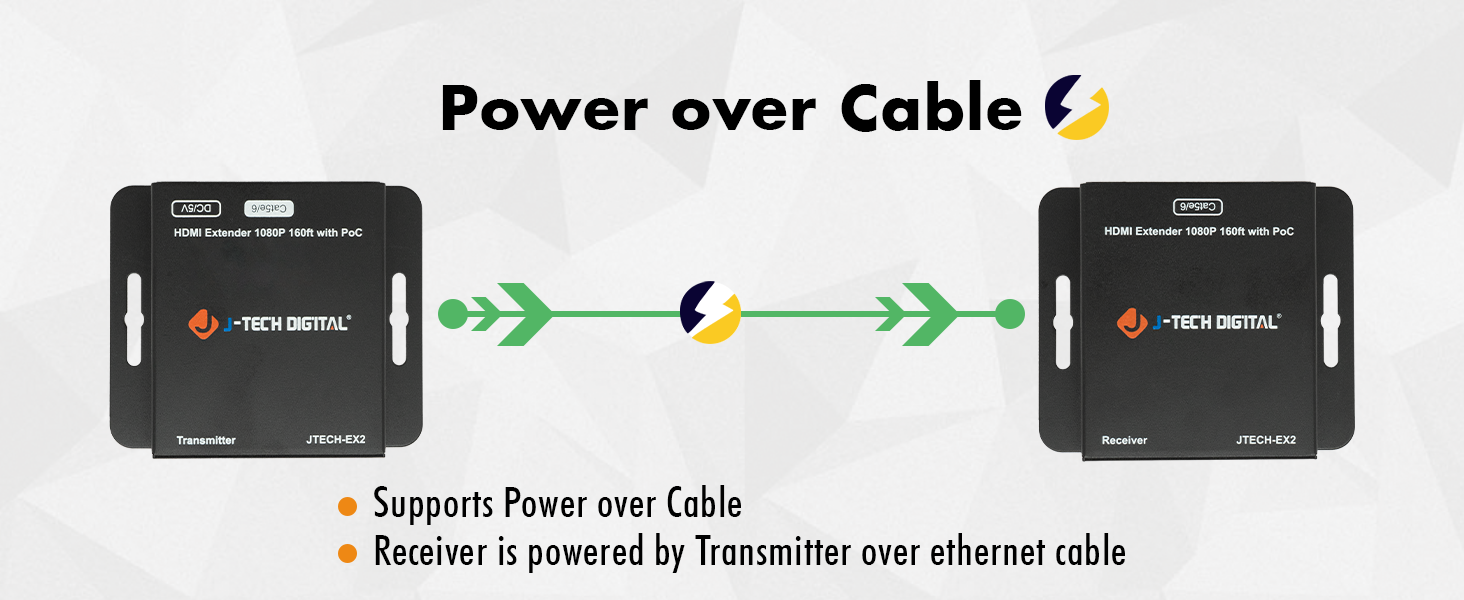

Power Over Cable Function: Say yes to less cables! This extender only requires 1 power adapter on the transmitter side, which powers the receiver via ethernet. Helps to keep you install clean and uncluttered
-
Supports 3D feature: Take advantage of the 3D feature! As long as your source device and display support 3D, you can use this extender to extend 3D content up to long distances without any hassle! For optimal performance, use the J-Tech Digital Customized Cat6 Ethernet cable. Different cable lengths are available
Information
- Brand
- J-Tech Digital
- MPN
- JTD-229
- Model
- JTECH-EX2
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Specifications

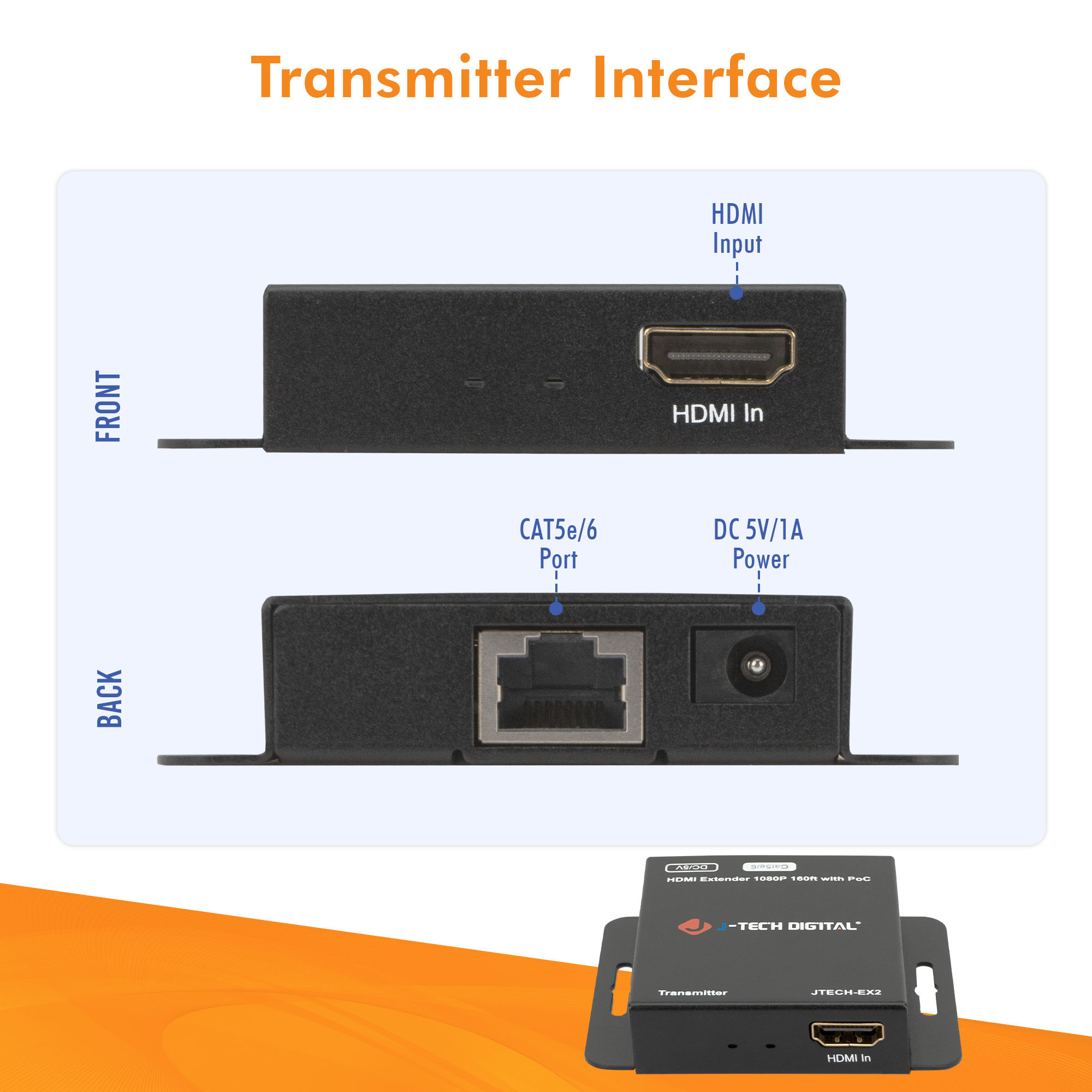

- Transmitter Ports
- 1 x HDMI Input, 1 x Cat5e/6 Port, 1 x DC 5V/1A Power

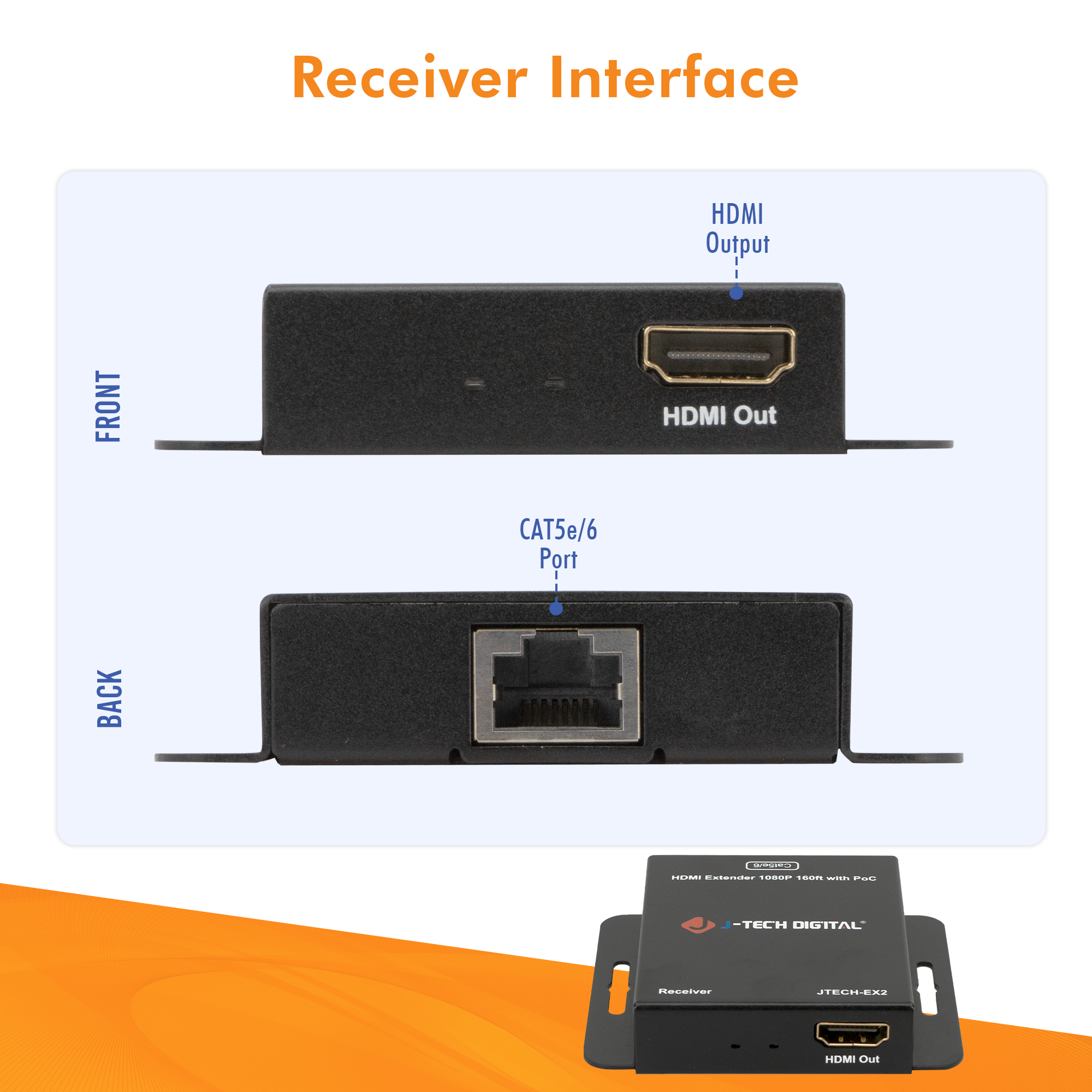

- Receiver Ports
- 1 x HDMI Output, 1 x Cat5e/6 Port
- Input Video Signal
- 0.5 – 1.0 Volts P-P
- Input DDC Signal
- 5 Volts P-P (TTL)
- Video Formats
- 720P, 1080i, 1080P
- Operating Temperature Range
- 0 - +40°C (32 0 +104°F)
- Operating Humidity Range
- 5 – 90% RH (No condensation)
- Transmission Distance
- 160ft. over single Cat5e/6
- Power Consumption
- 2W (Max)

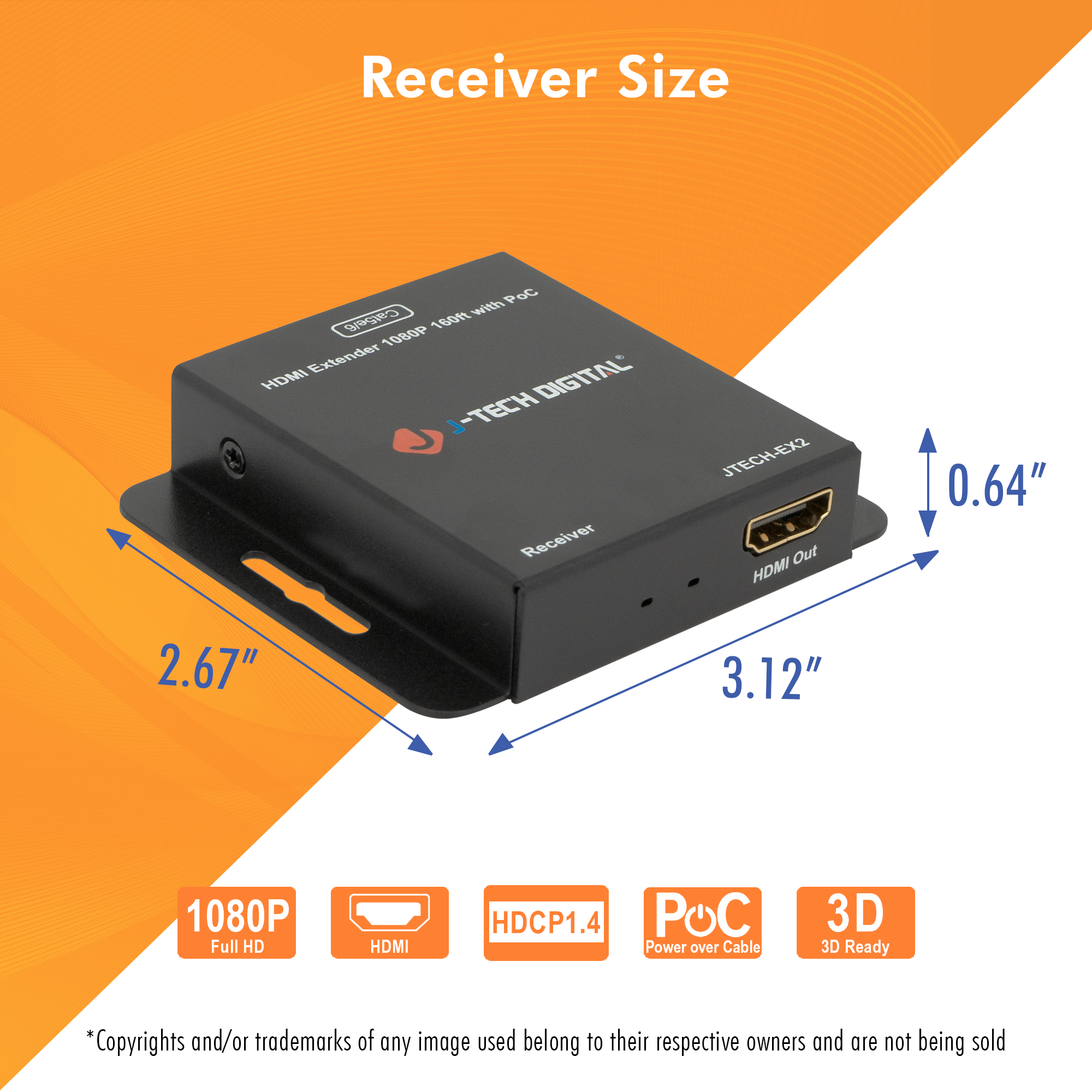

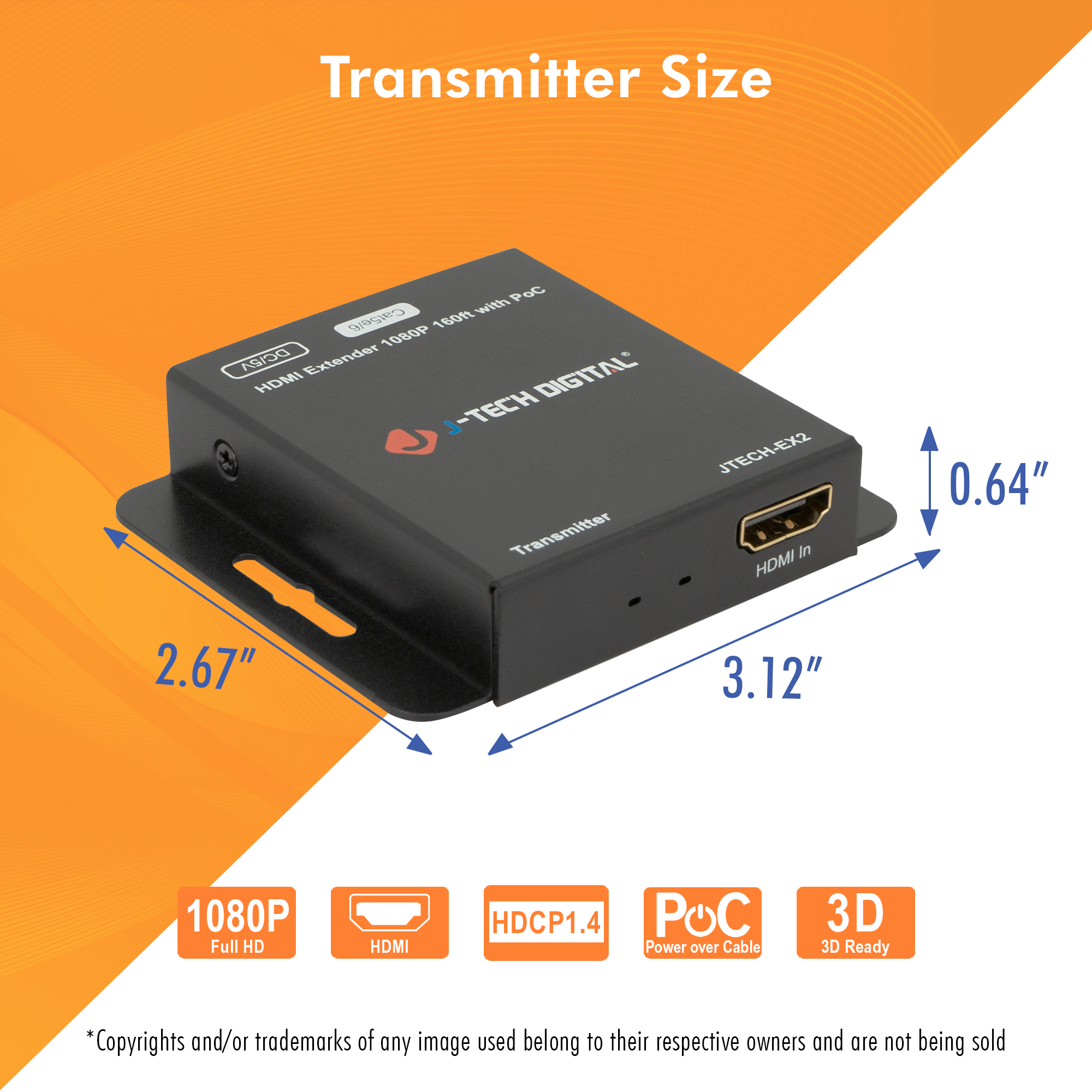

- Dimensions (L x W x H)
- TX: 79.3mm x 68mm x 16.5mm, RX: 79.3mm x 68mm x 16.5mm
- Net Weight
- 232g / 0.5lbs
- Audio Formats
- DTS-HD Master Audio, Dolby True-HD

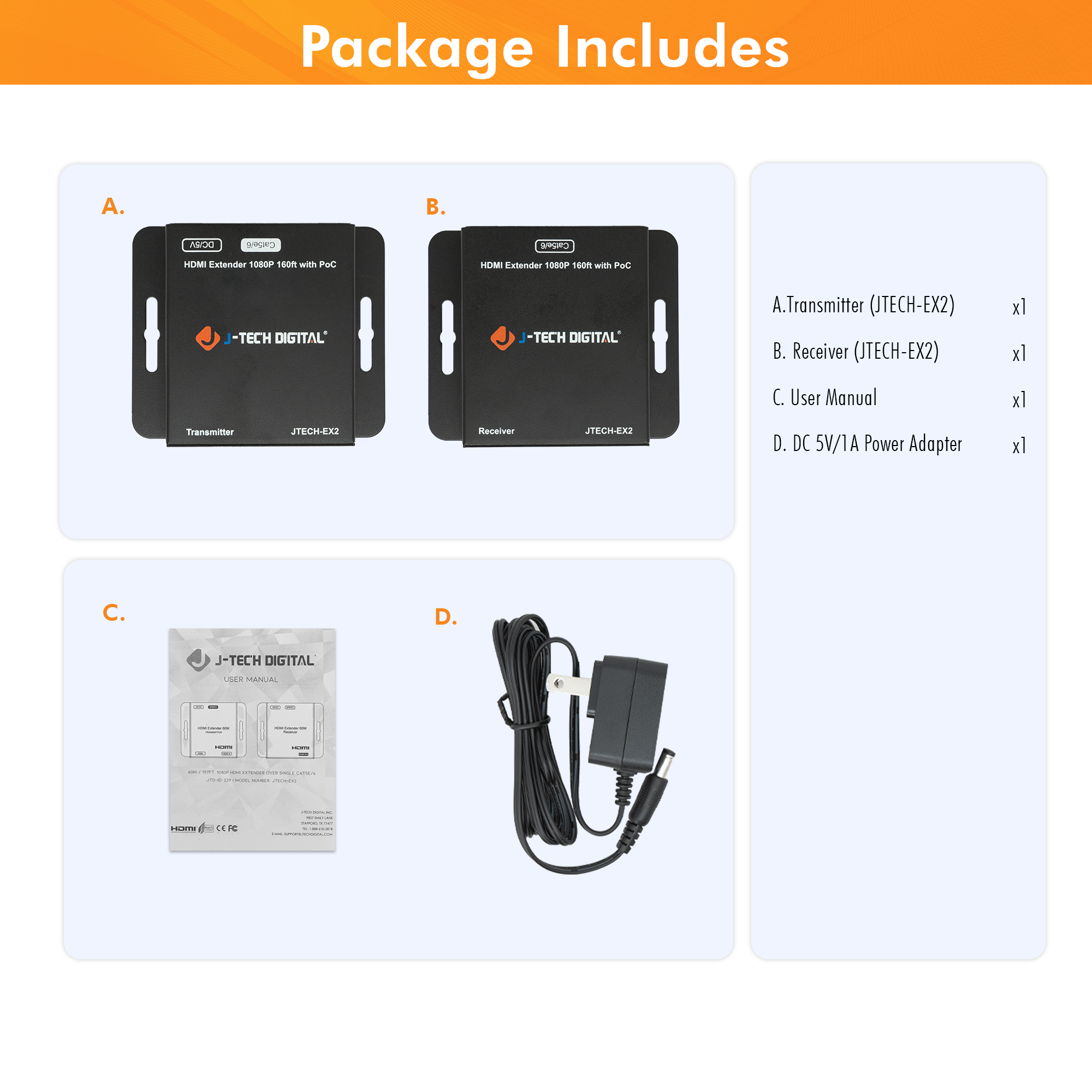

What's in the box
- 1 x Transmitter
- 1 x Receiver
- 1 x DC 5V/1A Power Adapter
- 1 x User Manual
Frequently asked questions
Resources
File | Version |
---|---|
User Manual | 1.0 |
