4K 60Hz 5x1 HDMI Switch with Auto-Switching

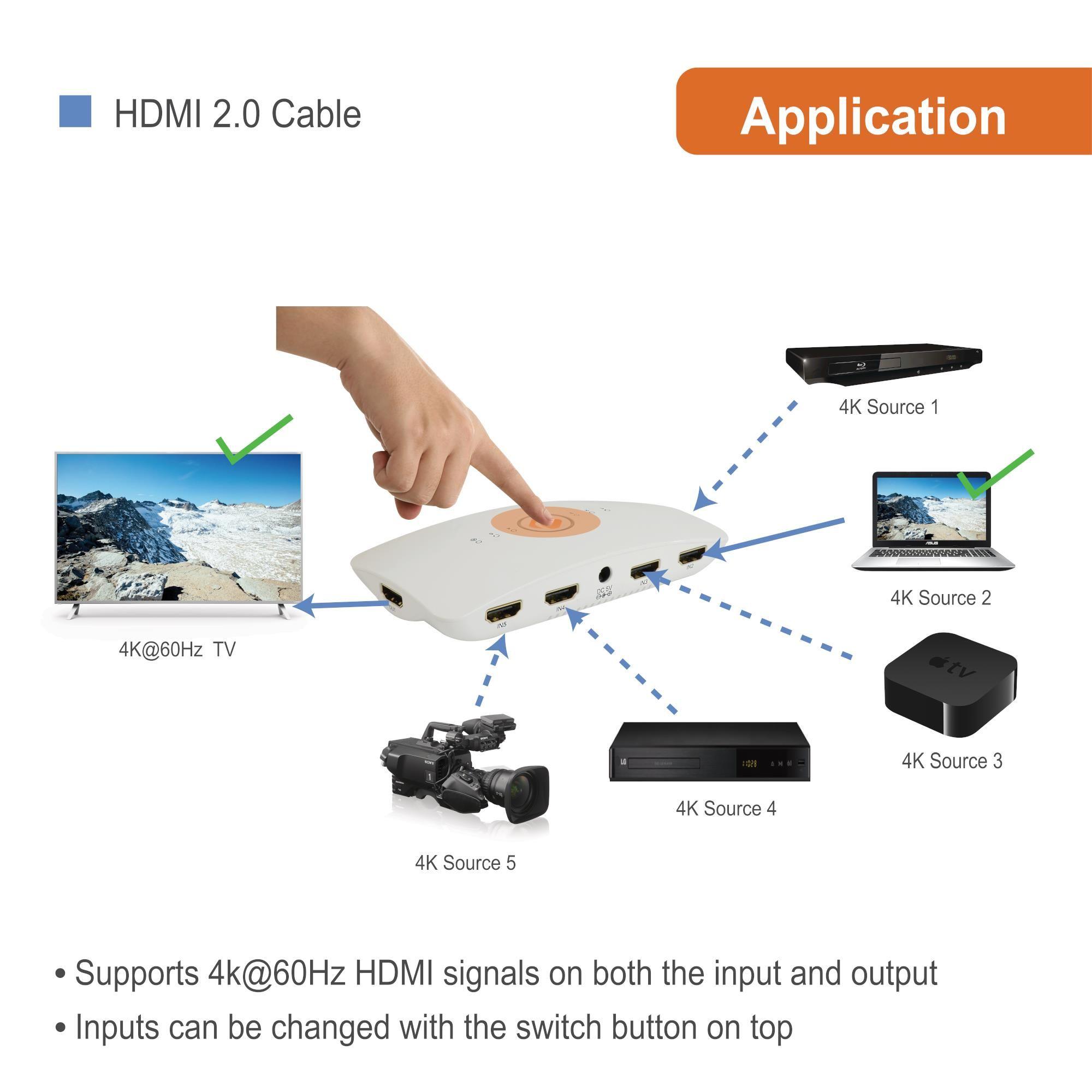

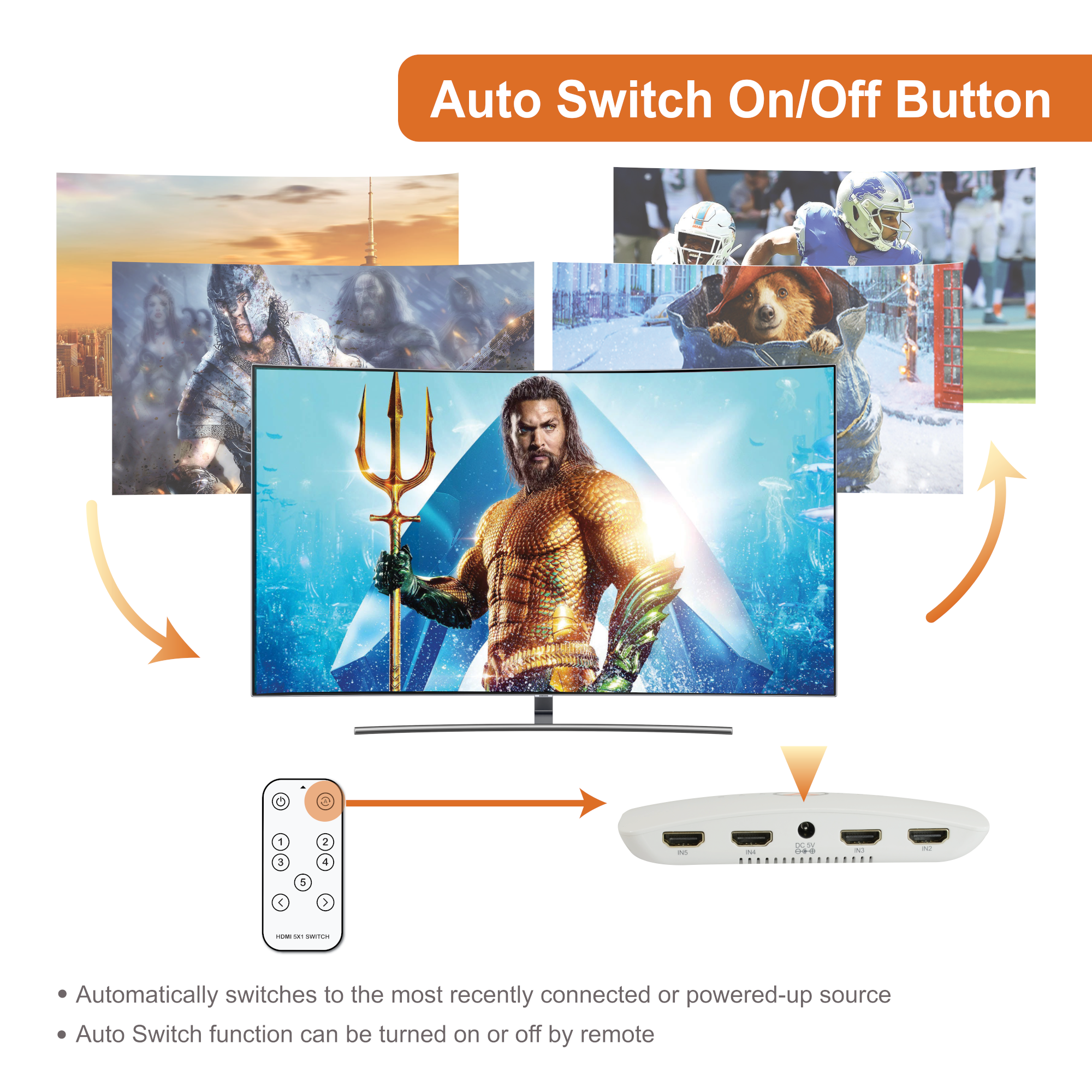

The JTECH-18GSW5 HDMI switch is the best AV solutions for users with multiple 4K devices who look to consolidate all their connections to 1 central location. With this switch, you can experience the highest quality 4K signals, including HDR and HDR12bit. With the JTECH-18GSW5, you also get the best sound available, such as Dolby Digital, Dolby Digital+, Dolby True-HD, Dolby Atmos, DTS, DTS-HD, and DTS:X. Switching inputs is simple thanks to the auto-switch function of the JTECH-18GSW5, which will automatically switch to the most recently powered on device. This function can be turned on and off with the included IR remote that also allows you to cycle through your inputs, or change the device based on the numbered input. If you are looking to simplify your entertainment system, the JTECH-18GSW5 is the best solution, allowing for the ultimate quality with the most simple and convenient functionality.
✅ HDMI: 2.0, 1.4
✅ HDCP Compliance: 2.2, 1.4
✅ HDMI Bandwidth: 18Gbps
✅ HDMI Inputs: 5
✅ HDMI Outputs: 1
✅ HDMI Resolutions: 4K@60Hz, 1080p/1080i@60Hz, 720p/720i@60Hz, 480p/480i@60Hz
✅ Audio Formats: Dolby Digital, Dolby Digital+, Dolby True-HD, Dolby Atmos, DTS, DTS-HD, and DTS:X
✅ Power: DC 5V/1A
Information
- Brand
- J-Tech Digital
- MPN
- JTD-386
- Model
- JTECH-18GSW5
Benefits
- Free delivery over $50
- Free return within 30 days.
- Hassle-free Warranty
- Lifetime Technical Support
Drivers
CONTROL4
Specifications

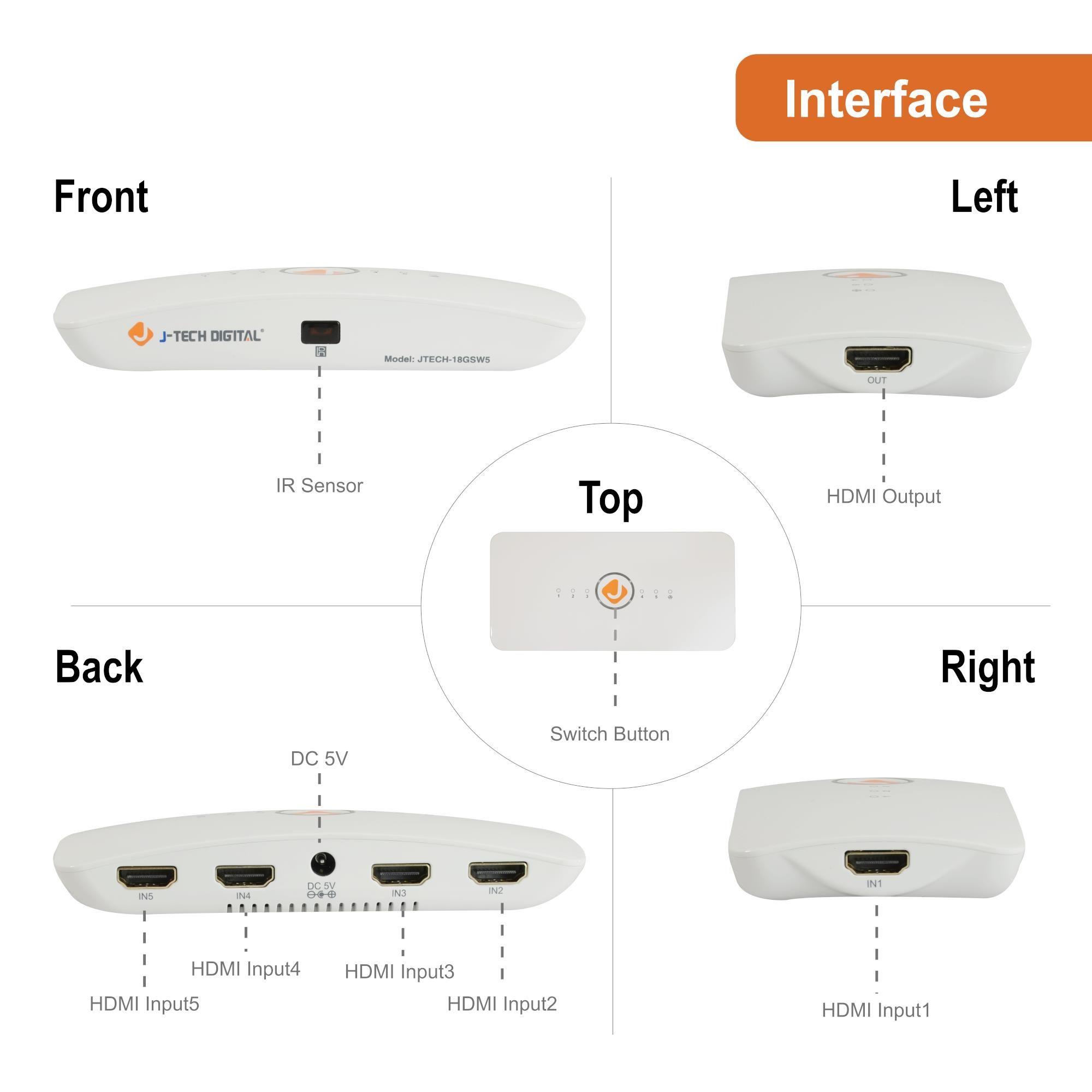

- HDMI Input
- 5
- HDMI Output
- 1
- Resolutions
- 4K@60Hz, 1080p/1080i@60Hz, 720p/720i@60Hz, 480p/480i@60Hz
- Bandwidth
- 18Gbps
- Video Standard
- HDMI 2.0, 1.4; HDCP 2.2, 1.4
- Audio Formats
- Dolby Digital, Dolby Digital+, Dolby True-HD, Dolby Atmos, DTS, DTS-HD, and DTS:X
- Power Supply
- 5V DC 1A
- Connector Gender
- Male-to-Male
- Connector Type
- HDMI
- Net Weight
- 12 ounces

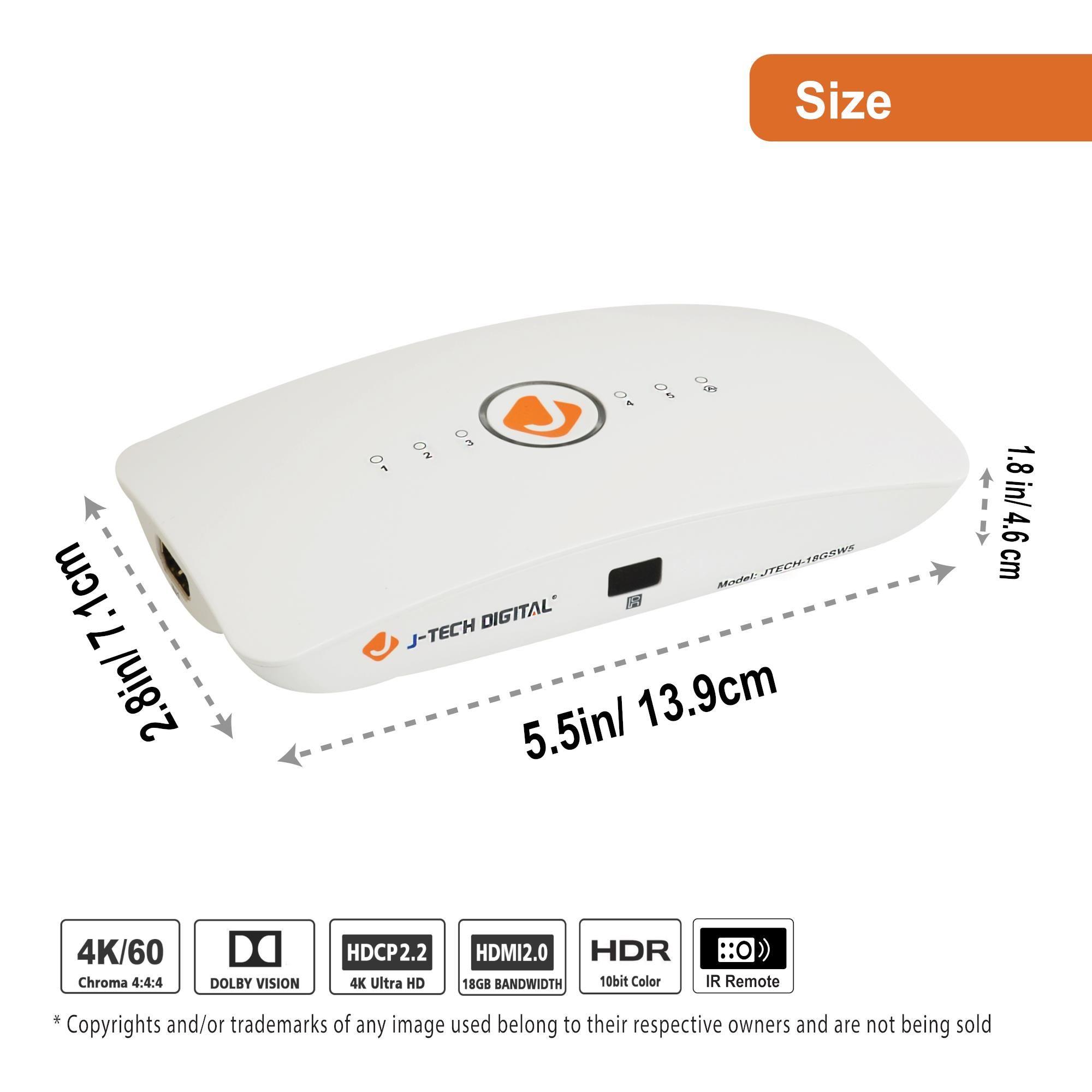

- Dimensions(W x H x D)
- 5.5 x 2.8 x 1.8 inches
What's in the box
- 1 x JTECH-18GSW5 1x 5-port Switch
- 1 x IR Remote
- 1 x USB to DC (5.5mm) power cable
- 1 x User Manual
Frequently asked questions
Resources
| File | Version |
|---|---|
| User Manual | 1.0 |
| IR Codes | 1.0 |
| Control 4 Driver | 1.0 |
