Description:

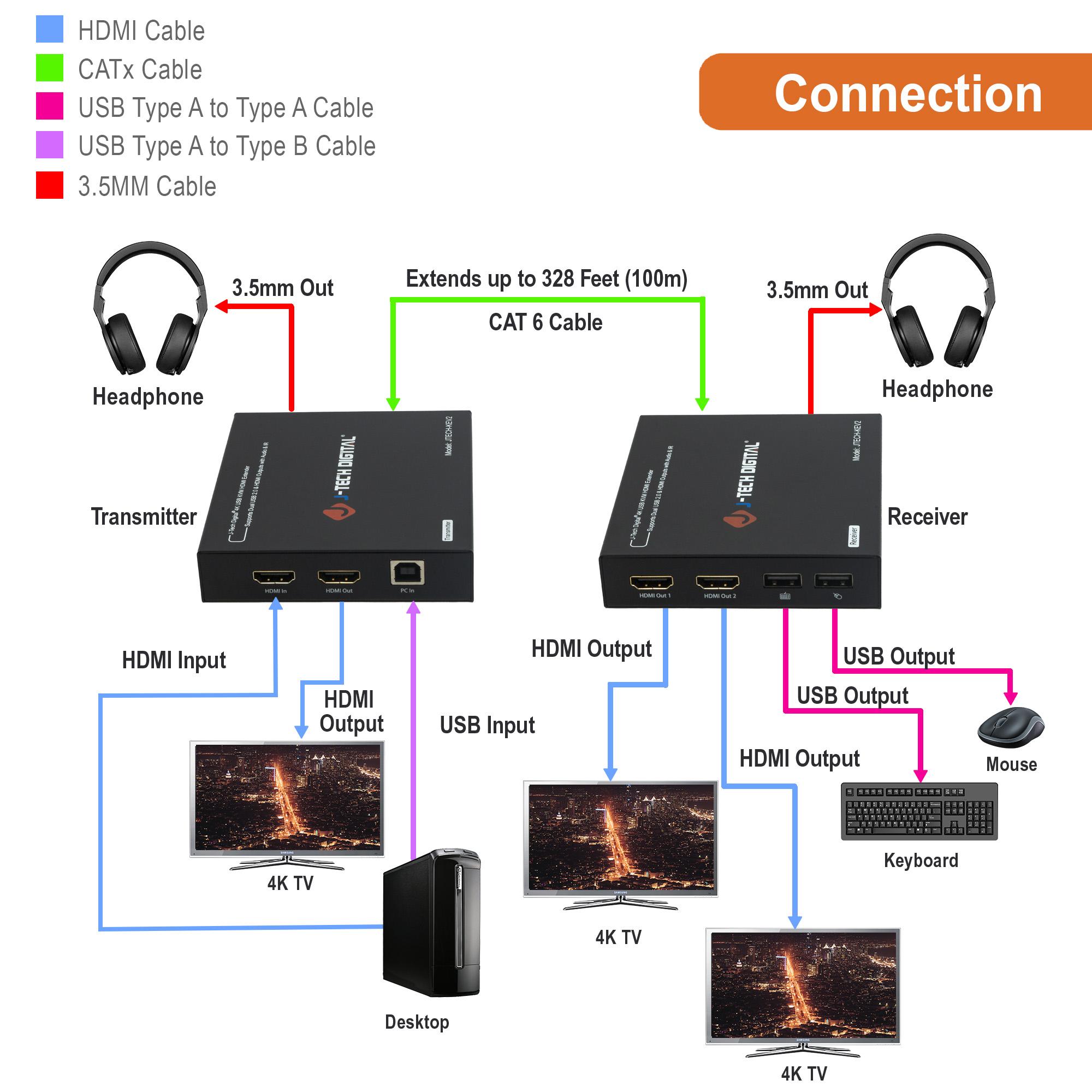

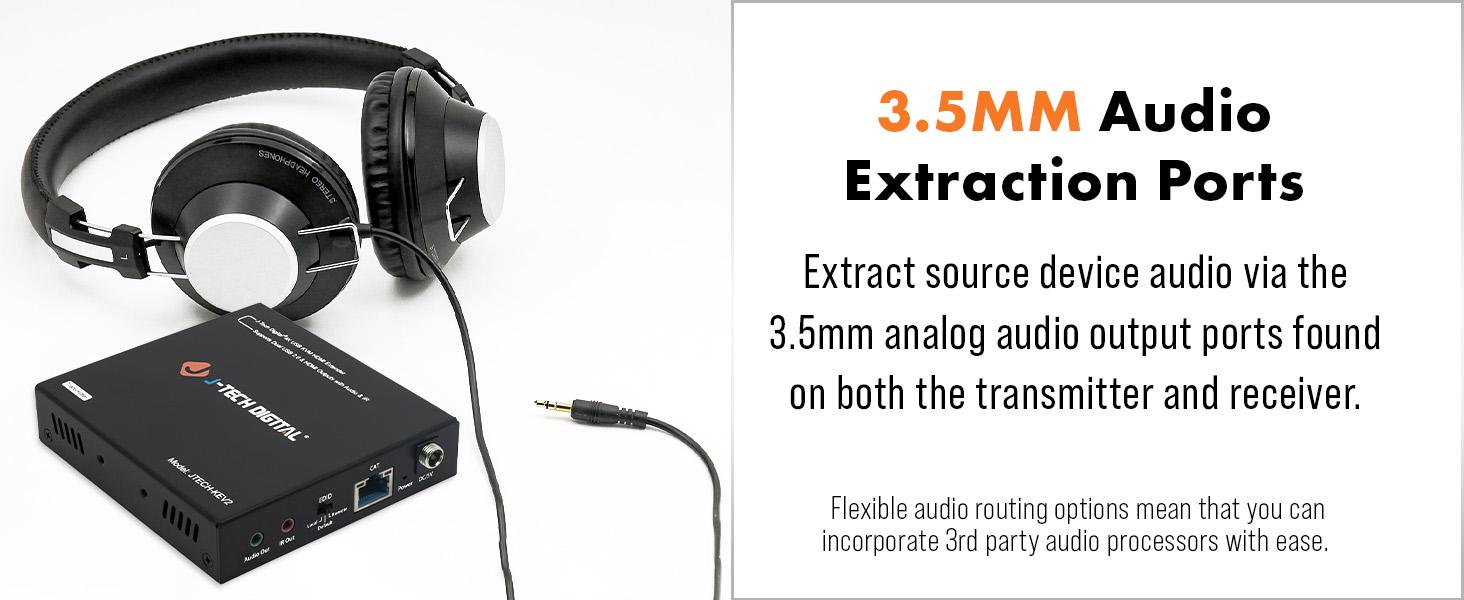

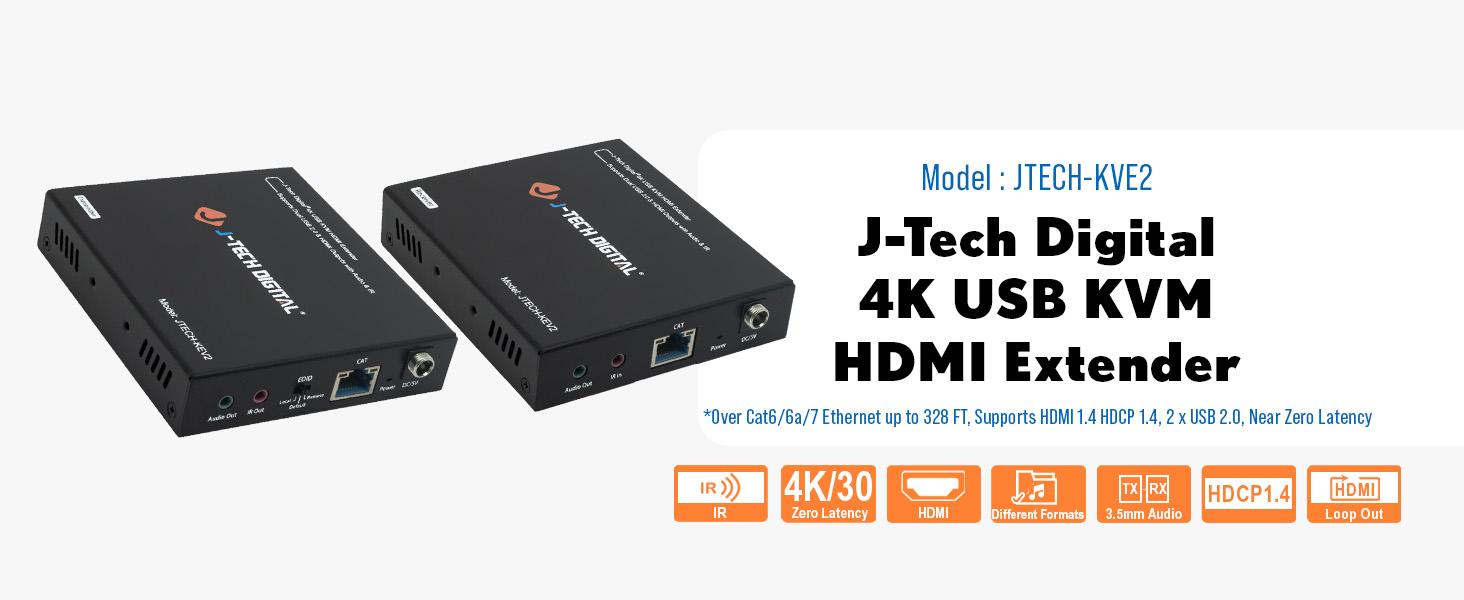

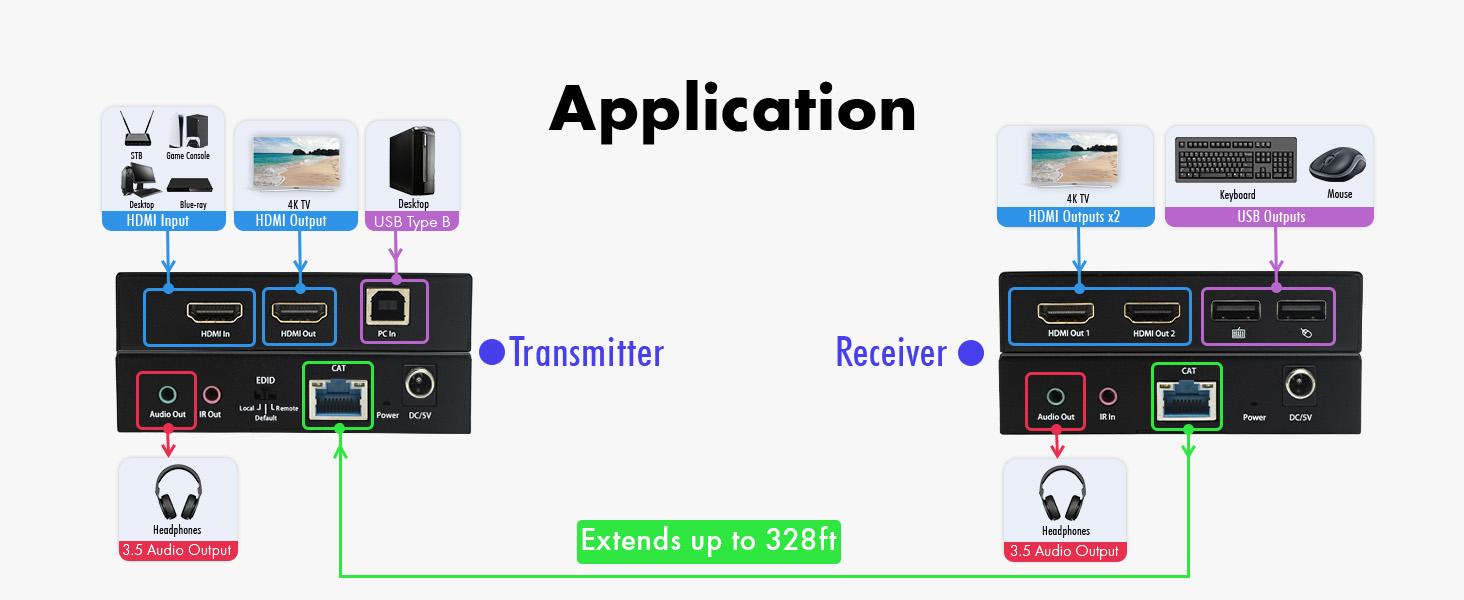

The J-Tech Digital JTECH-KVE2 HDMI & USB 1.0 KVM extender allows users to extend USB keyboard, mouse and HDMI signals up to 328 feet over CAT6 ethernet cable with near zero latency. This allows users to control a computer (or USB device) remotely up to 300+ feet away. Connect two remote HDMI displays to the receiver’s dual HDMI output ports and one local HDMI display to the transmitter’s local loop HDMI output port for flexible monitoring options. Extract source audio via the 3.5mm analog audio output ports found on both the transmitter and receiver so that users can route audio to a 3rd party audio processor/amplifier.
Need to control multiple sources/computers? Check out the J-Tech Digital JTECH-KV41 4-Port HDMI USB KVM Switch (ID:406) for more details.
Features:
- • Supports USB 1.0, HDMI 1.4 & HDCP 1.4

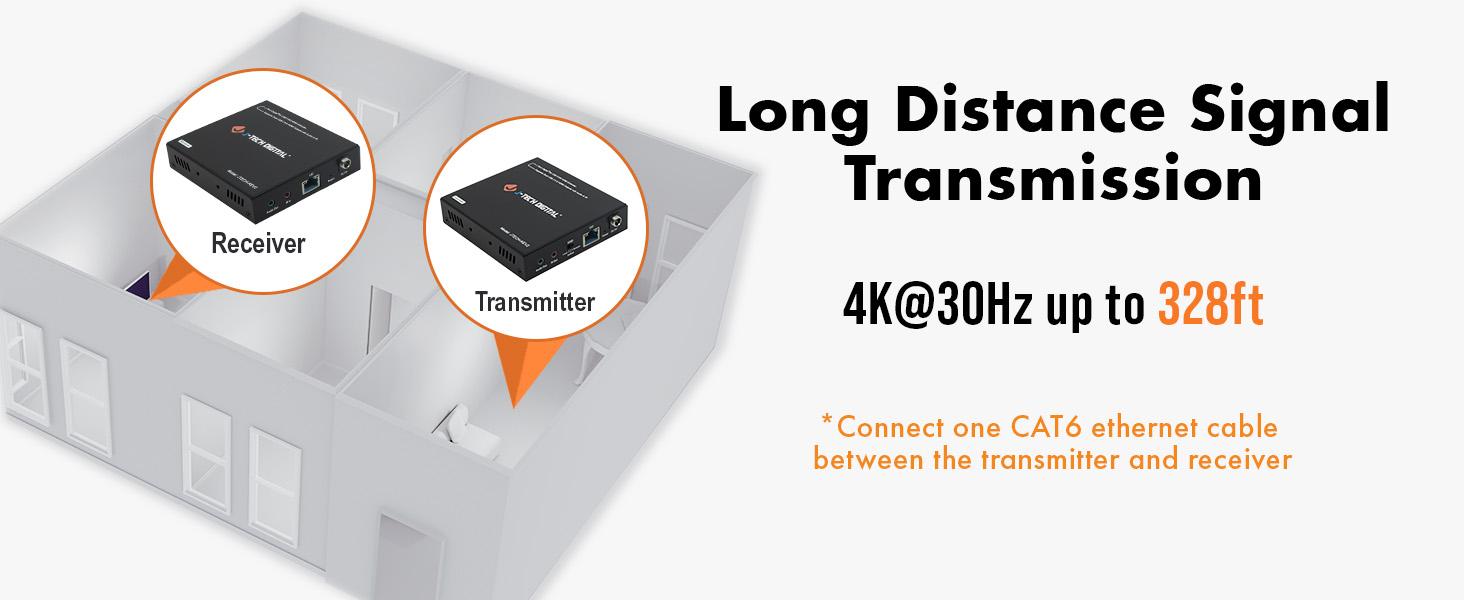

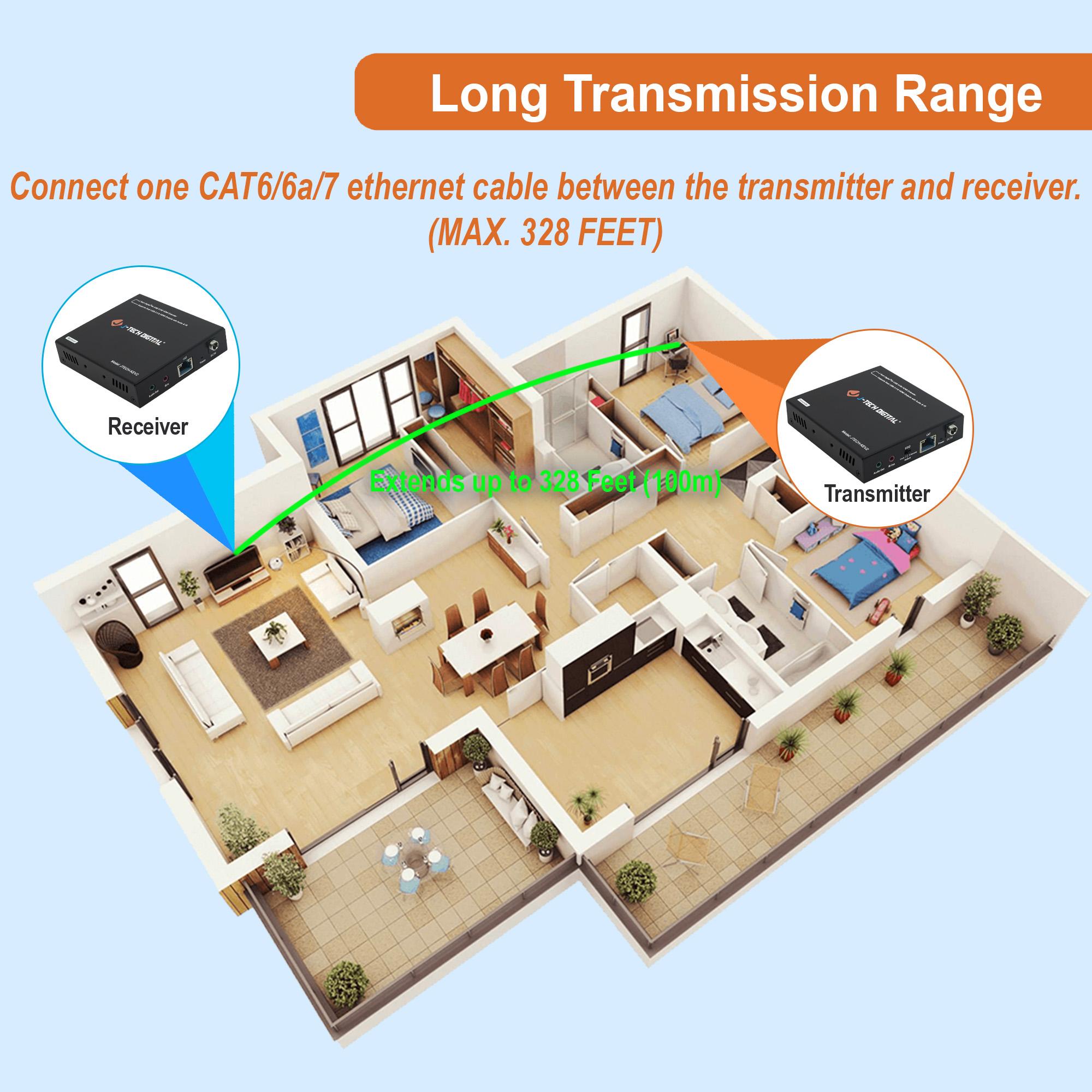

- • Transmit up to 328 FT / 100M over CAT6
- • 3.5mm Analog Audio Out on Transmitter & Receiver
- • Dual HDMI Output on Receiver
- • HDMI Loop Output Port on Transmitter

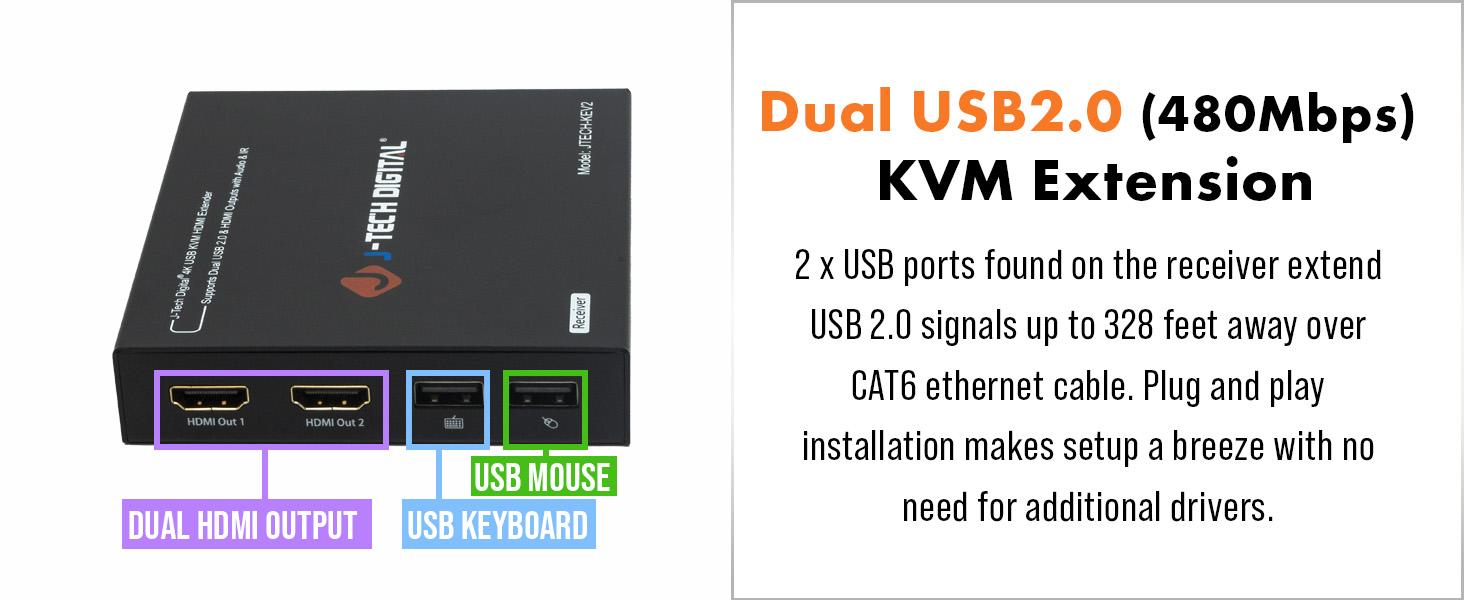

- • 2 USB 1.0 Type-A ports on Receiver
Specifications:

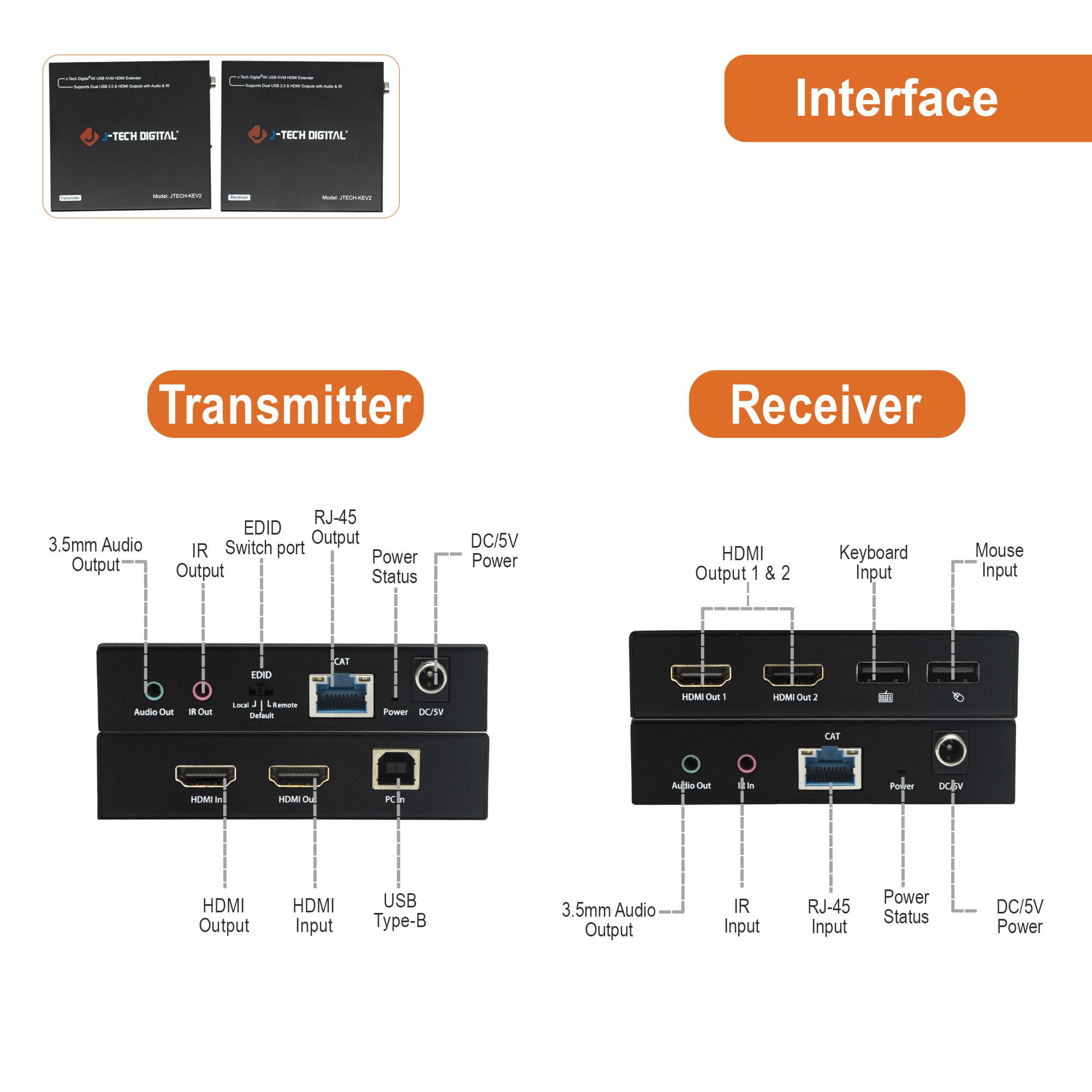

- Input Ports –
- • (1) TX – 1 x HDMI In | 1 x USB 1.0 Type-B
- • (2) RX – 1 x HDMI | 1 x RJ-45 | 1 x IR In | 2 x USB 1.0 Type-A
- Output Ports –
- • (1) TX – 1 x HDMI Out (Pass-thru) | 1 x RJ-45 | 1 x IR Out | 1 x 3.5mm Audio Out
- • (2) RX – 2 x HDMI Out | 1 x 3.5mm Audio Out
- • Supported Resolutions – Up to 4K@30Hz
- • Transmission Distance – 328 FT / 100M over CAT6 Solid Copper
- • Supported Audio Formats – PCM, LPCM, Dolby Digital, DTS
- • Power Supply – Input: 100-240VAC, 50/60Hz | Output: 5VDC 2A

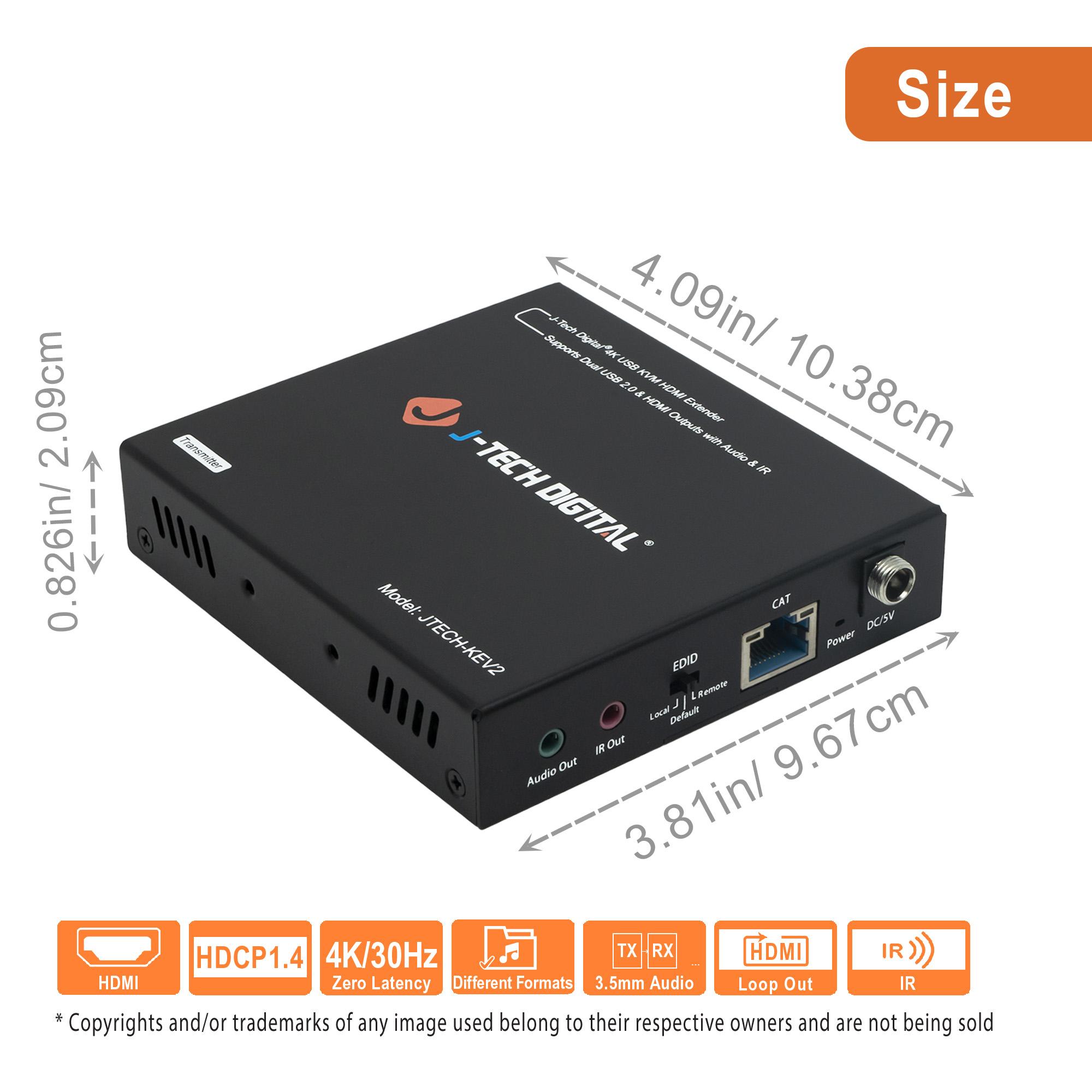

- • Dimensions (L x W x H) – 5.12 in x 3.94 in x 0.87 in

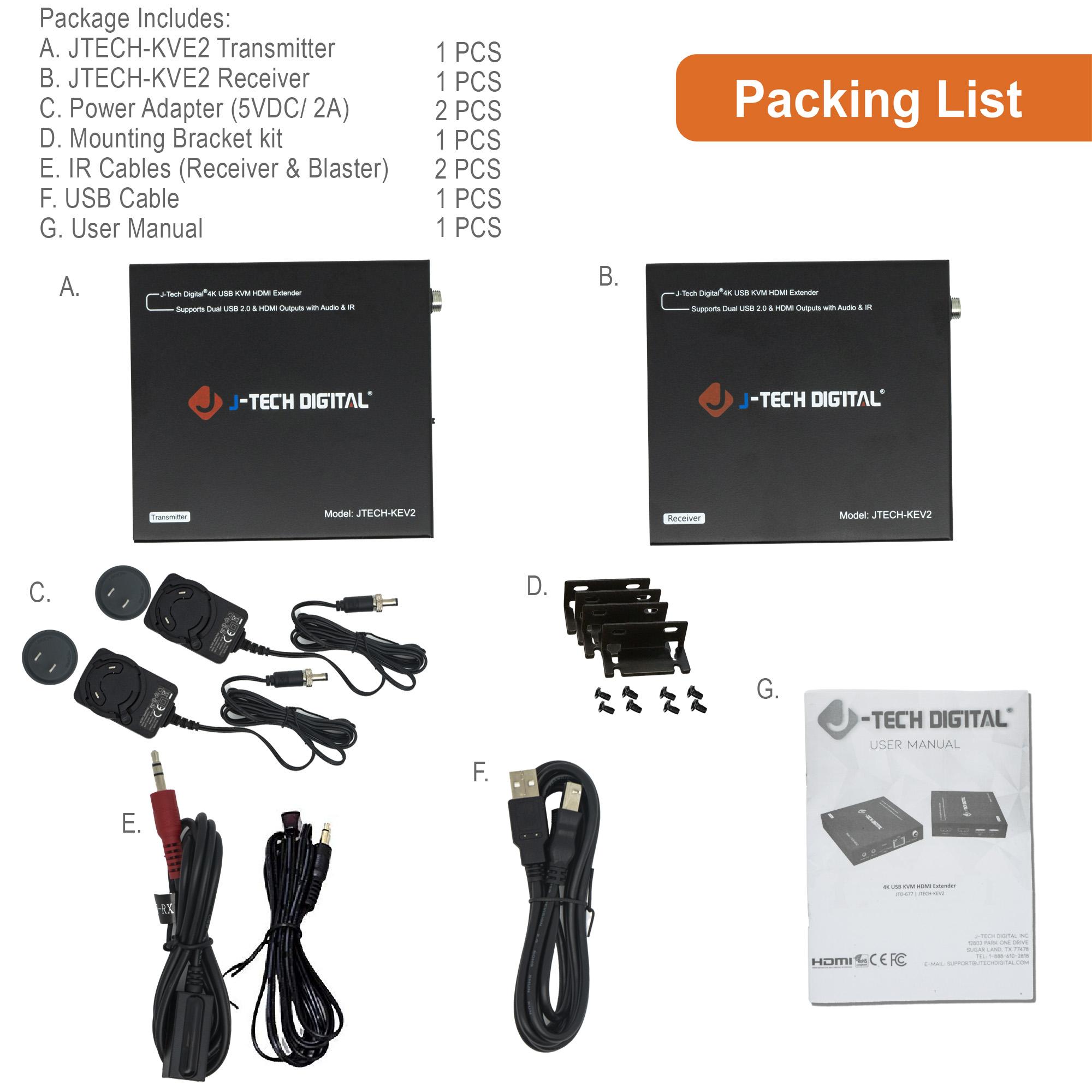

Package Contents:
- • (1) x JTECH-KVE2 Extender Set (Transmitter + Receiver)
- • (2) x Power Supply (5VDC 2A)
- • (2) x IR Cables (Transmitter + Receiver)
- • (1) x User Manual
- • (1) x USB Cable
